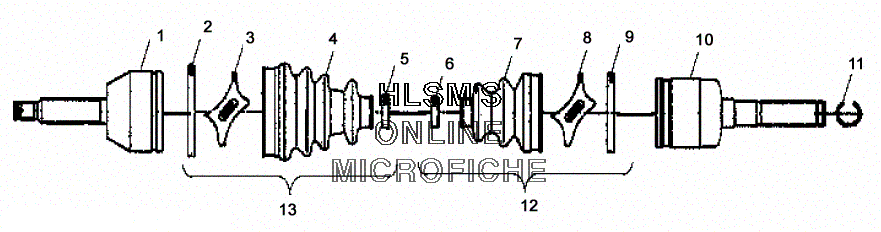

DRIVESHAFT - REAR для Polaris MAGNUM 325 4X4 (A01CD32AA) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
01380148 DRIVESHAFT, VISCO (LEFT)DRIVESHAFT, VISCO (LEFT)
-
01380149 DRIVESHAFT, VISCO (RIGHT)DRIVESHAFT, VISCO (RIGHT)
-
11350063 JOINT, CVJOINT, CV
-
21350062 CLAMP, LARGE (76.5 MM)CLAMP, LARGE (76.5 MM)
-
31350046 GREASE, SHAFT 30G BTB (REAR)GREASE, SHAFT 30G BTB (REAR)
-
43260114 BOOT, CV JOINTBOOT, CV JOINT
-
51350061 CLAMP, SMALL (25.0 MM)CLAMP, SMALL (25.0 MM)
-
61350057 CLAMP, SMALL (23.0 MM)CLAMP, SMALL (23.0 MM)
-
71350058 BOOTBOOT
-
81350059 GREASEGREASE
-
91350060 CLAMP, LARGE (66.5 MM)CLAMP, LARGE (66.5 MM)
-
101350055 PLUNGING, JOINT SHORT (INCL. 11)PLUNGING, JOINT SHORT (INCL. 11)
-
111350054 SPRING, RINGSPRING, RING
-
122201972 BOOT, KIT (GEAR SIDE) (INCL. 6-9)BOOT, KIT (GEAR SIDE) (INCL. 6-9)
-
132201630 BOOT, KIT (WHEEL SIDE) (INCL. 2-5)BOOT, KIT (WHEEL SIDE) (INCL. 2-5)
