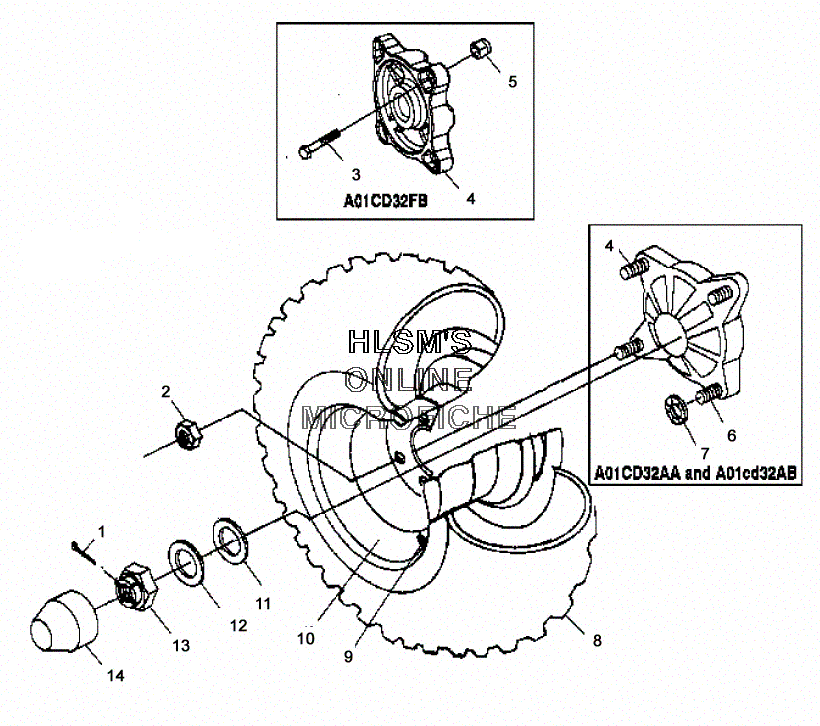

WHEEL - REAR для Polaris MAGNUM 325 4X4 (A01CD32AA) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
17661404 PIN, COTTERPIN, COTTER
-
27542714 NUT, WHEELNUT, WHEEL
-
45131777 HUB, WHEEL LG.FLANGE (REAR)HUB, WHEEL LG.FLANGE (REAR)
-
67512673 BOLT, WHEELBOLT, WHEEL
-
77670081 PUSHNUT, BOLTPUSHNUT, BOLT
-
85411710 TIRE, TITAN (24X11.5-10)TIRE, TITAN (24X11.5-10)
-
91525017 VALVE, RIMVALVE, RIM
-
101520183-117 RIM (REAR, 8.5/10, SILVER)RIM (REAR, 8.5/10, SILVER)
-
117555745 WASHERWASHER
-
127555796 WASHER, CONEWASHER, CONE
-
137543005 NUT, CASTLENUT, CASTLE
-
145411164 DUSTCOVER, HUBDUSTCOVER, HUB
