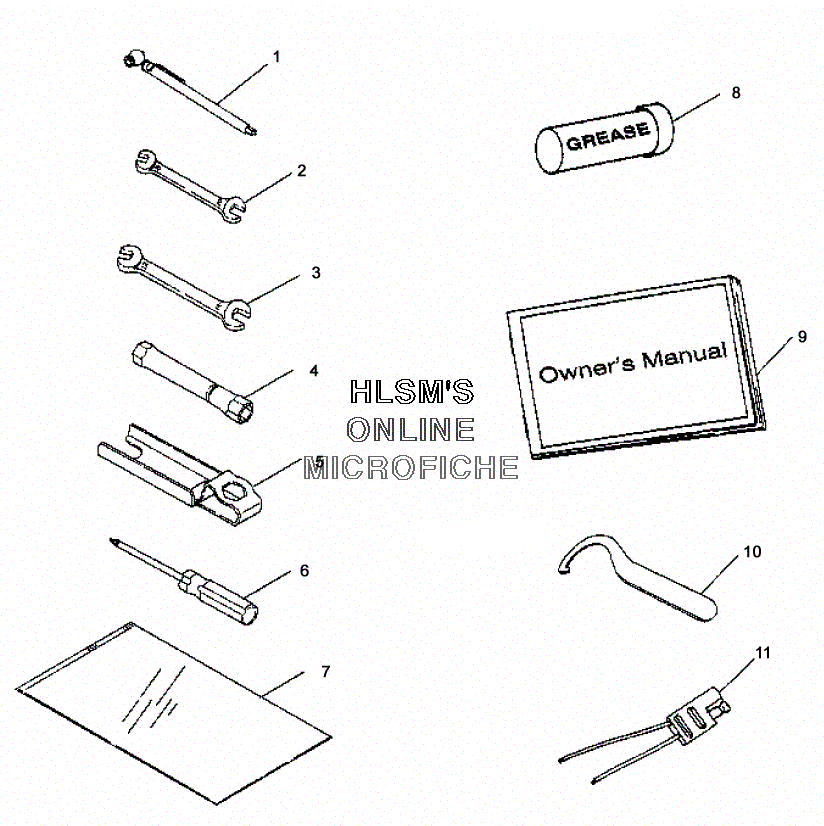

TOOL KIT для Polaris MAGNUM 325 4X4 (A01CD32AA) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
03086485 TOOL, KIT (INCL. 2-7)TOOL, KIT (INCL. 2-7)
-
12870725 GAUGE, TIRE PRESSUREGAUGE, TIRE PRESSURE
-
23085001 WRENCH, OPEN (8-10MM)WRENCH, OPEN (8-10MM)
-
33085002 WRENCH, OPEN (12-14MM)WRENCH, OPEN (12-14MM)
-
43085567 WRENCH, BOXWRENCH, BOX
-
53085569 ACCESS.TOOL, KIT (WRENCH HANDLE)ACCESS.TOOL, KIT (WRENCH HANDLE)
-
63082657 SCREWDRIVERSCREWDRIVER
-
72682572 POUCH, TOOLKIT (9'')POUCH, TOOLKIT (9'')
-
82871515 GREASE, U-JOINT (3 OZ.)(24)GREASE, U-JOINT (3 OZ.)(24)
-
99915754 MANUAL, OWNERSMANUAL, OWNERS
-
99916401 SUPPLEMENT, OWNER'S MANUALSUPPLEMENT, OWNER'S MANUAL
-
102871095-067 WRENCH, SPANNERWRENCH, SPANNER
-
112460442 PIGTAIL, POWERPIGTAIL, POWER
