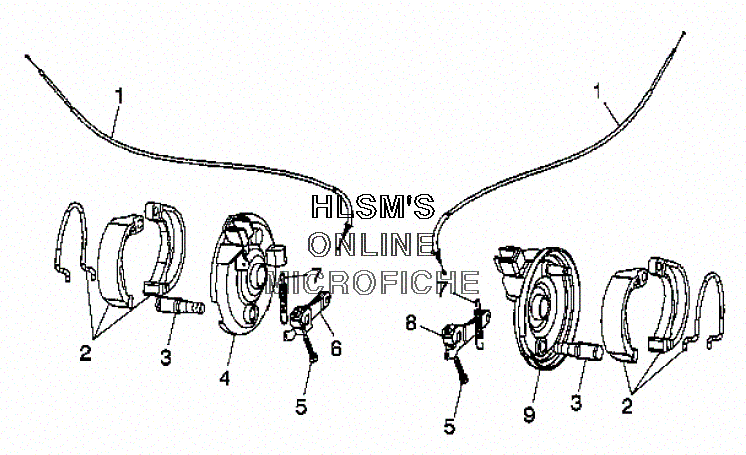

BRAKE - FRONT для Polaris SCRAMBLER 50 (A01EA05CA) - 2001 года выпуска
-
№АртикулНазвание
-
10450426 CABLE, BRAKE (FRONT)CABLE, BRAKE (FRONT)
-
20450422 SHOE, BRAKE (FRONT)SHOE, BRAKE (FRONT)
-
30450421 SHAFT, CAM BRAKE (FRONT)SHAFT, CAM BRAKE (FRONT)
-
40450419 PLATE, BRAKE (FRONT/RIGHT)PLATE, BRAKE (FRONT/RIGHT)
-
50450425 BOLT, HEXBOLT, HEX
-
60450420 ARM, BRAKE (FRONT/RIGHT)ARM, BRAKE (FRONT/RIGHT)
-
70450424 SPRING, RETURN (FRONT)SPRING, RETURN (FRONT)
-
80450418 ARM, BRAKE (FRONT/LEFT)ARM, BRAKE (FRONT/LEFT)
-
90450417 PLATE, BRAKE (FRONT/LEFT)PLATE, BRAKE (FRONT/LEFT)
