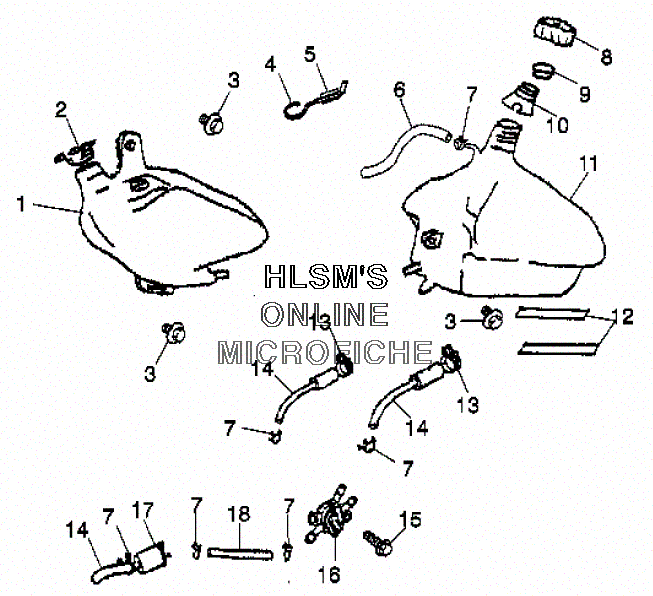

OIL TANK / FUEL TANK для Polaris SCRAMBLER 50 (A01EA05CA) - 2001 года выпуска
-
№АртикулНазвание
-
10450370 OIL TANK, YOUTH KITOIL TANK, YOUTH KIT
-
20450371 CAP, OIL TANKCAP, OIL TANK
-
30450340 BOLT, HEXAGONBOLT, HEXAGON
-
40450373 HOOK, FUEL TANKHOOK, FUEL TANK
-
50450826-035 LINE, FUELLINE, FUEL
-
60450363-430 HOSE, FUEL OVERFILLHOSE, FUEL OVERFILL
-
70450054 CLIPCLIP
-
80450359 CAP, FUEL TANKCAP, FUEL TANK
-
90450375 FILM, BREATHERFILM, BREATHER
-
100450827 BOOT, TANK NECKBOOT, TANK NECK
-
110450358 TANK, FUELTANK, FUEL
-
120450632 MAT, RUBBER FUEL TANKMAT, RUBBER FUEL TANK
-
130450361 CLIPCLIP
-
140450825 HOSEHOSE
-
150450701 BOLT, HEX WASHERBOLT, HEX WASHER
-
160450366 MANUAL FUEL CUP, ASSY.MANUAL FUEL CUP, ASSY.
-
170450365 FILTER, FUEL ASSY.FILTER, FUEL ASSY.
-
180450363-150 HOSEHOSE
