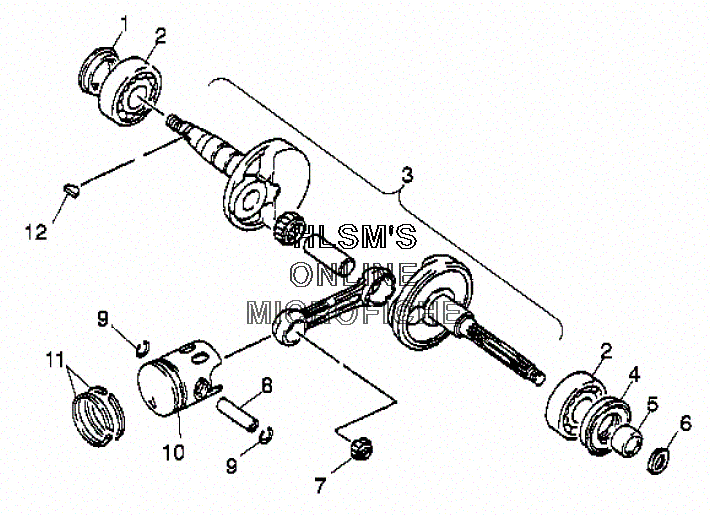

CRANKSHAFT W/ CYLINDER для Polaris SCRAMBLER 50 (A01EA05CA) - 2001 года выпуска
-
№АртикулНазвание
-
10450018 SEAL OILSEAL OIL
-
20450016 BEARING, BALL RADLBEARING, BALL RADL
-
30450013 CRANKSHAFTCRANKSHAFT
-
40450017 SEAL, OILSEAL, OIL
-
50450019 COLLAR, CRANK (LEFT)COLLAR, CRANK (LEFT)
-
60450654 WASHER, PLAINWASHER, PLAIN
-
70450028 BEARING, NEEDLEBEARING, NEEDLE
-
80450022 PIN, PISTONPIN, PISTON
-
90450026 CLIP, PISTON PINCLIP, PISTON PIN
-
100450801 PISTON, 50CC (STD)PISTON, 50CC (STD)
-
100450652 PISTON, 50CC (.25 MM O/S) (OPT)PISTON, 50CC (.25 MM O/S) (OPT)
-
100450733 PISTON, 50CC (.50 MM O/S) (OPT)PISTON, 50CC (.50 MM O/S) (OPT)
-
110450024 RING, PISTON (STD)RING, PISTON (STD)
-
110450810 RING SET (50CC .25MM O/S) (OPT)RING SET (50CC .25MM O/S) (OPT)
-
110450734 RING SET (50CC .50MM O/S) (OPT)RING SET (50CC .50MM O/S) (OPT)
-
120450015 KEY, SEMICYCLE 90471 111 000KEY, SEMICYCLE 90471 111 000
