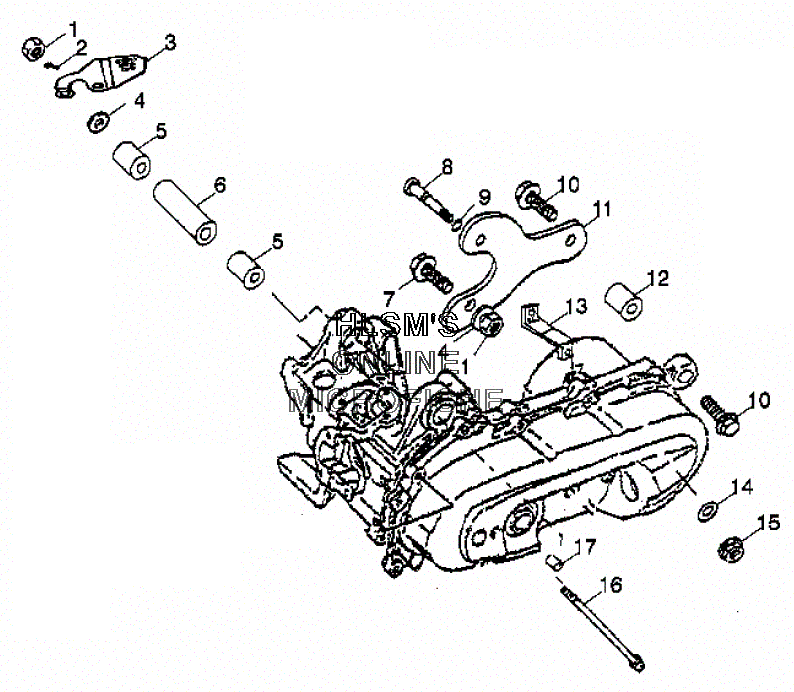

MOUNTING - ENGINE для Polaris SCRAMBLER 50 (A01EA05CA) - 2001 года выпуска
-
№АртикулНазвание
-
10450271 NUT, HEXAGONNUT, HEXAGON
-
20450298 BOLT, HEXAGONBOLT, HEXAGON
-
30450819 BRACKETBRACKET
-
40450286 WASHERWASHER
-
50450284 BUSHING, RUBBERBUSHING, RUBBER
-
60450283 TUBE, FIXED ENGINE (FRONT)TUBE, FIXED ENGINE (FRONT)
-
70450270 BOLT, HEXAGONBOLT, HEXAGON
-
80450266 SHAFT, FIXED ENGINE BRACKET 45110 131SHAFT, FIXED ENGINE BRACKET 45110 131
-
90450709 O-RINGO-RING
-
100450684 BOLT, HEX WASHERBOLT, HEX WASHER
-
110450269 BRACKET, ENGINEBRACKET, ENGINE
-
120450132 BUSHING, RUBBERBUSHING, RUBBER
-
130450287 PLATE, FIXED OIL TANKPLATE, FIXED OIL TANK
-
140450192 WASHERWASHER
-
150450268 NUT, FLANGENUT, FLANGE
-
160450285 BOLT, HEXAGONBOLT, HEXAGON
-
170450278 COLLARCOLLAR
