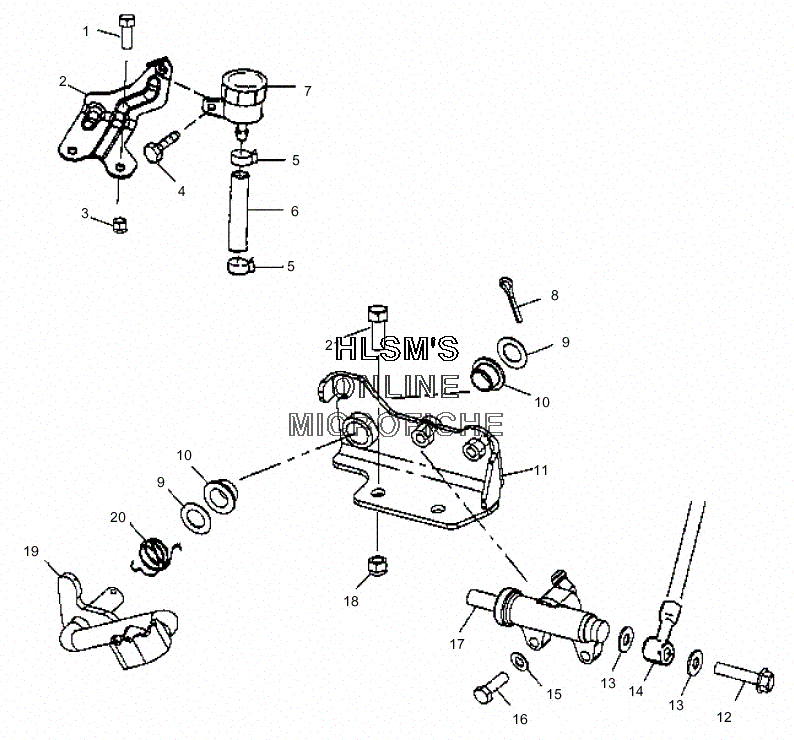

BRAKE - REAR MASTER CYLINDER для Polaris XPLORER 400 (A01CG38CA) - 2001 года выпуска
-
№АртикулНазвание
-
17512113 SCREWSCREW
-
25244091-067 BRACKET, RESERVOIR MOUNT (BLACK)BRACKET, RESERVOIR MOUNT (BLACK)
-
37542122 NUT, LOCKNUT, LOCK
-
37542122 NUT, LOCKNUT, LOCK
-
47512208 SCREWSCREW
-
57080003 CLAMP, HOSECLAMP, HOSE
-
61910438 HOSE, RES.HOSE, RES.
-
71930854 RESERVOIR ASSY., BRAKE (REAR)RESERVOIR ASSY., BRAKE (REAR)
-
87661401 COTTER PINCOTTER PIN
-
97555919 WASHERWASHER
-
105431107 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
111910375-067 MOUNT, BRAKE CDS (BLACK)MOUNT, BRAKE CDS (BLACK)
-
121910499 BOLT, BANJOBOLT, BANJO
-
135410988 SEALSEAL
-
157552801 LOCK WASHERLOCK WASHER
-
167515179 SCREWSCREW
-
171910311 BRAKE MASTER CYLINDER, FOOT BANJOBRAKE MASTER CYLINDER, FOOT BANJO
-
187542324 NUTNUT
-
191910376-067 BRAKE ROD, CDS GEN 4 (BLACK)BRAKE ROD, CDS GEN 4 (BLACK)
-
207041750 SPRING, TORSION BRAKESPRING, TORSION BRAKE
-
217515321 BOLTBOLT
