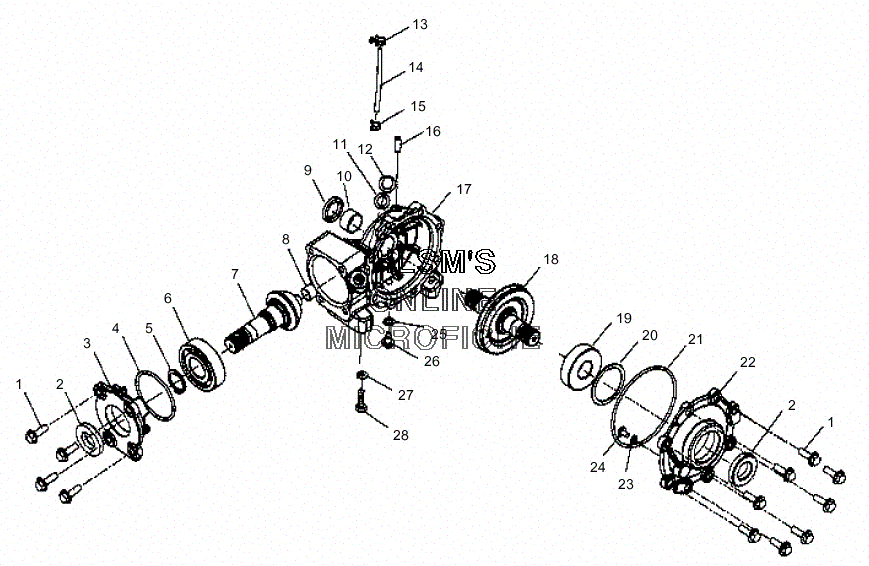

DIFFERENTIAL - FRONT для Polaris XPLORER 400 (A01CG38CA) - 2001 года выпуска
-
№АртикулНазвание
-
1A1341323 GEARCASE, ASSY. (FRONT) (INCL. 1-12,16-26)GEARCASE, ASSY. (FRONT) (INCL. 1-12,16-26)
-
13233252 SCREWSCREW
-
23233248 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
33233701 INPUT COVER, FRONT HOUSINGINPUT COVER, FRONT HOUSING
-
43233700 O-RINGO-RING
-
53233699 RING, RETAININGRING, RETAINING
-
63233589 BEARING, BALLBEARING, BALL
-
73233726 PINION, INPUT (14 TEETH)PINION, INPUT (14 TEETH)
-
83233541 BUSHING, GARLOCKBUSHING, GARLOCK
-
93233319 SEALSEAL
-
103233697 BUSHINHG, GARLOCKBUSHINHG, GARLOCK
-
113233324 WASHERWASHER
-
123233711 PLUG, OIL FILLPLUG, OIL FILL
-
137080756 CLIP, SNAP-INCLIP, SNAP-IN
-
148450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)FUEL LINE (1/4 ID 1525 CM.) (OPT)
-
157080307 CLAMPCLAMP
-
163233524 TUBE, VENTTUBE, VENT
-
173233696 GEARCASEGEARCASE
-
183233725 SHAFT, OUTPUT (29 TEETH)SHAFT, OUTPUT (29 TEETH)
-
193233020 BEARINGBEARING
-
203233554 SHIM (OPT)SHIM (OPT)
-
213233693 O-RINGO-RING
-
223233724 COVER, OUTPUTCOVER, OUTPUT
-
233233583 SHIM .450 X .265 (OPT)SHIM .450 X .265 (OPT)
-
243233582 THRUST BUTTONTHRUST BUTTON
-
253233254 PLUG, WASHERPLUG, WASHER
-
263233253 PLUG, HEX FLANGEPLUG, HEX FLANGE
-
277512492 SCREWSCREW
-
287552603 WASHERWASHER
