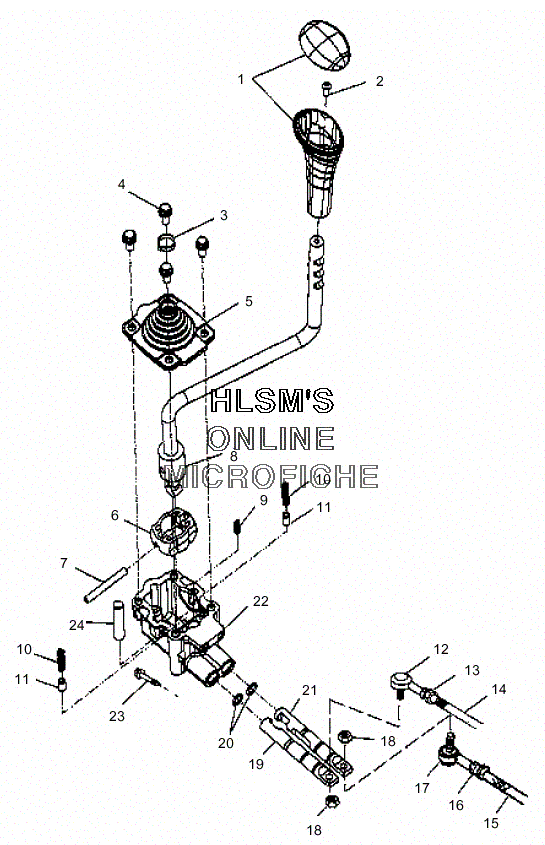

GEAR SELECTOR для Polaris XPLORER 400 (A01CG38CA) - 2001 года выпуска
-
№АртикулНазвание
-
1A1341289 GEAR, SELECTOR H/L/R (INCL. 1-11,19-22,24)GEAR, SELECTOR H/L/R (INCL. 1-11,19-22,24)
-
13233195 GEAR, SELECT KNOB ASSY. (BLACK)GEAR, SELECT KNOB ASSY. (BLACK)
-
27512024 SCREWSCREW
-
33233131 STRAP, WIRESTRAP, WIRE
-
43233649 SCREWSCREW
-
53233648 COVER, GEAR SELECTOR BOOTCOVER, GEAR SELECTOR BOOT
-
63233646 PLASTIC, SPHEREPLASTIC, SPHERE
-
73233645 PIN, DOWELPIN, DOWEL
-
83233647 GEAR, SELECTOR ROD SUB ASSY.GEAR, SELECTOR ROD SUB ASSY.
-
93233643 SPRING, CENTERINGSPRING, CENTERING
-
103233642 SPRING, DETENTSPRING, DETENT
-
113233060 BULLET, DETENTBULLET, DETENT
-
127061013 ROD END, 6MM. (LEFT)ROD END, 6MM. (LEFT)
-
137546702 NUTNUT
-
145020743 ROD, SHIFT LINKAGEROD, SHIFT LINKAGE
-
155132042 ROD, SHIFT LINKAGE .31X11.75ROD, SHIFT LINKAGE .31X11.75
-
167546701 NUTNUT
-
177061014 ROD END, 6MM. (RIGHT)ROD END, 6MM. (RIGHT)
-
187546707 NUT, METRICNUT, METRIC
-
193233639 SLIDE, LOWSLIDE, LOW
-
203233076 O-RINGO-RING
-
213233640 SLIDE, HIGH/REVSLIDE, HIGH/REV
-
223233641 GEAR, SELECTOR BODYGEAR, SELECTOR BODY
-
237512232 BOLTBOLT
-
243233644 PIN, DOWELPIN, DOWEL
