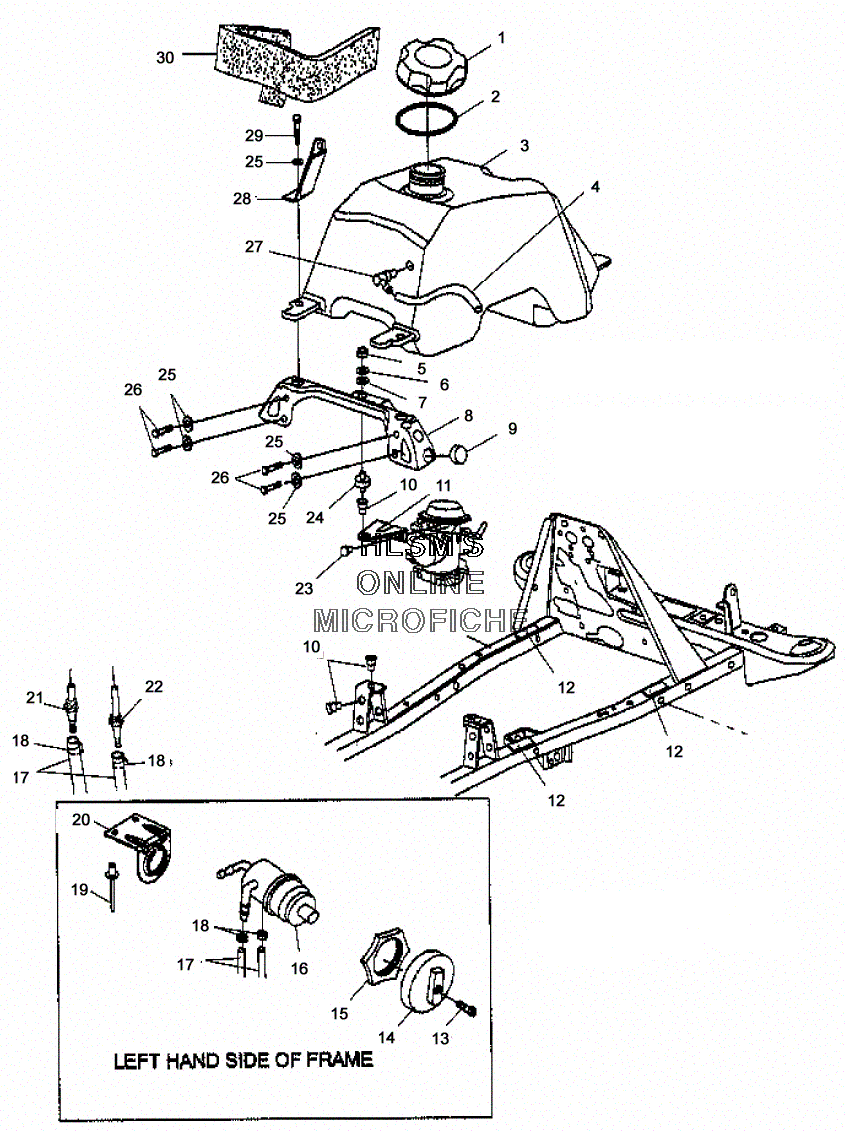

FUEL TANK AND CARBURETOR MOUNTING для Polaris XPEDITION 325 (A02CK32AA) - 2002 года выпуска
-
№АртикулНазвание
-
15433687 CAP,GAS TANK (INCLUDES GASKET)CAP,GAS TANK (INCLUDES GASKET)
-
25812123 GASKET,GAS CAPGASKET,GAS CAP
-
32520174 TANK,FUEL ASSY. (INCL. 21,22,27)TANK,FUEL ASSY. (INCL. 21,22,27)
-
48360009-600 FUEL LINE,1/8 ID,600 CM.FUEL LINE,1/8 ID,600 CM.
-
57542105 NUT HEXNUT HEX
-
67552605 WASHERWASHER
-
77558201 WASHER, FLATWASHER, FLAT
-
85245672-067 BRKT-CARB SUPPORT, (BLACK)BRKT-CARB SUPPORT, (BLACK)
-
95410414 BUMPER, RUBBERBUMPER, RUBBER
-
107547069 NUTSERT,HEXNUTSERT,HEX
-
115245674-067 MOUNT CARB 325, (BLACK)MOUNT CARB 325, (BLACK)
-
125810317 PAD,FUELTANK BRKT.PAD,FUELTANK BRKT.
-
137517505 SCREWSCREW
-
145432559 KNOB,FUEL VALVEKNOB,FUEL VALVE
-
155432733 NUT,FUELVALVE,ATVNUT,FUELVALVE,ATV
-
167052161 VALVE,3-WAYVALVE,3-WAY
-
178450040-600 FUEL LINE,1/4 ID(600 CM.)FUEL LINE,1/4 ID(600 CM.)
-
187080003 CLAMP,HOSECLAMP,HOSE
-
197661637 RIVET,INTERLOCK,ZRIVET,INTERLOCK,Z
-
205240577-067 BRKT,FUELVALVE, (BLACK)BRKT,FUELVALVE, (BLACK)
-
217052146 FITTING,FUEL OUT,MAIN,YFITTING,FUEL OUT,MAIN,Y
-
227052149 FITTING,FUEL OUT,RES.,ZFITTING,FUEL OUT,RES.,Z
-
233084205 SCREW AND WASHERSCREW AND WASHER
-
243110050 MOUNT,CARB.MOUNT,CARB.
-
257555859 WASHER, FLATWASHER, FLAT
-
267512276 BOLTBOLT
-
275431053 VENT, TANKVENT, TANK
-
287512277 BOLTBOLT
-
295811899 FOAM-SEAL,17''FOAM-SEAL,17''
