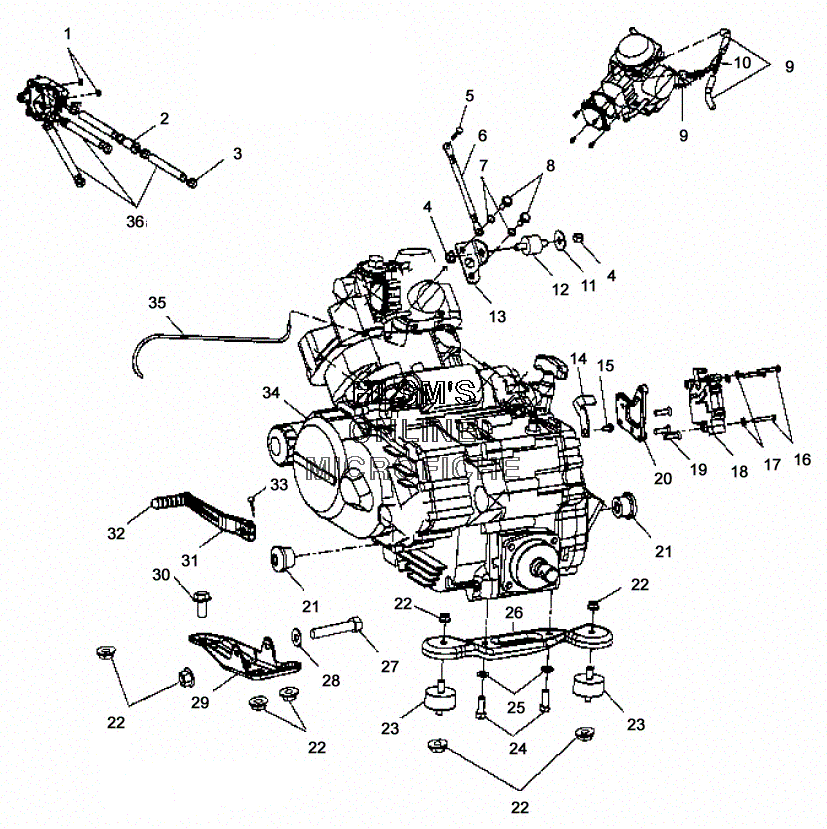

MOUNTING - ENGINE для Polaris XPEDITION 325 (A02CK32AA) - 2002 года выпуска
-
№АртикулНазвание
-
17546601 NUT, NYLOKNUT, NYLOK
-
22530009 FILTER,SMALL,IN-LINE,FILTER,SMALL,IN-LINE,
-
37080003 CLAMP,HOSECLAMP,HOSE
-
47547089 NUT-3/8-16 FLG LOCK-YNUT-3/8-16 FLG LOCK-Y
-
57517386 SCREW,SCREW,
-
64010132 CABLE,GND-ENGINECABLE,GND-ENGINE
-
77552901 LOCK WASHERLOCK WASHER
-
87512315 BOLTBOLT
-
98450003-1525 FUEL LINE,1/4 ID(1525 CM.)FUEL LINE,1/4 ID(1525 CM.)
-
107052075 FITTING, TEEFITTING, TEE
-
117555823 WASHERWASHER
-
123021180 MNT,ENG.,3/8-16X.66,3-TABMNT,ENG.,3/8-16X.66,3-TAB
-
135244517-067 MOUNT,ENGINE,TOP MAN, (BLACK)MOUNT,ENGINE,TOP MAN, (BLACK)
-
145245124-067 LEVER-LOCKOUT,REVERSE, (BLACK)LEVER-LOCKOUT,REVERSE, (BLACK)
-
157517653 SCREWSCREW
-
167510504 SCREWSCREW
-
177555746 BURR,RIVETBURR,RIVET
-
184010435 ACTUATOR-REVERSEACTUATOR-REVERSE
-
197517652 SCREWSCREW
-
205132519 MNT,LOCKOUT ACTUATOR,MACHMNT,LOCKOUT ACTUATOR,MACH
-
215411927 MOUNT,RUBBER,ENGINE,MANMOUNT,RUBBER,ENGINE,MAN
-
227547108 NUTNUT
-
233110045 MOUNT,RUBBER,REARMOUNT,RUBBER,REAR
-
247512492 SCREWSCREW
-
257552603 WASHERWASHER
-
265242984-067 MOUNT,5 SPEED LWR,REAR, (BLACK).MOUNT,5 SPEED LWR,REAR, (BLACK).
-
277515406 SCREW CAPSCREW CAP
-
287555806 WASHERWASHER
-
295242905-067 MOUNT-ENGINE LOWER,MANUAL, (BLACK)MOUNT-ENGINE LOWER,MANUAL, (BLACK)
-
307517388 SCREW,SCREW,
-
315631054-067 LEVER,SHIFT,325 5 SPD, (BLACK)LEVER,SHIFT,325 5 SPD, (BLACK)
-
325411364 PAD,SHIFT PEDALPAD,SHIFT PEDAL
-
337512225 SCREWSCREW
-
343086945 ENGINE,ES32PLE03 (SEE NOTE)ENGINE,ES32PLE03 (SEE NOTE)
-
358450061-100 HOSEHOSE
-
368450040-60 HOSEHOSE
