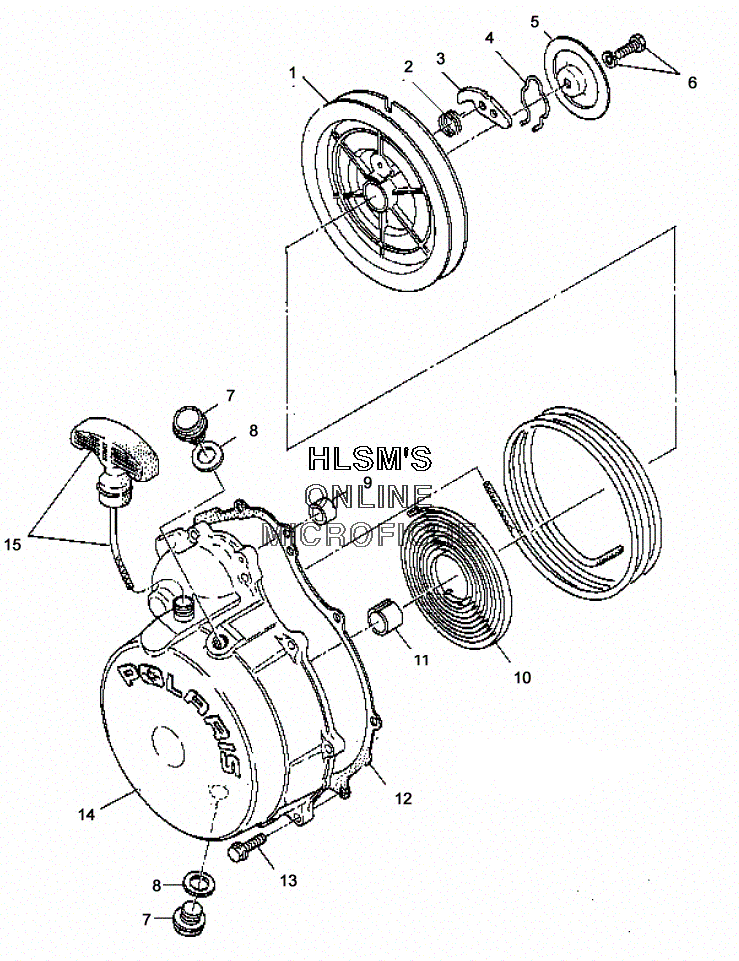

STARTER - RECOIL для Polaris XPEDITION 325 (A02CK32AA) - 2002 года выпуска
-
№АртикулНазвание
-
13084822 REEL,STARTERREEL,STARTER
-
23083463 SPRING, RETURNSPRING, RETURN
-
33083378 RATCHETRATCHET
-
43083379 SPRING, FRICTIONSPRING, FRICTION
-
53086896 PLATE,FRICTIONPLATE,FRICTION
-
63086897 SCREW,SETSCREW,SET
-
73083453 PLUGPLUG
-
83082956 GASKETGASKET
-
93083669 BUSHING, STARTERBUSHING, STARTER
-
103083185 SPRINGSPRING
-
113084750 BUSHBUSH
-
123086898 GASKET,RECOILGASKET,RECOIL
-
133084877 BOLT,FLANGEBOLT,FLANGE
-
143086894 ASSY.,RECOIL (INCL. 1-6,9-11,14,15)ASSY.,RECOIL (INCL. 1-6,9-11,14,15)
-
143086895 CASE,STARTER (INCL. 11)CASE,STARTER (INCL. 11)
-
153085083 ROPE ASSY.ROPE ASSY.
