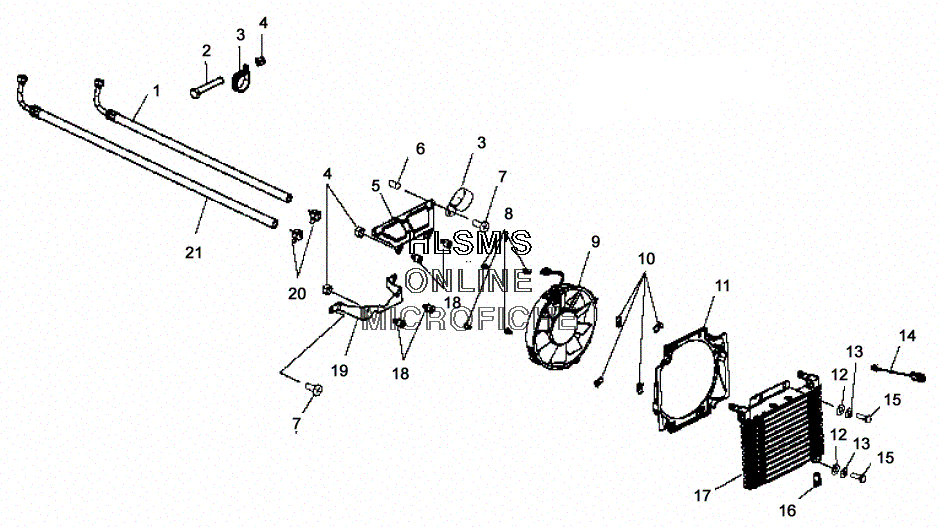

OIL COOLING SYSTEM для Polaris XPEDITION 325 (A02CK32AA) - 2002 года выпуска
-
№АртикулНазвание
-
15412085 HOSE-OIL COOLER,XPEDITIONHOSE-OIL COOLER,XPEDITION
-
27512163 SCREWSCREW
-
37080869 CLAMP-P,CUSHIONED,1.25'' I.D. (1CLAMP-P,CUSHIONED,1.25'' I.D. (1
-
47542122 NUT-LOCKNUT-LOCK
-
55245416-067 BRKT-OIL COOLER,TOP, (BLACK)BRKT-OIL COOLER,TOP, (BLACK)
-
67547069 NUTSERT,HEXNUTSERT,HEX
-
77515133 SCREWSCREW
-
87517659 SCREWSCREW
-
92410157 FAN,MOTORFAN,MOTOR
-
107670111 CLIP,U,ZYCLIP,U,ZY
-
115433353 SHROUD-FAN,ATVSHROUD-FAN,ATV
-
127558301 WASHERWASHER
-
137552801 LOCK WASHERLOCK WASHER
-
144010274 THERMISTERTHERMISTER
-
157512240 BOLTBOLT
-
167052244 VALVE-PLASTIC DRAINVALVE-PLASTIC DRAIN
-
171240074 COOLER-OILCOOLER-OIL
-
185411548 MOUNT,RUBBERMOUNT,RUBBER
-
191013519 BRKT,ASSY.,LOWER OIL COOLERBRKT,ASSY.,LOWER OIL COOLER
-
207080862 CLAMP-HOSE MUBEACLAMP-HOSE MUBEA
-
215412084 HOSE-OIL COOLER,XPEDITIONHOSE-OIL COOLER,XPEDITION
