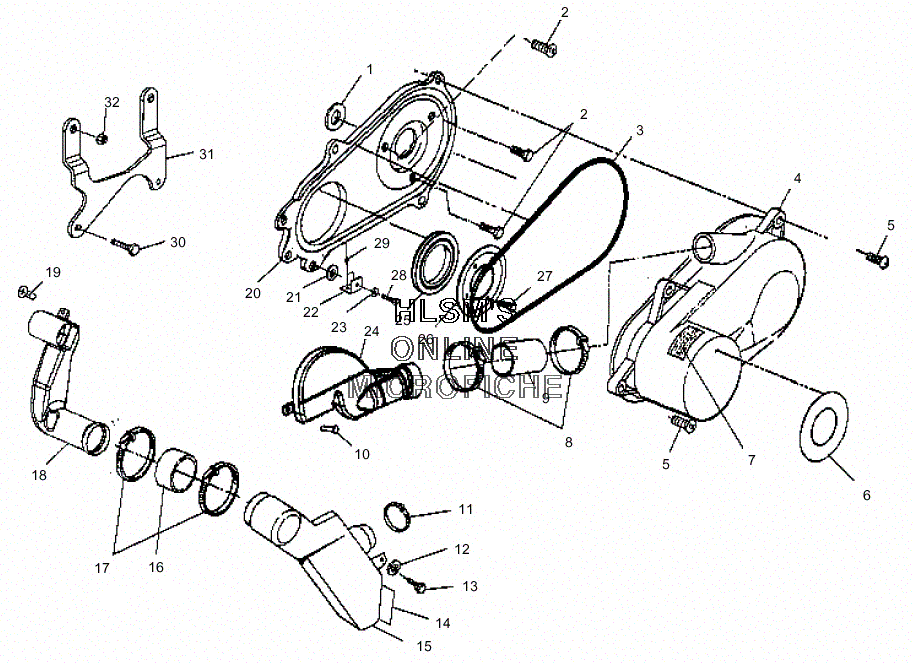

CLUTCH COVER для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска
-
№АртикулНазвание
-
15411553 SEAL,CLUTCH CVR,INNERSEAL,CLUTCH CVR,INNER
-
27517860 BOLT/RBR WASHER 1/4-20X1,ASM.(1BOLT/RBR WASHER 1/4-20X1,ASM.(1
-
35521301 SEAL,CLUTCHCOVERSEAL,CLUTCHCOVER
-
45433451-070 COVER,CLUTCH-OUTER,HV,BLKCOVER,CLUTCH-OUTER,HV,BLK
-
57512094 SCREW *SCREW *
-
67074782 DECAL,AUTO.TRANSMISSIONDECAL,AUTO.TRANSMISSION
-
77078689 DECAL,AUTO.TRANSMISSIONDECAL,AUTO.TRANSMISSION
-
87080761 STRAP,PANDUIT,14''STRAP,PANDUIT,14''
-
95411489 BOOT,DUCT,HI-FLOWBOOT,DUCT,HI-FLOW
-
107517916 SCR-1/4-20X3/4-TR/TX/TAP-MSCR-1/4-20X3/4-TR/TX/TAP-M
-
117080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
127555783 WASHERWASHER
-
137512018 SCREWSCREW
-
145811373 FOIL-TAPE,AIR BOXFOIL-TAPE,AIR BOX
-
155433258 DUCT,CLUTCH INLET,TRAIL BOSSDUCT,CLUTCH INLET,TRAIL BOSS
-
165411822 BOOT,CLUTCH AIR INLET,UPPERBOOT,CLUTCH AIR INLET,UPPER
-
177080492 STRAP,BLK,WEATHER-RESIST.STRAP,BLK,WEATHER-RESIST.
-
185433450 DUCT,CLUTCH INLETDUCT,CLUTCH INLET
-
197512084 SCREWSCREW
-
202201159 COVER,CLUTCH INNER 400 (INCL. 3,5,25,28)COVER,CLUTCH INNER 400 (INCL. 3,5,25,28)
-
217555932 WASHER,NYLONWASHER,NYLON
-
225242693-067 BRKT,CLUTCH COVER,BLKBRKT,CLUTCH COVER,BLK
-
237555935 WASHERWASHER
-
245434213 DUCT-AIR OUTLET,CLUTCHDUCT-AIR OUTLET,CLUTCH
-
255410749 SEAL,COVER CASESEAL,COVER CASE
-
265222877-067 BRKT,RETAINER SEALBRKT,RETAINER SEAL
-
287512098 SCREW *SCREW *
-
297661637 RIVET,INTERLOCK,ZRIVET,INTERLOCK,Z
-
307517386 SCREW,SCREW,
-
315242208-067 BRKT,CLUTCH,LOW,BLKBRKT,CLUTCH,LOW,BLK
-
327547067 NUTSERT,HEXNUTSERT,HEX
