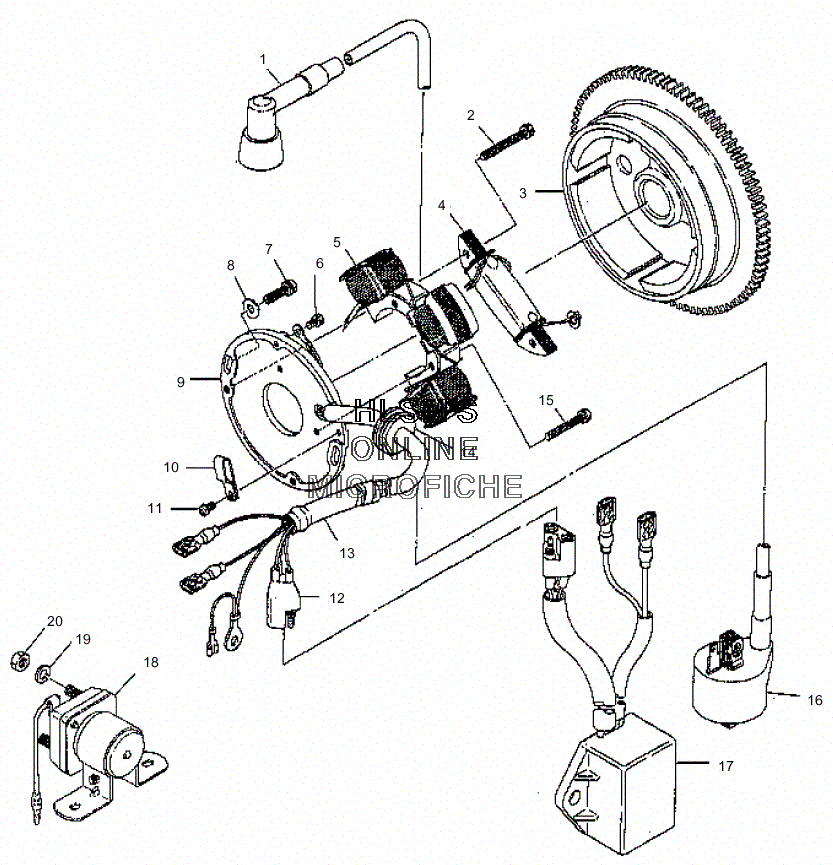

MAGNETO для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска
-
№АртикулНазвание
-
14020129 CAP SPARK PLUG,CAP SPARK PLUG,
-
23083423 SCREW AND WASHERSCREW AND WASHER
-
33083939 FLYWHEEL,W/RING GEARFLYWHEEL,W/RING GEAR
-
43083422 COIL, EXCITINGCOIL, EXCITING
-
53083976 COIL,LIGHT(STATOR 1)COIL,LIGHT(STATOR 1)
-
63081256 SCREWANDWASHER ASMSCREWANDWASHER ASM
-
73086788 SCREW AND WASHERSCREW AND WASHER
-
83086789 WASHERWASHER
-
93083979 PLATE ASM. (INCL. 2,4,5,6,9-15)PLATE ASM. (INCL. 2,4,5,6,9-15)
-
93083634 PLATE, COILPLATE, COIL
-
103081296 CLAMPCLAMP
-
113081260 SCREWANDWASHER,SCREWANDWASHER,
-
123083909 COUPLERCOUPLER
-
133083978 HARNESS, WIRE (INCL. 12,14)HARNESS, WIRE (INCL. 12,14)
-
143083773 GROMMETGROMMET
-
153083736 SCREWANDWASHER ASM.SCREWANDWASHER ASM.
-
163083923 COIL, IGNITION *COIL, IGNITION *
-
173083977 CDI UNIT *CDI UNIT *
-
183085521 SOLENOID *SOLENOID *
-
193080077 WASHER SPRINGWASHER SPRING
-
203083073 NUTNUT
