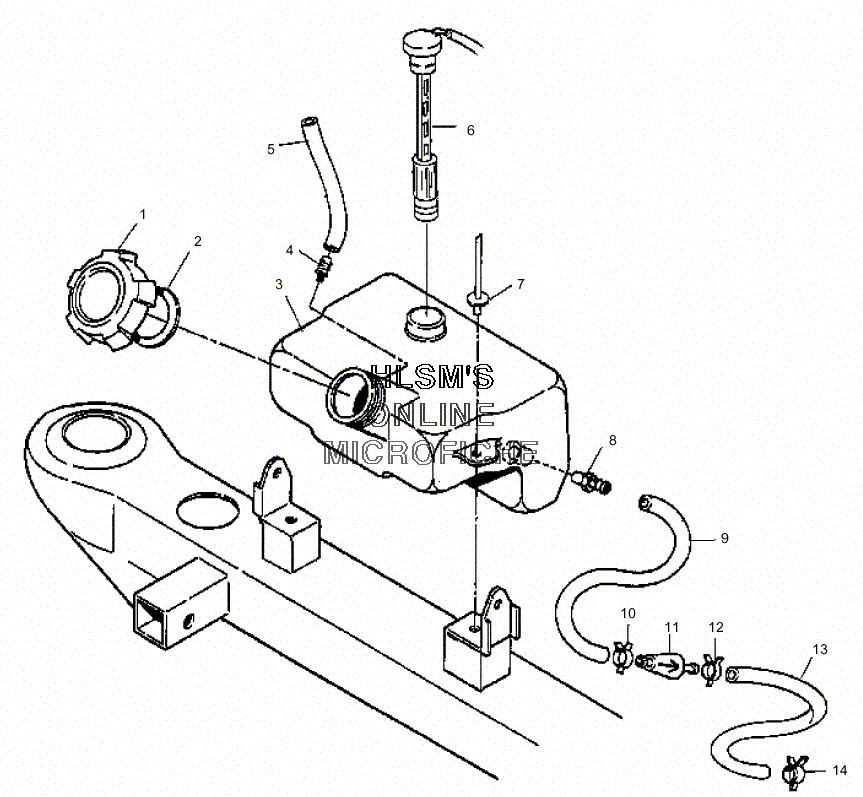

OIL TANK для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска
-
№АртикулНазвание
-
15430779 CAP,OIL TANKCAP,OIL TANK
-
25810141 GASKET-OIL CAPGASKET-OIL CAP
-
35431793 TANK,OIL,DRILLEDTANK,OIL,DRILLED
-
47052077 FITTING,FITTING,
-
58360009-600 FUEL LINE,1/8 ID,600 CM.FUEL LINE,1/8 ID,600 CM.
-
64110265 SENSOR,OIL,W/CONNECOTRSENSOR,OIL,W/CONNECOTR
-
77621460 RIVETRIVET
-
87052153 FITTING,1/4 HOSEFITTING,1/4 HOSE
-
98450003-1525 FUEL LINE,1/4 ID(1525 CM.)FUEL LINE,1/4 ID(1525 CM.)
-
107080307 CLAMPCLAMP
-
112530009 FILTER,SMALL,IN-LINE,FILTER,SMALL,IN-LINE,
-
127080003 CLAMP,HOSECLAMP,HOSE
-
138450040-600 FUEL LINE,1/4 ID(600 CM.)FUEL LINE,1/4 ID(600 CM.)
-
147080476 CLAMP, HOSE, S.S.CLAMP, HOSE, S.S.
