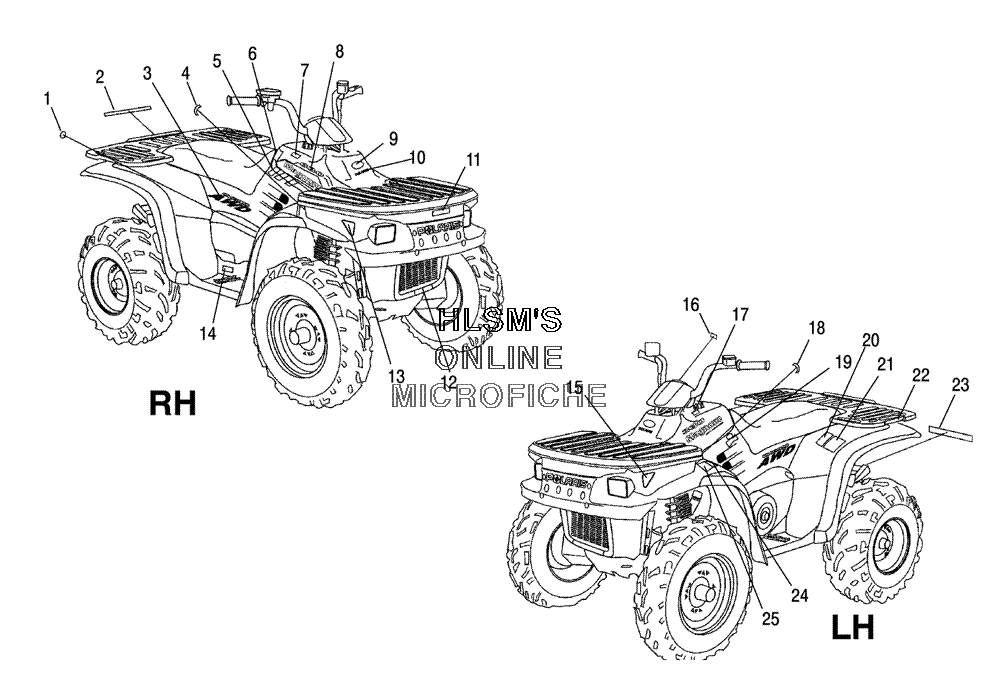

DECALS для Polaris MAGNUM 330 4X4 (A05CD32AC) (N.B.U. SUB CAMO) - 2005 года выпуска
-
№АртикулНазвание
-
15435424 BADGE 50 YEARS (IF BUILT BEFORE 7/05/04)BADGE 50 YEARS (IF BUILT BEFORE 7/05/04)
-
17173013 UROCAL 50TH ANNIVERSARY (IF BUILT AFTER 7/05/04)UROCAL 50TH ANNIVERSARY (IF BUILT AFTER 7/05/04)
-
27172572 DECALDECAL
-
37172579 DECAL SIDE PANEL AWD (LOWER/LEFT)DECAL SIDE PANEL AWD (LOWER/LEFT)
-
37172580 DECAL SIDE PANEL AWD (LOWER/RIGHT)DECAL SIDE PANEL AWD (LOWER/RIGHT)
-
47171495 DECAL ARROW CONTAINER (RIGHT)DECAL ARROW CONTAINER (RIGHT)
-
67172559 DECALDECAL
-
77079780 DECAL WARNING AWD SWITCH (WHITE)DECAL WARNING AWD SWITCH (WHITE)
-
87172576 DECAL TANK SIDE MAGNUM330 (LEFT)DECAL TANK SIDE MAGNUM330 (LEFT)
-
87172577 DECAL TANK SIDE MAGNUM330 (RIGHT)DECAL TANK SIDE MAGNUM330 (RIGHT)
-
97078465 LOGO POLARIS STARLOGO POLARIS STAR
-
107171879 DECAL POLARIS COVER (FRONT/GOLD)DECAL POLARIS COVER (FRONT/GOLD)
-
117172569 DECALDECAL
-
127074220 DECAL MACPHERSON STRUTDECAL MACPHERSON STRUT
-
137171473 DECAL AMBER REFLECTOR (RIGHT)DECAL AMBER REFLECTOR (RIGHT)
-
147172562 DECAL DRAIN RECOILDECAL DRAIN RECOIL
-
157171472 DECAL AMBER REFLECTOR (LEFT)DECAL AMBER REFLECTOR (LEFT)
-
167079672 DECAL AUXILIARY FOOT BRAKEDECAL AUXILIARY FOOT BRAKE
-
177172564 DECALDECAL
-
187171494 DECAL ARROW CONTAINER (LEFT)DECAL ARROW CONTAINER (LEFT)
-
197172578 DECAL SIDE PANEL UPPR M.O.DECAL SIDE PANEL UPPR M.O.
-
207172566 DECALDECAL
-
217172571 DECAL TIRE (PR/LOAD 4/3 1100)DECAL TIRE (PR/LOAD 4/3 1100)
-
227079927 DECAL REFLECT (RED)DECAL REFLECT (RED)
-
237172066 DECAL POLARIS (REAR/GOLD)DECAL POLARIS (REAR/GOLD)
-
247172561 DECALDECAL
-
257172560 DECAL WARNING, GENERAL CPSCDECAL WARNING, GENERAL CPSC
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- • DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FUEL PUMP
- FUEL TANK AND CARBURETOR MOUNTING
- GEAR SELECTOR
- GEARCASE
- HANDLEBAR
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL COOLING SYSTEM
- OIL PUMP AND OIL FILTER
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- SHOCK ABSORBER
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- STORAGE BOX - FRONT
- SUSPENSION - FRONT A ARM W/ STRUT MOUNTING
- SUSPENSION - FRONT STRUT
- SWING ARM W/ GEARCASE MOUNTING
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
