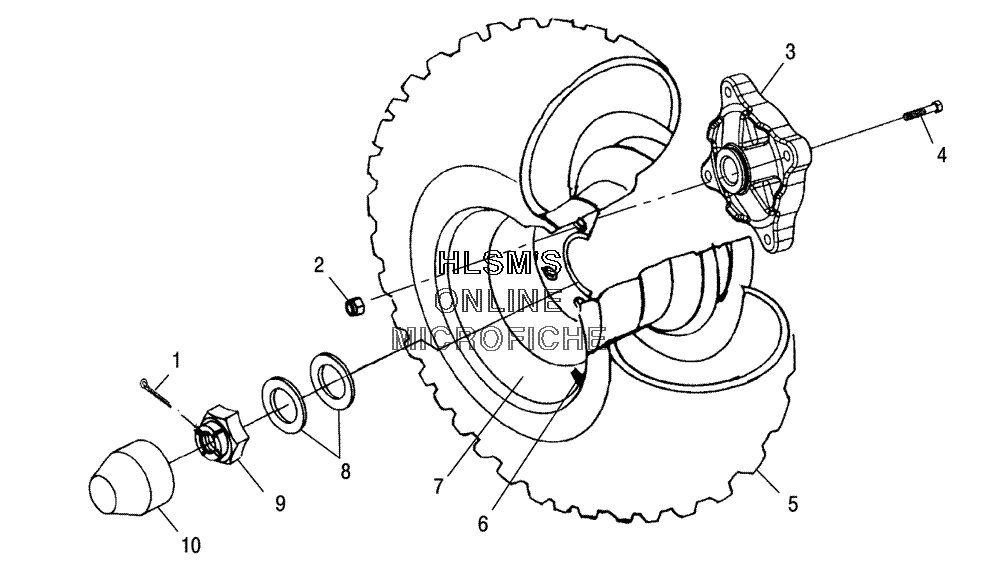

WHEEL - REAR для Polaris MAGNUM 330 4X4 (A05CD32AC) (N.B.U. SUB CAMO) - 2005 года выпуска
-
№АртикулНазвание
-
17661404 PIN COTTERPIN COTTER
-
27547237 NUT FLANGE TWO PIECENUT FLANGE TWO PIECE
-
35131649 HUB WHEEL MACH (RIGHT/REAR)HUB WHEEL MACH (RIGHT/REAR)
-
47515513 STUDSTUD
-
55411936 TIRE TITAN (24X11 12)TIRE TITAN (24X11 12)
-
61525017 VALVE RIMVALVE RIM
-
71520457-067 RIM (12X8) (REAR)RIM (12X8) (REAR)
-
87555796 WASHER CONEWASHER CONE
-
97543005 NUT CASTLENUT CASTLE
-
105411164 COVER, DUST HUBCOVER, DUST HUB
