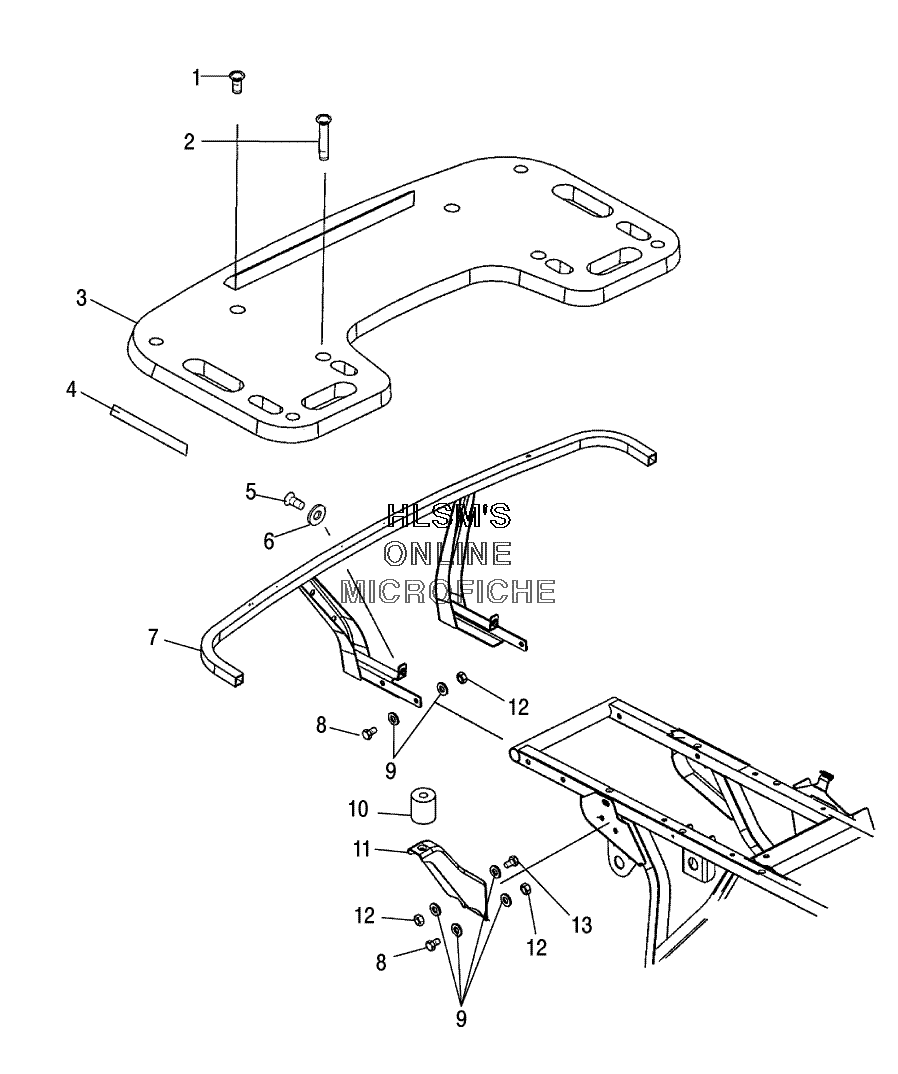

RACK AND BUMPER MOUNTING - REAR для Polaris MAGNUM 330 4X4 (A05CD32AC) (N.B.U. SUB CAMO) - 2005 года выпуска
-
№АртикулНазвание
-
17518280 SCREWSCREW
-
27517983 SCREWSCREW
-
32670174-070 RACK ASSY (REAR/BLACK) (INCL. REF. 4 AND WARNING DECAL)RACK ASSY (REAR/BLACK) (INCL. REF. 4 AND WARNING DECAL)
-
47079927 DECAL REFLECT (RED)DECAL REFLECT (RED)
-
57517312 SCREWSCREW
-
67555859 WASHER FLATWASHER FLAT
-
71013724-067 RACK SUPPORT (REAR/BLACK)RACK SUPPORT (REAR/BLACK)
-
87512329 BOLTBOLT
-
97558402 WASHER FLATWASHER FLAT
-
105334092 SPACERSPACER
-
115246394-067 RACK MOUNT (REAR/FRONT/BLACK)RACK MOUNT (REAR/FRONT/BLACK)
-
127542324 NUT NYLOKNUT NYLOK
-
137512371 BOLTBOLT
