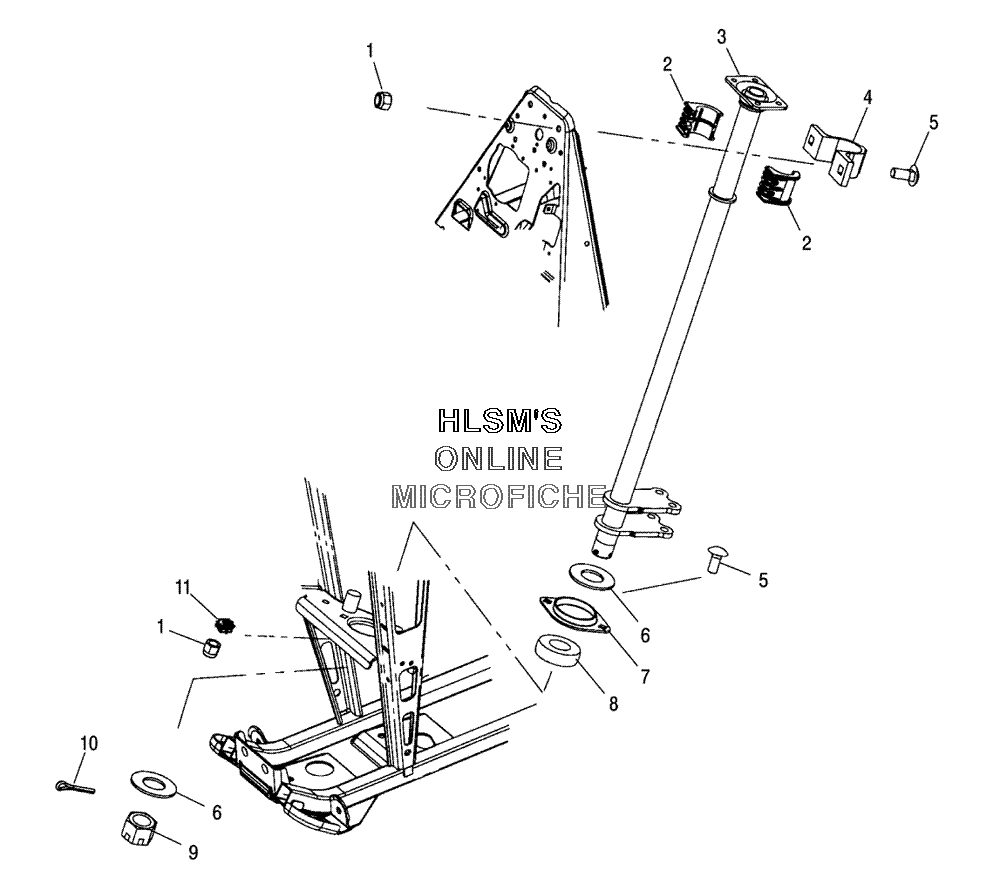

STEERING POST для Polaris MAGNUM 330 4X4 (A05CD32AC) (N.B.U. SUB CAMO) - 2005 года выпуска
-
№АртикулНазвание
-
17542324 NUT NYLOKNUT NYLOK
-
25433866 BUSHING (UPPER) (1 IN)BUSHING (UPPER) (1 IN)
-
31822630-067 STEERING POST KITSTEERING POST KIT
-
45246732 BRACKET BUSHING (UPPER)BRACKET BUSHING (UPPER)
-
57517428 BOLTBOLT
-
67556162 BUSHINGBUSHING
-
75222393 FLANGETTE (2 BOLT)FLANGETTE (2 BOLT)
-
83514352 BEARINGBEARING
-
97547158 NUT SLOTTED HEXAGONNUT SLOTTED HEXAGON
-
107661633 PIN COTTERPIN COTTER
-
117558402 WASHER, FLATWASHER, FLAT
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FUEL PUMP
- FUEL TANK AND CARBURETOR MOUNTING
- GEAR SELECTOR
- GEARCASE
- HANDLEBAR
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL COOLING SYSTEM
- OIL PUMP AND OIL FILTER
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- SHOCK ABSORBER
- STARTER - RECOIL
- STARTING MOTOR
- • STEERING POST
- STORAGE BOX - FRONT
- SUSPENSION - FRONT A ARM W/ STRUT MOUNTING
- SUSPENSION - FRONT STRUT
- SWING ARM W/ GEARCASE MOUNTING
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
