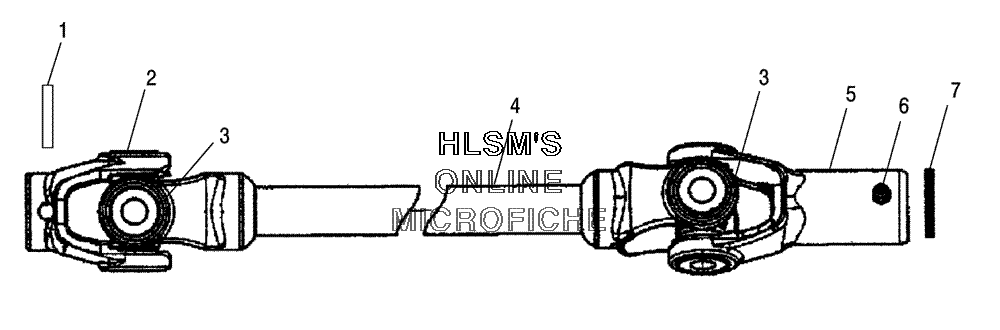

DRIVESHAFT - FRONT INTERMEDIATE для Polaris SPORTSMAN 600 (A05MH59AN) (SONIC BLUE) - 2005 года выпуска
-
№АртикулНазвание
-
17661913 PIN, SPRINGPIN, SPRING
-
23260133 YOKEYOKE
-
32202015 CROSS AND BEARING KIT, NONGREASECROSS AND BEARING KIT, NONGREASE
-
41350089 SHAFT BAR ASSY, NEAPCOSHAFT BAR ASSY, NEAPCO
-
53260131 YOKEYOKE
-
67080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
75411092 O-RINGO-RING
-
71380221 PROPSHAFT, ASSY NONSERV (FRONT)PROPSHAFT, ASSY NONSERV (FRONT)
