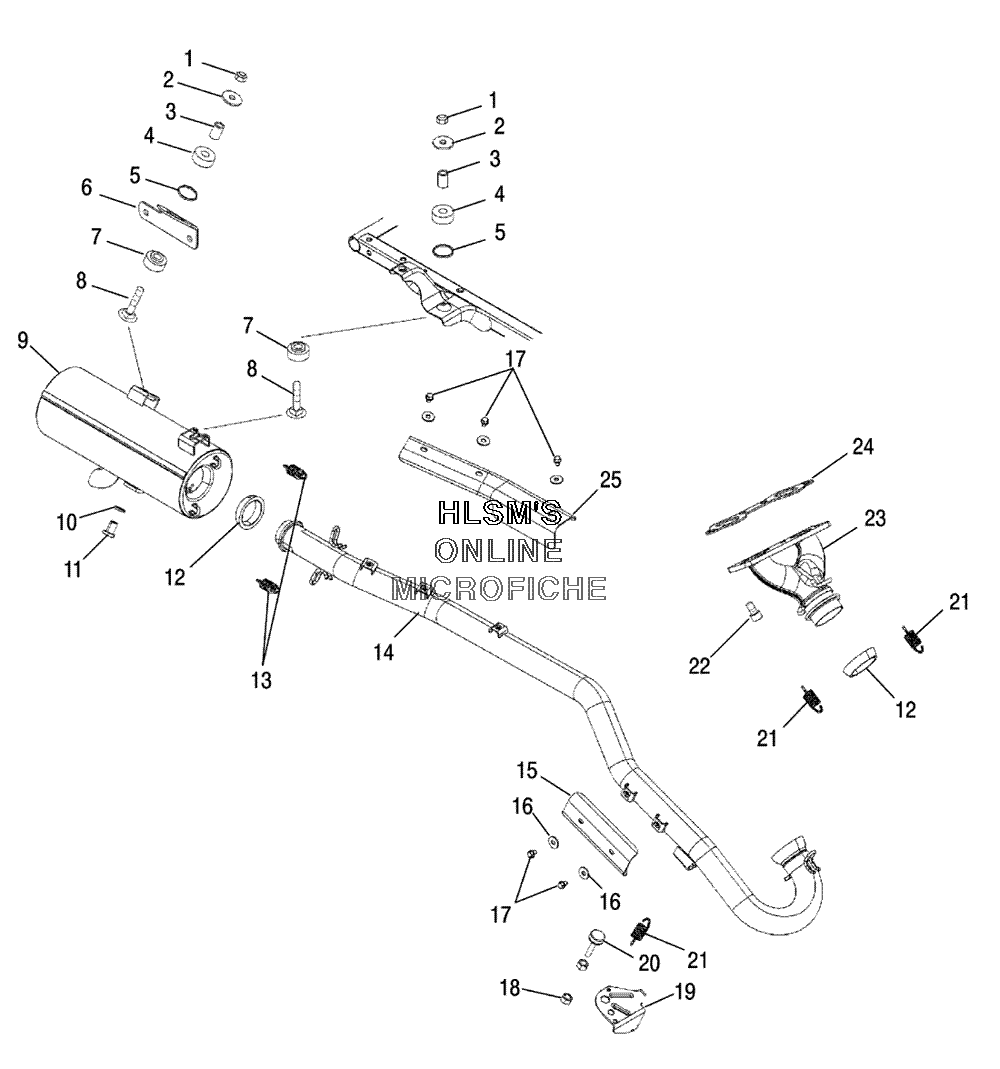

EXHAUST SYSTEM для Polaris SPORTSMAN 600 (A05MH59AN) (SONIC BLUE) - 2005 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27555716 WASHERWASHER
-
35010192 BUSHINGBUSHING
-
45410436 WASHER, RUBBERWASHER, RUBBER
-
57555863 BUSHINGBUSHING
-
65241663 BRKT SILENCER, FRAME PLATEDBRKT SILENCER, FRAME PLATED
-
75412508 DAMPENER VIBRATIONDAMPENER VIBRATION
-
87515316 BOLTBOLT
-
91261223-029 WELD EXHAUST SILENCER (BLACK/IF BUILT BEFORE 7/19/04)WELD EXHAUST SILENCER (BLACK/IF BUILT BEFORE 7/19/04)
-
91261223-489 WELD EXHAUST SILENCER (IF BUILT AFTER 7/19/04)WELD EXHAUST SILENCER (IF BUILT AFTER 7/19/04)
-
107556230 WASHER CLEAN OUT (.51X.75X.09)WASHER CLEAN OUT (.51X.75X.09)
-
117512666 BOLTBOLT
-
123610047 SEAL, EXHAUST SOCKETSEAL, EXHAUST SOCKET
-
137041804 SPRINGSPRING
-
141261242-029 EXHAUST PIPE (1.75 OD) (BLACK) (IF BUILT BEFORE 7/19/04)EXHAUST PIPE (1.75 OD) (BLACK) (IF BUILT BEFORE 7/19/04)
-
141261242-489 EXHAUST PIPE (IF BUILT AFTER 7/19/04)EXHAUST PIPE (IF BUILT AFTER 7/19/04)
-
155244014 SHIELD HEAT, EXHAUSTSHIELD HEAT, EXHAUST
-
167555935 WASHERWASHER
-
177515197 SCREWSCREW
-
187542301 NUT HEXNUT HEX
-
197547101 NUTSERT (5/16 18) (.027 .150) (HXY)NUTSERT (5/16 18) (.027 .150) (HXY)
-
203021522 MOUNT TORQUE STOP (IF BUILT BEFORE 12/06/04)MOUNT TORQUE STOP (IF BUILT BEFORE 12/06/04)
-
203110064 MOUNT, TORQUE STOP (IF BUILT AFTER 12/06/04)MOUNT, TORQUE STOP (IF BUILT AFTER 12/06/04)
-
217041789 SPRINGSPRING
-
227518234 SCREW (M8X1.25X25 HX/SOC SEMS)SCREW (M8X1.25X25 HX/SOC SEMS)
-
231261077-029 WELD MANIFOLD (BLACK)WELD MANIFOLD (BLACK)
-
245811511 GASKET (26MM ID)GASKET (26MM ID)
-
255245502 SHIELD, HEAT EXHAUSTSHIELD, HEAT EXHAUST
