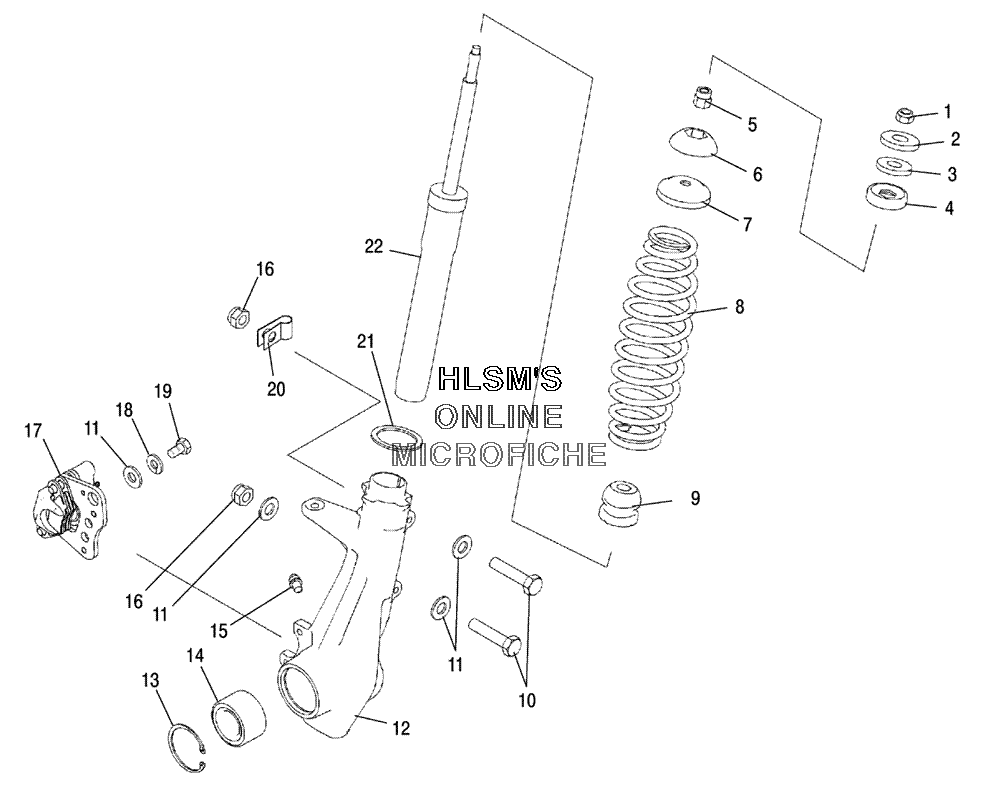

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN 600 (A05MH59AN) (SONIC BLUE) - 2005 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT, BALL (TOP)PIVOT, BALL (TOP)
-
55132062 SPACER (1/2 20)SPACER (1/2 20)
-
65432871 PIVOT, BALL (BOTTOM)PIVOT, BALL (BOTTOM)
-
75243364 RETAINER SPRINGRETAINER SPRING
-
87042301-293 SPRING COMP (75 111#/IN, 13.5, RD)SPRING COMP (75 111#/IN, 13.5, RD)
-
95412665 BUMPER MCU (17.8MM ID)BUMPER MCU (17.8MM ID)
-
107515339 BOLTBOLT
-
117558402 WASHER, FLATWASHER, FLAT
-
125134154 HUBSTRUT, VALVE ASSY (LEFT)HUBSTRUT, VALVE ASSY (LEFT)
-
125134155 HUBSTRUT, VALVE ASSY (RIGHT)HUBSTRUT, VALVE ASSY (RIGHT)
-
137710507 RING, RET., 2.500 INTERNALRING, RET., 2.500 INTERNAL
-
143514342 BEARING AXLE TUBE/HUBSTRUTBEARING AXLE TUBE/HUBSTRUT
-
157080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
167542324 NUT, NYLOKNUT, NYLOK
-
187552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
197512365 SCREW, CAPSCREW, CAP
-
207080367 CLAMP, CABLECLAMP, CABLE
-
215211115 WASHERWASHER
-
227041762 STRUT (FRONT)STRUT (FRONT)
