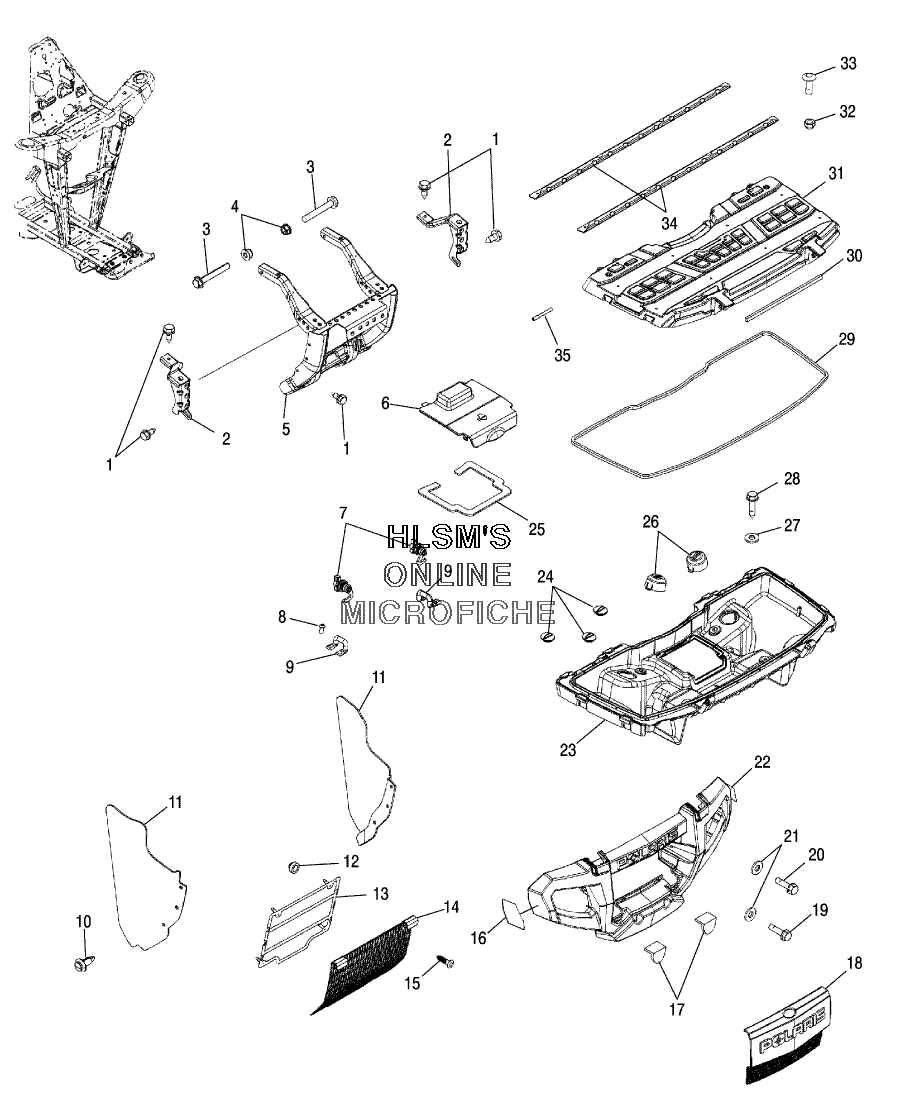

STORAGE BOX - FRONT W/ BUMPER MOUNTING для Polaris SPORTSMAN 600 (A05MH59AN) (SONIC BLUE) - 2005 года выпуска
-
№АртикулНазвание
-
17515399 SCREWSCREW
-
21014591-067 SUPPORT, RACK (LEFT/BLACK)SUPPORT, RACK (LEFT/BLACK)
-
21014592-067 SUPPORT, RACK (RIGHT/BLACK)SUPPORT, RACK (RIGHT/BLACK)
-
37518341 BOLT (5/16 18X1 3/4) (HXFLNG GR5)BOLT (5/16 18X1 3/4) (HXFLNG GR5)
-
47542343 NUT, FLANGENUT, FLANGE
-
51014635-067 BRUSHGUARD (BLACK)BRUSHGUARD (BLACK)
-
65435629 COVER RADIATORCOVER RADIATOR
-
77081241 LATCH 1/4 TURN, DETENT (LEFT)LATCH 1/4 TURN, DETENT (LEFT)
-
77081242 LATCH 1/4 TURN, DETENT (RIGHT)LATCH 1/4 TURN, DETENT (RIGHT)
-
87512076 SCREWSCREW
-
95334257 LATCH WIRELATCH WIRE
-
107661855 RIVET TUFLOK (.315 .325X.787)RIVET TUFLOK (.315 .325X.787)
-
115434314 SHIELD RADIATOR, SIDE (LEFT)SHIELD RADIATOR, SIDE (LEFT)
-
115434315 SHIELD RADIATOR, SIDE (RIGHT)SHIELD RADIATOR, SIDE (RIGHT)
-
125412504 GROMMET RUBBER, MOUNT (25")GROMMET RUBBER, MOUNT (25")
-
135435046 COVER RADIATOR, MESH, LGCOVER RADIATOR, MESH, LG
-
145247507-067 GRILL BRUSH GUARD (BLACK)GRILL BRUSH GUARD (BLACK)
-
157518046 SCREW (#8X1 PN PH H/L Y)SCREW (#8X1 PN PH H/L Y)
-
167172687 DECAL AMBER REFLECTOR (LEFT)DECAL AMBER REFLECTOR (LEFT)
-
167172688 DECAL AMBER REFLECTOR (RIGHT)DECAL AMBER REFLECTOR (RIGHT)
-
175435701 COVER BUMPER ACC (LEFT) (IF BUILT BEFORE 11/22/04)COVER BUMPER ACC (LEFT) (IF BUILT BEFORE 11/22/04)
-
175435702 COVER BUMPER ACC (RIGHT) (IF BUILT BEFORE 11/22/04)COVER BUMPER ACC (RIGHT) (IF BUILT BEFORE 11/22/04)
-
185435357-070 PANEL BUMPER (FRONT/BLACK)PANEL BUMPER (FRONT/BLACK)
-
197518383 SCREW (5/16 18X3/4 HX/W TAP/R M)SCREW (5/16 18X3/4 HX/W TAP/R M)
-
207518382 BOLT (5/16 18X2.25 FLG TAP/R M)BOLT (5/16 18X2.25 FLG TAP/R M)
-
217556341 WASHER (.327X.875X.090) (FL M)WASHER (.327X.875X.090) (FL M)
-
222632865-070 BUMPER ASSY (FRONT/BLACK) (INCL. WARNING DECAL/IF BUILT BEFORE 11/22/04)BUMPER ASSY (FRONT/BLACK) (INCL. WARNING DECAL/IF BUILT BEFORE 11/22/04)
-
222633178-070 BUMPER ASSY (FRONT/BLACK) (INCL. WARNING DECAL/IF BUILT AFTER 11/22/04)BUMPER ASSY (FRONT/BLACK) (INCL. WARNING DECAL/IF BUILT AFTER 11/22/04)
-
231202838 LOWER BOX ASSY (FRONT)LOWER BOX ASSY (FRONT)
-
245412352 PLUG COMPARTMENTPLUG COMPARTMENT
-
255812778 SEAL RADIATOR, COVERSEAL RADIATOR, COVER
-
265435628 COVER STRUTCOVER STRUT
-
277555960 WASHER, FLATWASHER, FLAT
-
287517208 SCREWSCREW
-
295521693 SEALSEAL
-
305521706 SEAL LID/BUMPERSEAL LID/BUMPER
-
312633157 COVER ASSY, SERVICE (FRONT) (INCL. 30 AND WARNING DECAL)COVER ASSY, SERVICE (FRONT) (INCL. 30 AND WARNING DECAL)
-
327542122 NUT NYLOKNUT NYLOK
-
337518427 SCREW (1/4 20X1.25 TR/TX M GR.5)SCREW (1/4 20X1.25 TR/TX M GR.5)
-
345247653-418 CHANNEL LID, FLT WRKL (FRONT/BLACK)CHANNEL LID, FLT WRKL (FRONT/BLACK)
-
355134576 PIN, HINGE (FRONT)PIN, HINGE (FRONT)
