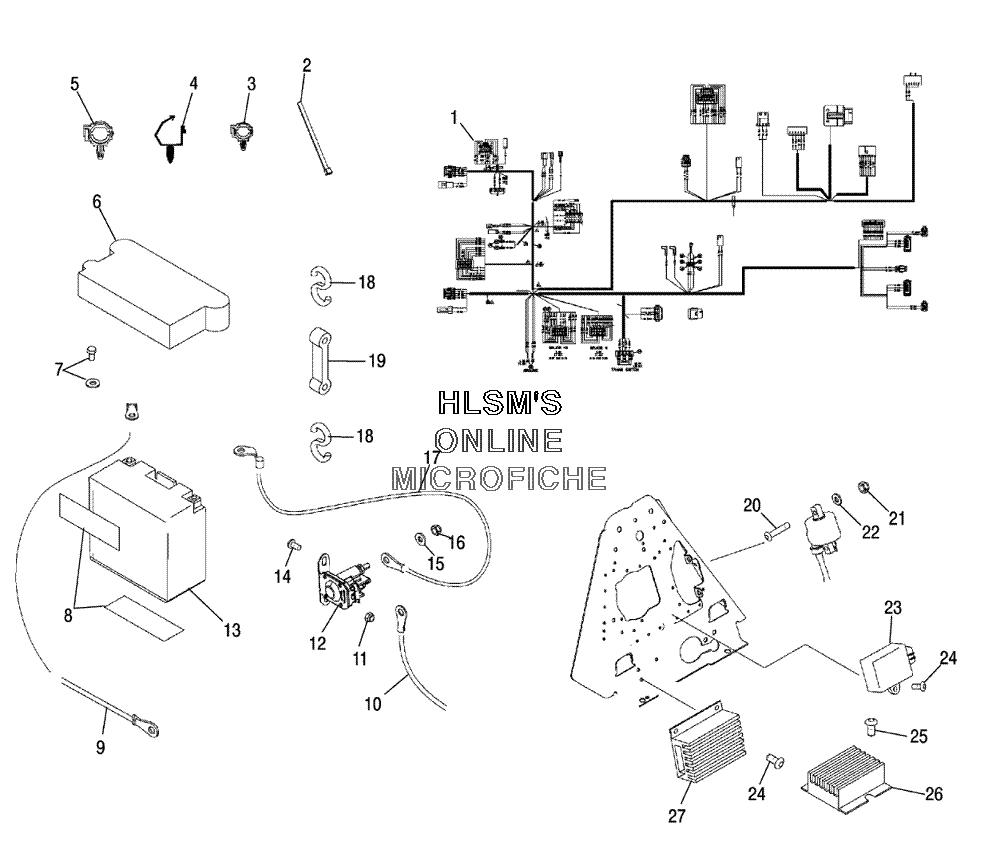

ELECTRICAL COMPONENTS для Polaris TRAIL BOSS 330 QUADRICYCLE (A05CA32EA) - 2005 года выпуска
-
№АртикулНазвание
-
12410595 HARNESS MAINHARNESS MAIN
-
27080138 CABLE TIECABLE TIE
-
34020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
47670109 CLIP ROUTINGCLIP ROUTING
-
54020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
65431769 COVER, BATTERYCOVER, BATTERY
-
72202848 BATTERY BOLT KITBATTERY BOLT KIT
-
85810290 PAD, BATTERYPAD, BATTERY
-
94010095 CABLE, BATTERY/ENGINE (BLACK).CABLE, BATTERY/ENGINE (BLACK).
-
104010093 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
117518287 NUT, NYLOK INSERT (#10 24)NUT, NYLOK INSERT (#10 24)
-
124011072 SWITCH, MAGNETICSWITCH, MAGNETIC
-
134011138 BATTERY SEALED (14AH) (ETX15)BATTERY SEALED (14AH) (ETX15)
-
147512027 SCREWSCREW
-
157552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
167547283 NUT, HEXAGON JAM Y (1/4 20)NUT, HEXAGON JAM Y (1/4 20)
-
174010094 CABLE, BATTERY/SOLENOID (RED)CABLE, BATTERY/SOLENOID (RED)
-
187010032 HOOK BATTERY STRAPHOOK BATTERY STRAP
-
195412499 STRAP BATTERY HOLD DOWN CSTRAP BATTERY HOLD DOWN C
-
207512007 BOLTBOLT
-
217541925 NUT, NYLOK 10 24 YNUT, NYLOK 10 24 Y
-
227571602 WASHERWASHER
-
233087253 CDI SYSTEM ASSYCDI SYSTEM ASSY
-
247512024 SCREWSCREW
-
257517560 SCREWSCREW
-
264011281 CTRL MOD, NEUTRAL LITE HI FLSHCTRL MOD, NEUTRAL LITE HI FLSH
-
274011088 CONTROLLER MODULE FAN, CIR REGCONTROLLER MODULE FAN, CIR REG
