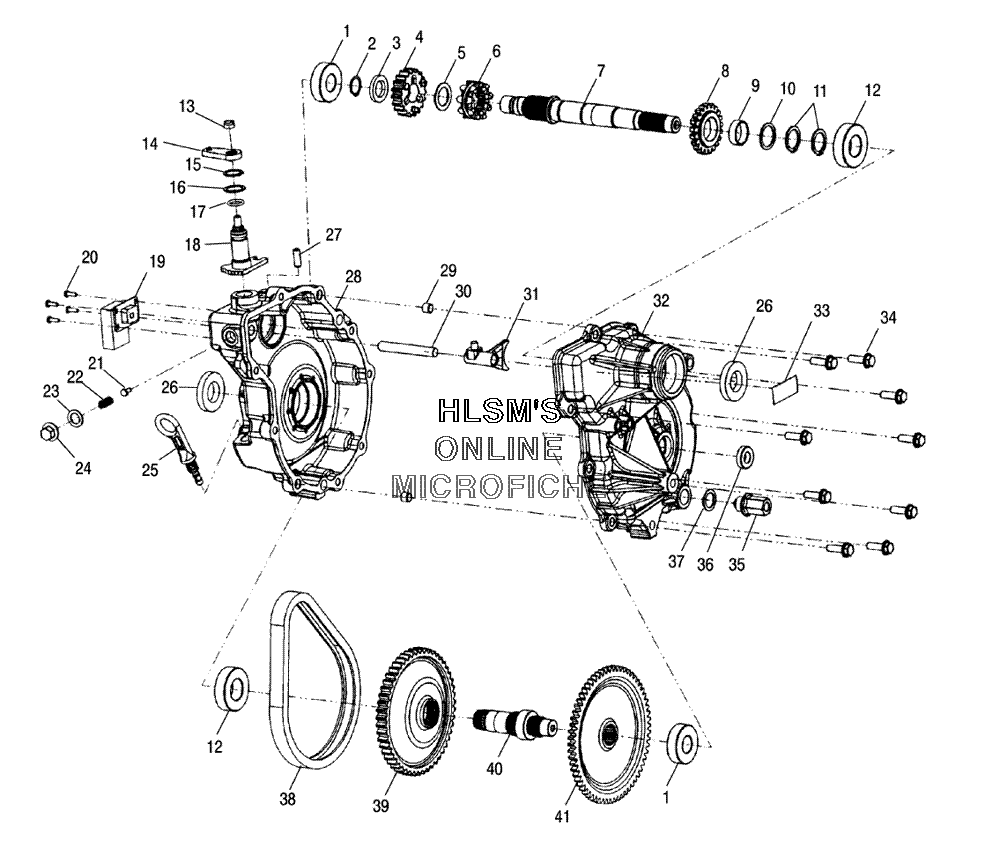

GEARCASE для Polaris TRAIL BOSS 330 QUADRICYCLE (A05CA32EA) - 2005 года выпуска
-
№АртикулНазвание
-
13233018 BEARINGBEARING
-
23233177 RING, RETAININGRING, RETAINING
-
33233673 WASHER THRUSTWASHER THRUST
-
43233674 SPROCKET (19T)SPROCKET (19T)
-
53233010 WASHERWASHER
-
63233675 ENGAGEMENT DOG HIGH/REVENGAGEMENT DOG HIGH/REV
-
73233676 SHAFT INPUT, HYBRIDSHAFT INPUT, HYBRID
-
83233677 GEAR (21T)GEAR (21T)
-
93233678 BUSHINGBUSHING
-
103233105 WASHERWASHER
-
113233106 RING, SNAPRING, SNAP
-
123233019 BEARINGBEARING
-
133233961 NUT LOCK HEXAGON FLANGE NYLON (5/16)NUT LOCK HEXAGON FLANGE NYLON (5/16)
-
143233547 BELLCRANKBELLCRANK
-
153233045 RING, RETAININGRING, RETAINING
-
163233040 WASHERWASHER
-
173233548 O-RINGO-RING
-
183233679 SHIFT SHAFTSHIFT SHAFT
-
193234002 SWITCH GEAR INDICATION, 3 PISTONSWITCH GEAR INDICATION, 3 PISTON
-
203233749 SCREWSCREW
-
213233680 BULLET SHIFTINGBULLET SHIFTING
-
223233681 SPRING COMPRESSIONSPRING COMPRESSION
-
233233872 WASHER NYLONWASHER NYLON
-
243233682 PLUG, DETENTPLUG, DETENT
-
253233478 DIPSTICKDIPSTICK
-
263233788 SEAL TRIPLE LIPSEAL TRIPLE LIP
-
273233524 TUBE, VENTTUBE, VENT
-
283234049 GEARCASE (RIGHT) (MACH)GEARCASE (RIGHT) (MACH)
-
293233529 PIPE, KNOCKPIPE, KNOCK
-
303233684 SHAFT SHIFTSHAFT SHIFT
-
313233685 SHIFT FORKSHIFT FORK
-
323234048 GEARCASE (LEFT) (MACH)GEARCASE (LEFT) (MACH)
-
333233636 DECAL SWITCHDECAL SWITCH
-
343233252 SCREWSCREW
-
353233687 PLUGPLUG
-
363233527 BUSHING, PIVOTBUSHING, PIVOT
-
373233035 WASHERWASHER
-
383233111 CHAIN, SILENT, 60PCHAIN, SILENT, 60P
-
393233688 SPROCKET (51T)SPROCKET (51T)
-
403233689 OUTPUT SHAFTOUTPUT SHAFT
-
413233690 GEAR (64T)GEAR (64T)
-
411341306 GEARCASE, HR ASSYGEARCASE, HR ASSY
