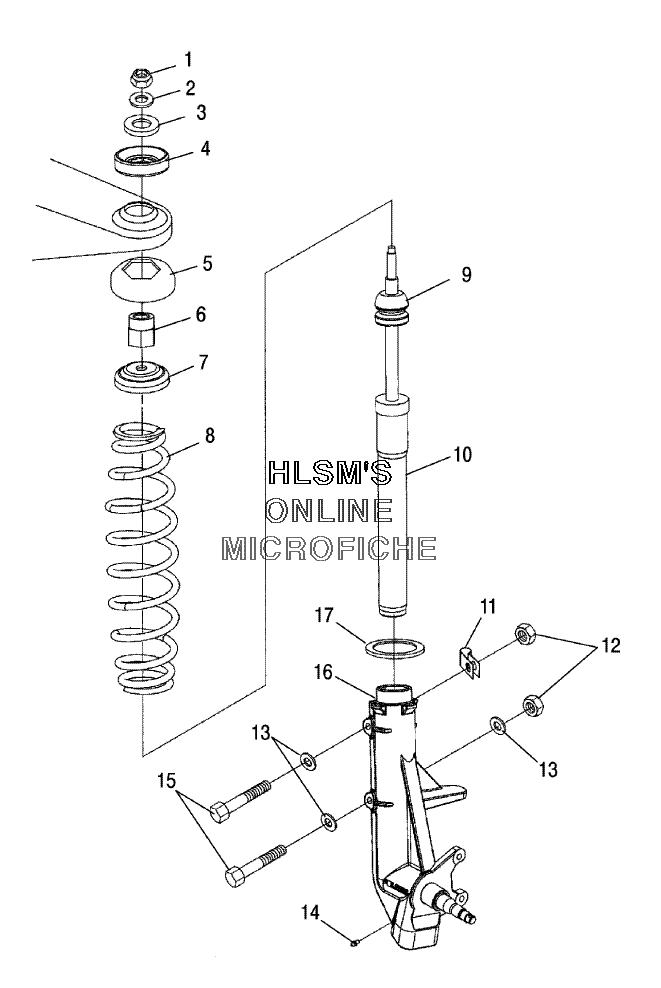

SUSPENSION - FRONT STRUT для Polaris TRAIL BOSS 330 QUADRICYCLE (A05CA32EA) - 2005 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT, BALL (TOP)PIVOT, BALL (TOP)
-
55432871 PIVOT, BALL (BOTTOM)PIVOT, BALL (BOTTOM)
-
65132062 SPACER (1/2 20)SPACER (1/2 20)
-
75243364 RETAINER SPRINGRETAINER SPRING
-
87041850-385 SPRING COMP (41#/IN) (SILVER)SPRING COMP (41#/IN) (SILVER)
-
95412665 BUMPER MCU (17.8MM ID)BUMPER MCU (17.8MM ID)
-
107041761 STRUT (FRONT) (18X30MM) (153.8MM ST)STRUT (FRONT) (18X30MM) (153.8MM ST)
-
117080367 CLAMP, CABLECLAMP, CABLE
-
127542324 NUT, NYLOKNUT, NYLOK
-
137558402 WASHER, FLATWASHER, FLAT
-
147080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
157515339 BOLTBOLT
-
165134133 SUPPORT STRUT/SPINDLE (MACH) (LEFT)SUPPORT STRUT/SPINDLE (MACH) (LEFT)
-
165134134 SUPPORT STRUT/SPINDLE (MACH) (RIGHT)SUPPORT STRUT/SPINDLE (MACH) (RIGHT)
-
175211115 WASHERWASHER
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - PARK
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL
- BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY.
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - FRONT
- FENDER - REAR W/ SEAT
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE MOUNTING
- HANDLEBAR
- HANDLEBAR - MASTER CYLINDER W/ BRAKE LINE - LEFT
- HANDLEBAR - MIRRORS W/ HORN
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- OIL COOLING SYSTEM
- OIL PUMP AND OIL FILTER
- RACK AND BUMPER MOUNTING - REAR W/ TAILLIGHTS
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- STORAGE BOX - FRONT
- SUSPENSION - FRONT A ARM W/ STRUT MOUNTING
- • SUSPENSION - FRONT STRUT
- SUSPENSION - SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
