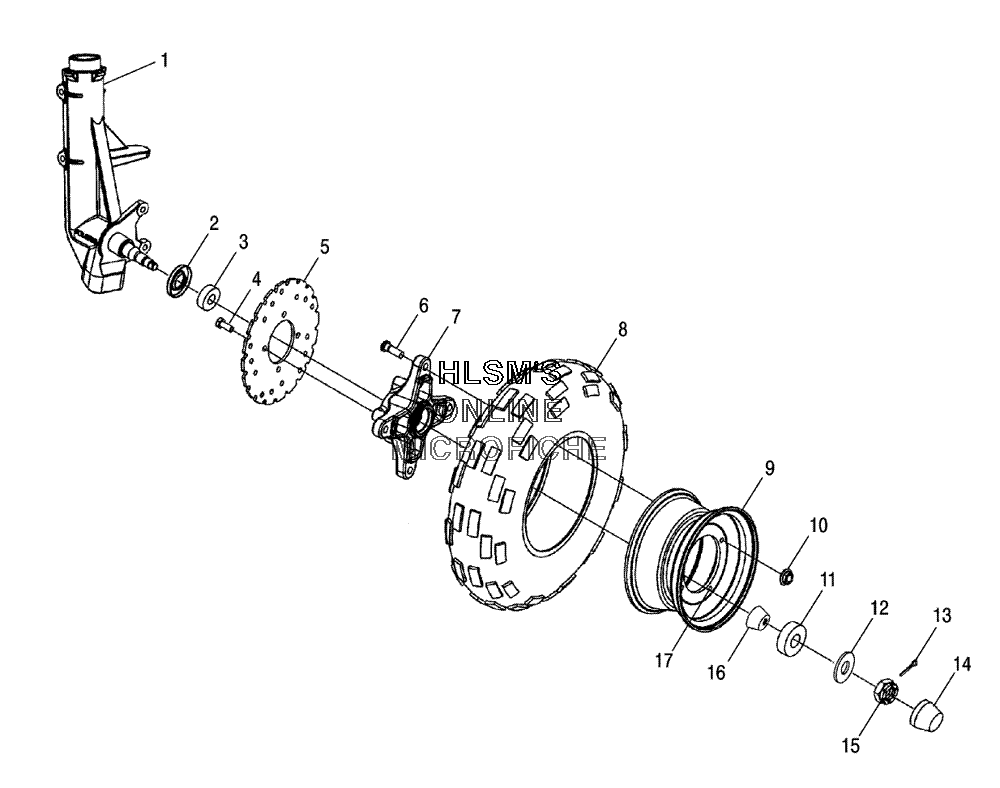

WHEEL - FRONT для Polaris TRAIL BOSS 330 QUADRICYCLE (A05CA32EA) - 2005 года выпуска
-
№АртикулНазвание
-
23610093 SEAL LIP (1.00X1.88X.25)SEAL LIP (1.00X1.88X.25)
-
33514527 BEARING BALL, SEALED (6204) (20X47)BEARING BALL, SEALED (6204) (20X47)
-
47512325 BOLTBOLT
-
55247961 DISC BRAKE (7.21 OD) (.158) (20T)DISC BRAKE (7.21 OD) (.158) (20T)
-
67515513 STUDSTUD
-
75133294 HUB, WHEEL MACHINED 2 WDHUB, WHEEL MACHINED 2 WD
-
85412514 TIRE (23 X 7-10) TITAN 489, 2 STARTIRE (23 X 7-10) TITAN 489, 2 STAR
-
91520175-486 RIM (FRONT) (5.86X10) (NR SILVER)RIM (FRONT) (5.86X10) (NR SILVER)
-
107547237 NUT FLANGE, TWO PIECE (3/8 24)NUT FLANGE, TWO PIECE (3/8 24)
-
113514528 BEARING BALL, SEALED ( 6202) (15X35)BEARING BALL, SEALED ( 6202) (15X35)
-
127556333 WASHER FLAT (.531X1.063X.094 Y)WASHER FLAT (.531X1.063X.094 Y)
-
137661401 PIN, COTTERPIN, COTTER
-
145411164 COVER, DUST HUBCOVER, DUST HUB
-
157542712 NUTNUT
-
165631551 SPACER TAPEREDSPACER TAPERED
-
171525017 VALVE RIMVALVE RIM
