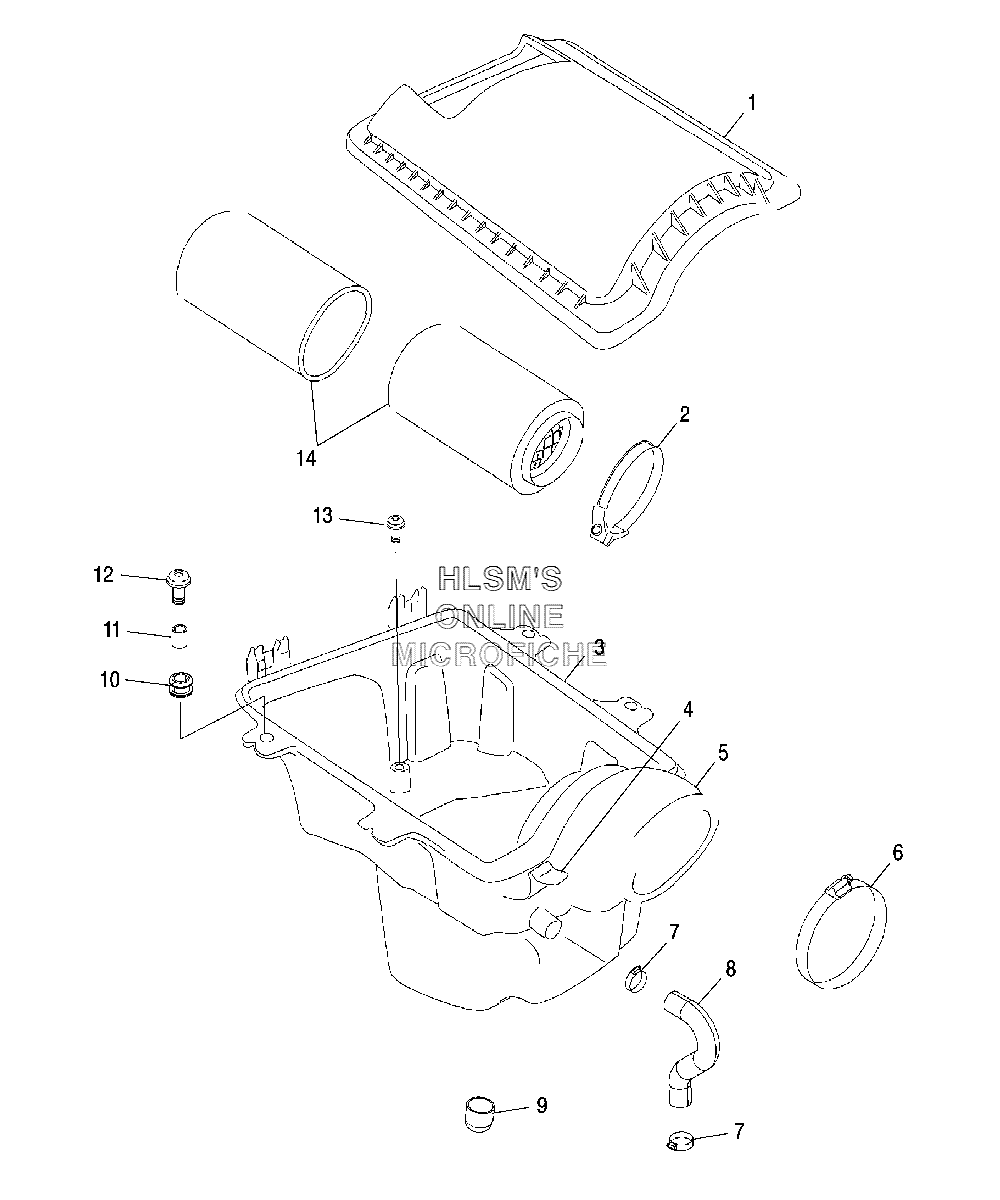

AIR BOX ASSY. для Polaris Outlaw (A06GP50AA) - 2006 года выпуска
-
№АртикулНазвание
-
15436453 LID-AIRBOXLID-AIRBOX
-
27081312 CLAMP-AIRBOXCLAMP-AIRBOX
-
35436449 HOUSING-AIRBOXHOUSING-AIRBOX
-
45249753 CLIP-AIRBOXCLIP-AIRBOX
-
55436451 DUCT-AIRBOX/CARBDUCT-AIRBOX/CARB
-
67080413 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
77080474 CLAMP, HOSECLAMP, HOSE
-
85413042 HOSE-PCV, FORMEDHOSE-PCV, FORMED
-
95412960 CAP-DRAINCAP-DRAIN
-
105412961 GROMMET-RUBBERGROMMET-RUBBER
-
115436452 BUSHINGBUSHING
-
127518196 SCREWSCREW
-
137518547 SCREW-AIRBOXSCREW-AIRBOX
-
145812966 FILTER-AIRBOXFILTER-AIRBOX
-
-1240219 AIR BOX ASSY. (1-5, 9, 10, 11, 13, 14)AIR BOX ASSY. (1-5, 9, 10, 11, 13, 14)
