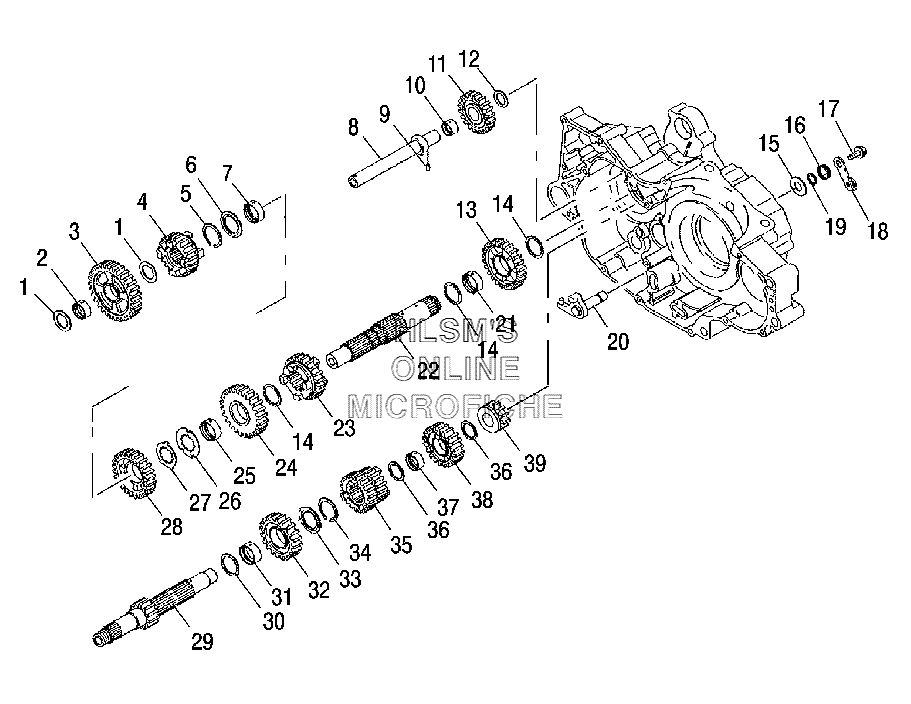

TRANSMISSION - INTERNALS для Polaris Outlaw (A06GP50AA) - 2006 года выпуска
-
№АртикулНазвание
-
13088096 WASHERWASHER
-
23089706 COLLARCOLLAR
-
33089701 GEAR, 1ST DRIVENGEAR, 1ST DRIVEN
-
43089890 GEAR, 5TH DRIVENGEAR, 5TH DRIVEN
-
53088093 CLIPCLIP
-
63088091 WASHER, SPLINEWASHER, SPLINE
-
73089636 COLLAR, SPLINECOLLAR, SPLINE
-
83089665 REVERSE SHAFT ASSY (INCL. 9, 10, 11, 12)REVERSE SHAFT ASSY (INCL. 9, 10, 11, 12)
-
93088191 PIN, DOWELPIN, DOWEL
-
103089668 COLLARCOLLAR
-
113089667 GEAR, REVERSE IDLEGEAR, REVERSE IDLE
-
123089666 WASHERWASHER
-
133089711 GEAR, REVERSE, DRIVENGEAR, REVERSE, DRIVEN
-
143089637 WASHERWASHER
-
153089672 WASHERWASHER
-
163089670 SPRING, REVERSE ARMSPRING, REVERSE ARM
-
173088135 BOLT, FLANGEBOLT, FLANGE
-
183089671 LEVER, REVERSE ARMLEVER, REVERSE ARM
-
193088033 RING, SNAPRING, SNAP
-
203089669 REVERSE ARM ASSYREVERSE ARM ASSY
-
213089712 COLLARCOLLAR
-
223089889 COUNTER SHAFT ASSY (INCL. 1-7, 14, 23, 24, 28)COUNTER SHAFT ASSY (INCL. 1-7, 14, 23, 24, 28)
-
223089700 COUNTER SHAFT ASSYCOUNTER SHAFT ASSY
-
233089704 GEAR, 4TH DRIVENGEAR, 4TH DRIVEN
-
243089702 GEAR, 2ND DRIVENGEAR, 2ND DRIVEN
-
253089653 COLLARCOLLAR
-
263088092 WASHERWASHER
-
273088095 WASHER, LOCKWASHER, LOCK
-
283089703 GEAR, 3RD DRIVENGEAR, 3RD DRIVEN
-
293089887 SHAFT, MAIN ASSY (INCL. 14, 31-38)SHAFT, MAIN ASSY (INCL. 14, 31-38)
-
293089689 MAIN SHAFT ASSYMAIN SHAFT ASSY
-
303089698 WASHERWASHER
-
313089694 COLLARCOLLAR
-
323089888 GEAR, 5TH DRIVEGEAR, 5TH DRIVE
-
333089695 WASHER, SPLINEWASHER, SPLINE
-
343089697 CLIPCLIP
-
353089690 GEAR, 2ND, 3RD DRIVEGEAR, 2ND, 3RD DRIVE
-
363089696 WASHERWASHER
-
373089693 COLLARCOLLAR
-
383089691 GEAR, 4TH DRIVEGEAR, 4TH DRIVE
-
393089710 GEAR, REVERSE, DRIVEGEAR, REVERSE, DRIVE
