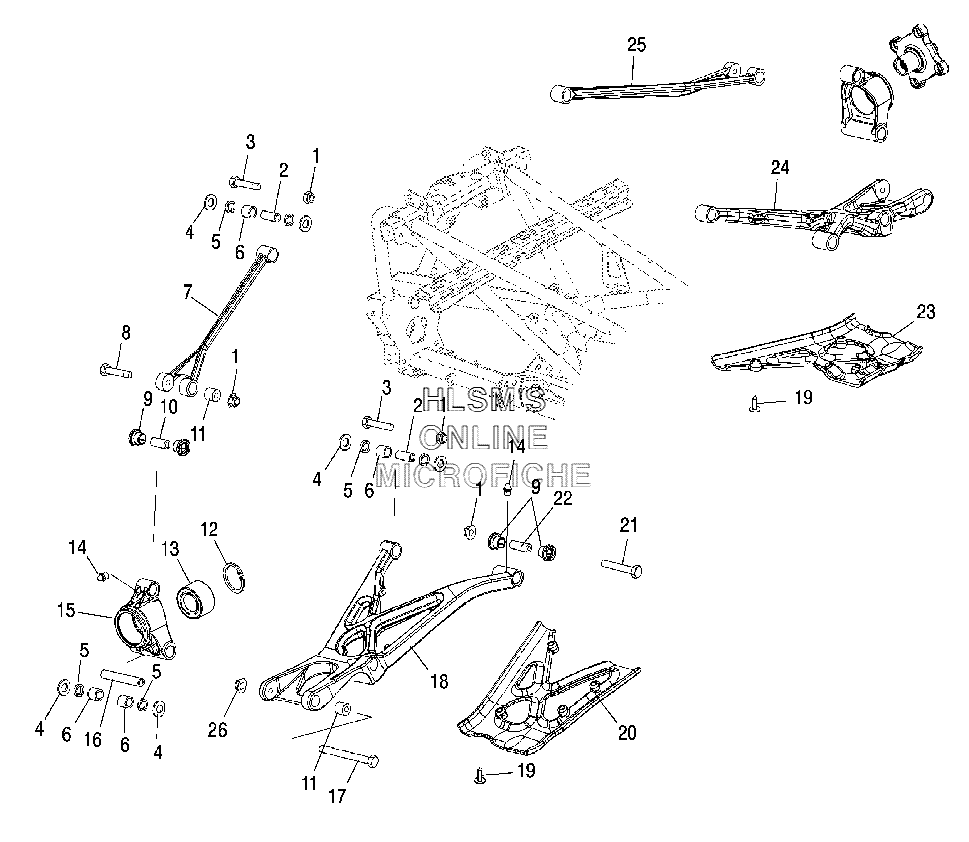

SUSPENSION - REAR для Polaris Outlaw (A06GP50AA) - 2006 года выпуска

№

Артикул

Название
1

7547333 NUT

NUT

340 ₽
2

5334816 SHAFT-CONTROL ARM (INNER)

SHAFT-CONTROL ARM (INNER)

2 500 ₽
3

7518563 BOLT

BOLT

880 ₽
4

7556356 WASHER-THRUST

WASHER-THRUST

670 ₽
5

3610125 SEAL

SEAL

960 ₽
6

3514542 BEARING-NEEDLE

BEARING-NEEDLE

2 910 ₽
7

1542190 CONTROL ARM ASSY. (UPPER/RIGHT) (INCL. 2, 4, 5, 6)

CONTROL ARM ASSY. (UPPER/RIGHT) (INCL. 2, 4, 5, 6)

0 ₽
8

7518560 BOLT

BOLT

1 460 ₽
9

5436798 BUSHING-CONTROL ARM

BUSHING-CONTROL ARM

630 ₽
10

5334817 SHAFT-CONTROL ARM

SHAFT-CONTROL ARM

2 500 ₽
11

5334894 SLEEVE-FLOAT

SLEEVE-FLOAT

17 680 ₽
12

7710507 RING, RET., 2.500 INTERNAL

RING, RET., 2.500 INTERNAL

630 ₽
13

3514342 BEARING-AXLE TUBE/HUBSTRUT

BEARING-AXLE TUBE/HUBSTRUT

9 780 ₽
14

7080433 FITTING, LUBRICATION

FITTING, LUBRICATION

250 ₽
15

5135101 CARRIER-BEARING, WHEEL

CARRIER-BEARING, WHEEL

23 920 ₽
16

5334820 SHAFT-BEARING CARRIER, WHEEL

SHAFT-BEARING CARRIER, WHEEL

4 370 ₽
17

7518562 BOLT

BOLT

1 870 ₽
18

1542192 CONTROL ARM, LOWER ASSY (RIGHT) (INCL. 2, 4, 5, 6, 14)

CONTROL ARM, LOWER ASSY (RIGHT) (INCL. 2, 4, 5, 6, 14)

58 240 ₽
19

7515111 SCREW

SCREW

1 250 ₽
20

5436523-070 SHIELD-CONTROL ARM (RIGHT/BLACK)

SHIELD-CONTROL ARM (RIGHT/BLACK)

5 620 ₽
21

7518561 BOLT

BOLT

1 000 ₽
22

5334896 SHAFT-CONTROL ARM (INNER/FRONT)

SHAFT-CONTROL ARM (INNER/FRONT)

2 500 ₽
23

5436522-070 SHIELD-CONTROL ARM (LEFT/BLACK)

SHIELD-CONTROL ARM (LEFT/BLACK)

5 620 ₽
24

1542191 CONTROL ARM, LOWER ASSY (LEFT) (INCL. 2, 4, 5, 6, 14)

CONTROL ARM, LOWER ASSY (LEFT) (INCL. 2, 4, 5, 6, 14)

58 240 ₽
25

1542189 CONTROL ARM, UPPER ASSY (LEFT) (INCL. 2, 4, 5, 6)

CONTROL ARM, UPPER ASSY (LEFT) (INCL. 2, 4, 5, 6)

0 ₽
26

7547362 CONTROL ARM (IF BUILT AFTER 1/23/06)

CONTROL ARM (IF BUILT AFTER 1/23/06)

340 ₽
