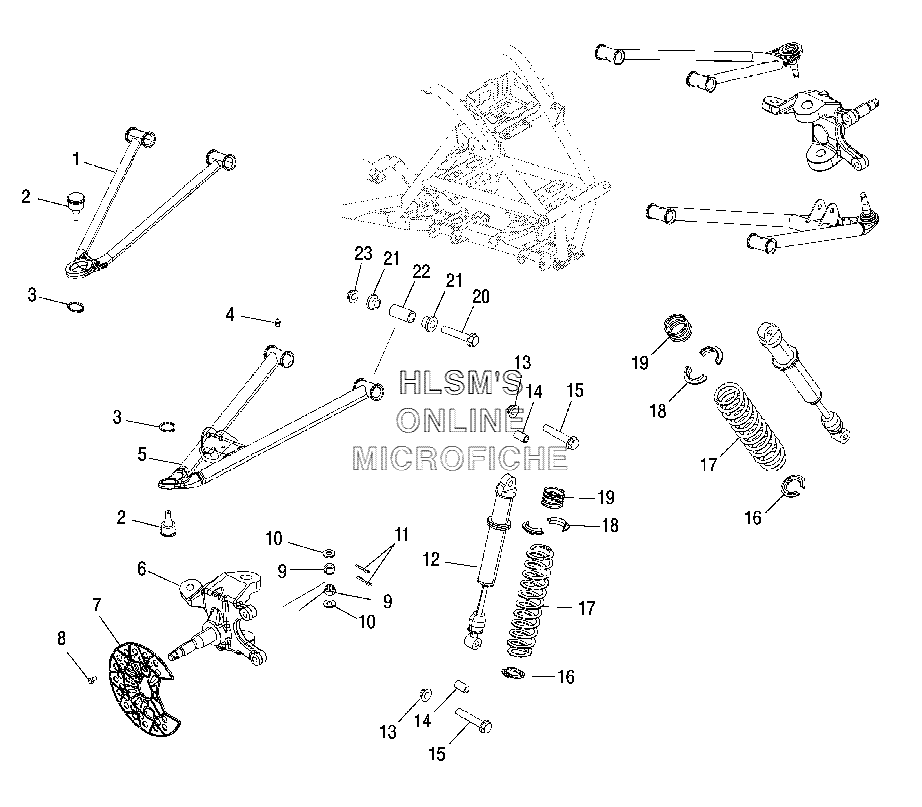

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris Outlaw (A06GP50AA) - 2006 года выпуска
-
№АртикулНазвание
-
11015077-385 WELD-A-ARM, UPPER (LEFT/SILVER) (IF BUILT BEFORE 4/03/06)WELD-A-ARM, UPPER (LEFT/SILVER) (IF BUILT BEFORE 4/03/06)
-
11015078-385 WELD-A-ARM, UPPER (RIGHT/SILVER) (IF BUILT AFTER 4/03/06)WELD-A-ARM, UPPER (RIGHT/SILVER) (IF BUILT AFTER 4/03/06)
-
11015697-385 WELD-A-ARM (IF BUILT AFTER 4/03/06)WELD-A-ARM (IF BUILT AFTER 4/03/06)
-
11015698-385 WELD-A-ARM (IF BUILT AFTER 4/03/06)WELD-A-ARM (IF BUILT AFTER 4/03/06)
-
27061141 BALLJOINTBALLJOINT
-
37710533 RING-RETAINER, EXTERNALRING-RETAINER, EXTERNAL
-
47080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
51015075-385 WELD-A-ARM, LOWER (LEFT/SILVER)WELD-A-ARM, LOWER (LEFT/SILVER)
-
51015076-385 WELD- A-ARM, LOWER (RIGHT/SILVER)WELD- A-ARM, LOWER (RIGHT/SILVER)
-
61822877 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
61822878 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
75435727 GUARD-DISC (INNER)GUARD-DISC (INNER)
-
87518441 SCREWSCREW
-
97547336 NUTNUT
-
107556376 WASHERWASHER
-
117661205 PIN-COTTERPIN-COTTER
-
127043138 SHOCK-FOX FRONTSHOCK-FOX FRONT
-
137547333 NUTNUT
-
145334876 SLEEVE-SHOCKSLEEVE-SHOCK
-
157518559 BOLTBOLT
-
165630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
177043197-293 SPRING-COMP (INDY RED)SPRING-COMP (INDY RED)
-
185436643 SPACER-SPRING, NYLONSPACER-SPRING, NYLON
-
197043227-293 SPRING-COMP (INDY RED)SPRING-COMP (INDY RED)
-
207518664 BOLTBOLT
-
215434575 BUSHING-A-ARMBUSHING-A-ARM
-
225135270 SHAFT-A-ARMSHAFT-A-ARM
-
237547333 NUTNUT
