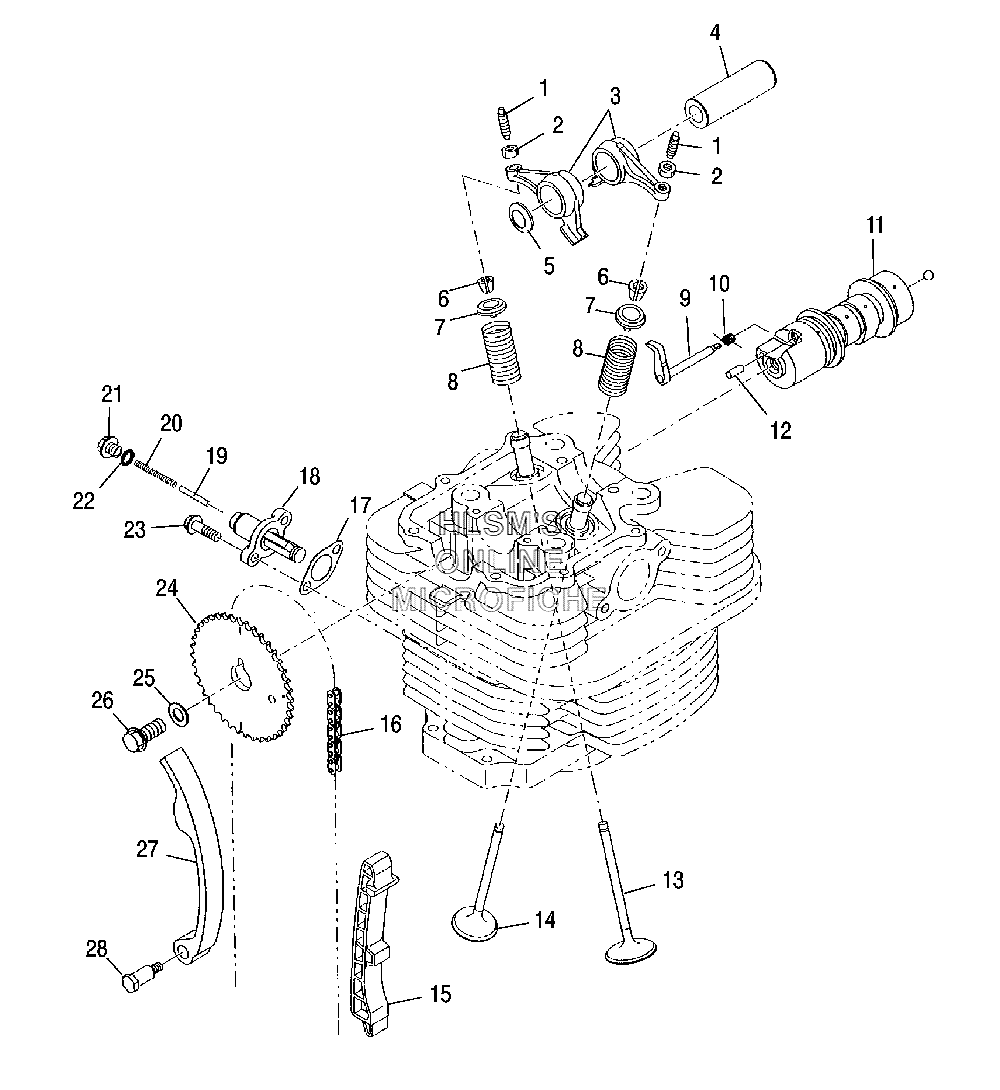

CAMSHAFT W/ VALVE ASSY. для Polaris Trail Boss 330 (A06CA32AA) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
13084911 SCREW, ADJUSTINGSCREW, ADJUSTING
-
23084912 NUTNUT
-
33084910 ROCKER ARM ASSY, INTAKE (INCL. 1-3)ROCKER ARM ASSY, INTAKE (INCL. 1-3)
-
43087053 SHAFT-ROCKERSHAFT-ROCKER
-
53085836 WASHER-WAVEWASHER-WAVE
-
63084908 COLLET, VALVECOLLET, VALVE
-
73087203 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
83087248 SPRING, VALVESPRING, VALVE
-
93086439 LEVER, RELEASE ASSYLEVER, RELEASE ASSY
-
103086804 SPRING-RETURNSPRING-RETURN
-
113087247 CAMSHAFT ASSY (INCL. 9-12)CAMSHAFT ASSY (INCL. 9-12)
-
123084899 PIN, DOWELPIN, DOWEL
-
133085778 VALVE, INTAKEVALVE, INTAKE
-
143086441 VALVE-EXHAUSTVALVE-EXHAUST
-
153086445 GUIDE-CHAINGUIDE-CHAIN
-
163086444 CHAIN-TIMINGCHAIN-TIMING
-
173086448 GASKET-TENSIONERGASKET-TENSIONER
-
183086493 TENSIONER, ASSY. (INCL. 18-22)TENSIONER, ASSY. (INCL. 18-22)
-
193087132 PINPIN
-
203087131 SPRING, TENSIONERSPRING, TENSIONER
-
213087129 PLUGPLUG
-
223087130 GASKET, PLUGGASKET, PLUG
-
233083361 BOLT, FLANGEBOLT, FLANGE
-
243086443 SPROCKET 2SPROCKET 2
-
253087249 WASHERWASHER
-
263086449 BOLT, FLANGEBOLT, FLANGE
-
273086446 LEVER ASSYLEVER ASSY
-
283084924 BOLT, PIVOT, LEVER ASSYBOLT, PIVOT, LEVER ASSY
