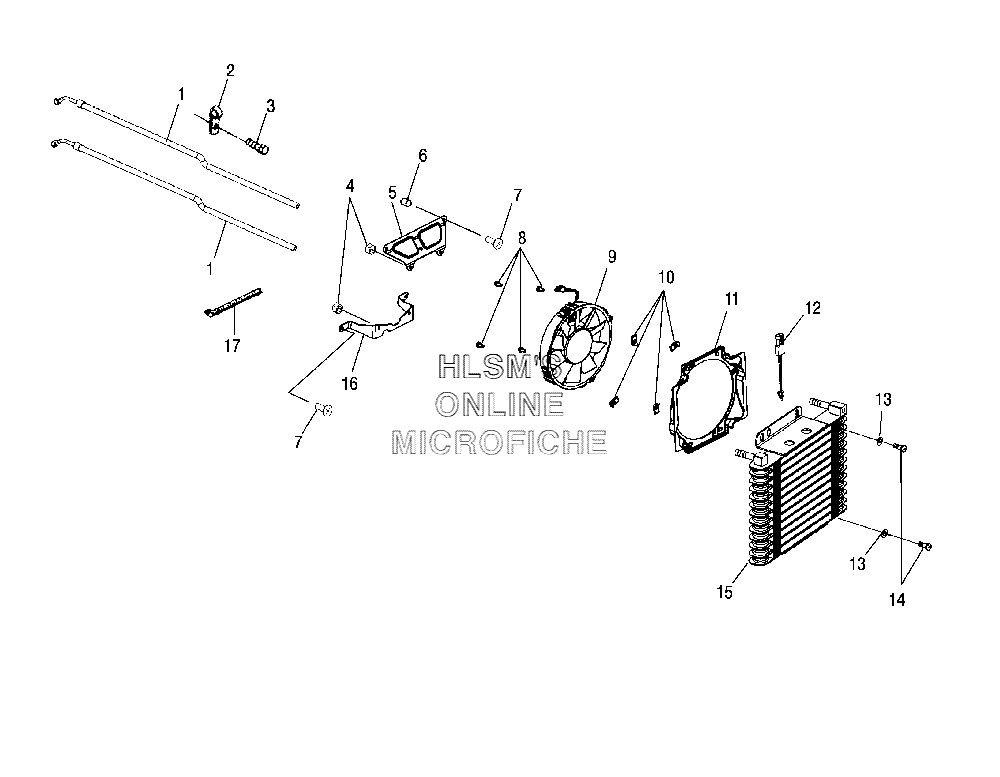

OIL COOLING SYSTEM для Polaris Trail Boss 330 (A06CA32AA) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
15412355 HOSE-COOLER, THREADEDHOSE-COOLER, THREADED
-
27080851 CLAMP-HOSE, 1.312 VINYL COATEDCLAMP-HOSE, 1.312 VINYL COATED
-
37512084 SCREWSCREW
-
47542122 NUT-NYLOKNUT-NYLOK
-
55245416-067 BRACKET-OIL COOLER, TOP (BLACK)BRACKET-OIL COOLER, TOP (BLACK)
-
67547069 NUTSERT, HEXNUTSERT, HEX
-
77512232 BOLTBOLT
-
87517659 SCREWSCREW
-
92410534 FAN MOTOR ASSY.FAN MOTOR ASSY.
-
107670111 CLIP, UCLIP, U
-
115433353 SHROUD, FANSHROUD, FAN
-
124010934 THERMISTERTHERMISTER
-
137558301 WASHER, FLATWASHER, FLAT
-
147512163 BOLTBOLT
-
151240204 OIL COOLER (INCL. 8-12)OIL COOLER (INCL. 8-12)
-
151240191 COOLER-OILCOOLER-OIL
-
165248139 BRACKET-LOWERBRACKET-LOWER
-
177080999 TIE-CABLE, PRESS MOUNT (BLACK)TIE-CABLE, PRESS MOUNT (BLACK)
