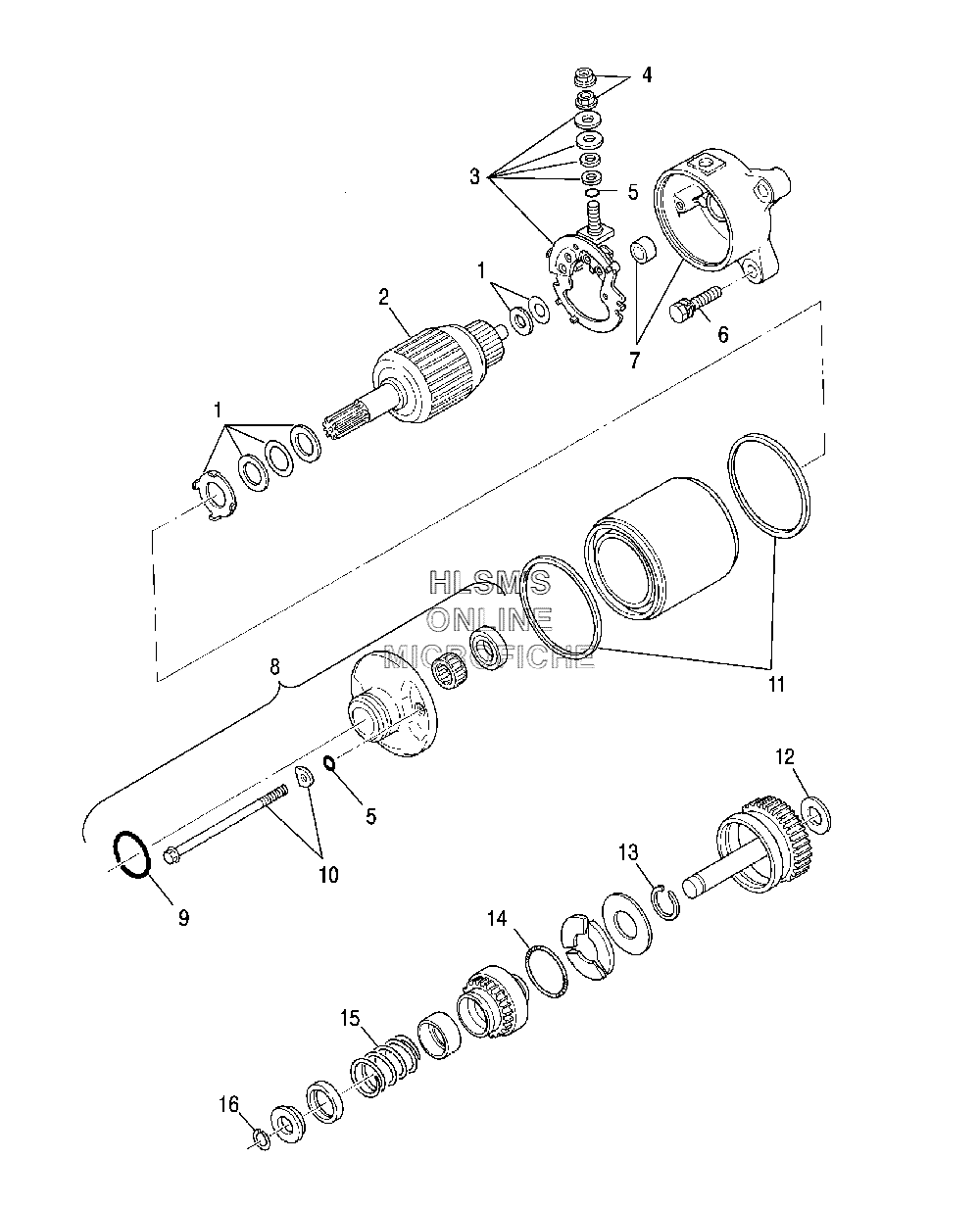

STARTING MOTOR для Polaris Trail Boss 330 (A06CA32AA) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
13084982 WASHER SETWASHER SET
-
23085353 ARMATURE ASSYARMATURE ASSY
-
33088169 CARBON BRUSH SETCARBON BRUSH SET
-
43083649 NUT, FLANGENUT, FLANGE
-
53084408 O-RINGO-RING
-
63082038 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
73085034 COVER, REAR ASSYCOVER, REAR ASSY
-
83085033 BRACKET ASSY, FRONT (INCL. 9)BRACKET ASSY, FRONT (INCL. 9)
-
93240114 O-RINGO-RING
-
103084983 BOLT ASSY. (INCL. 5)BOLT ASSY. (INCL. 5)
-
113084405 RING, RUBBERRING, RUBBER
-
127555908 WASHERWASHER
-
133084412 CLIPCLIP
-
143084411 SPRING, WEIGHTSPRING, WEIGHT
-
153084410 SPRING, RETURNSPRING, RETURN
-
163084409 CLIPCLIP
-
-3084981 MOTOR, STARTING ASSY (INCL. 1-5, 7-11)MOTOR, STARTING ASSY (INCL. 1-5, 7-11)
-
-3087030 GEAR SHAFT ASSY (INCL. 13-16)GEAR SHAFT ASSY (INCL. 13-16)
