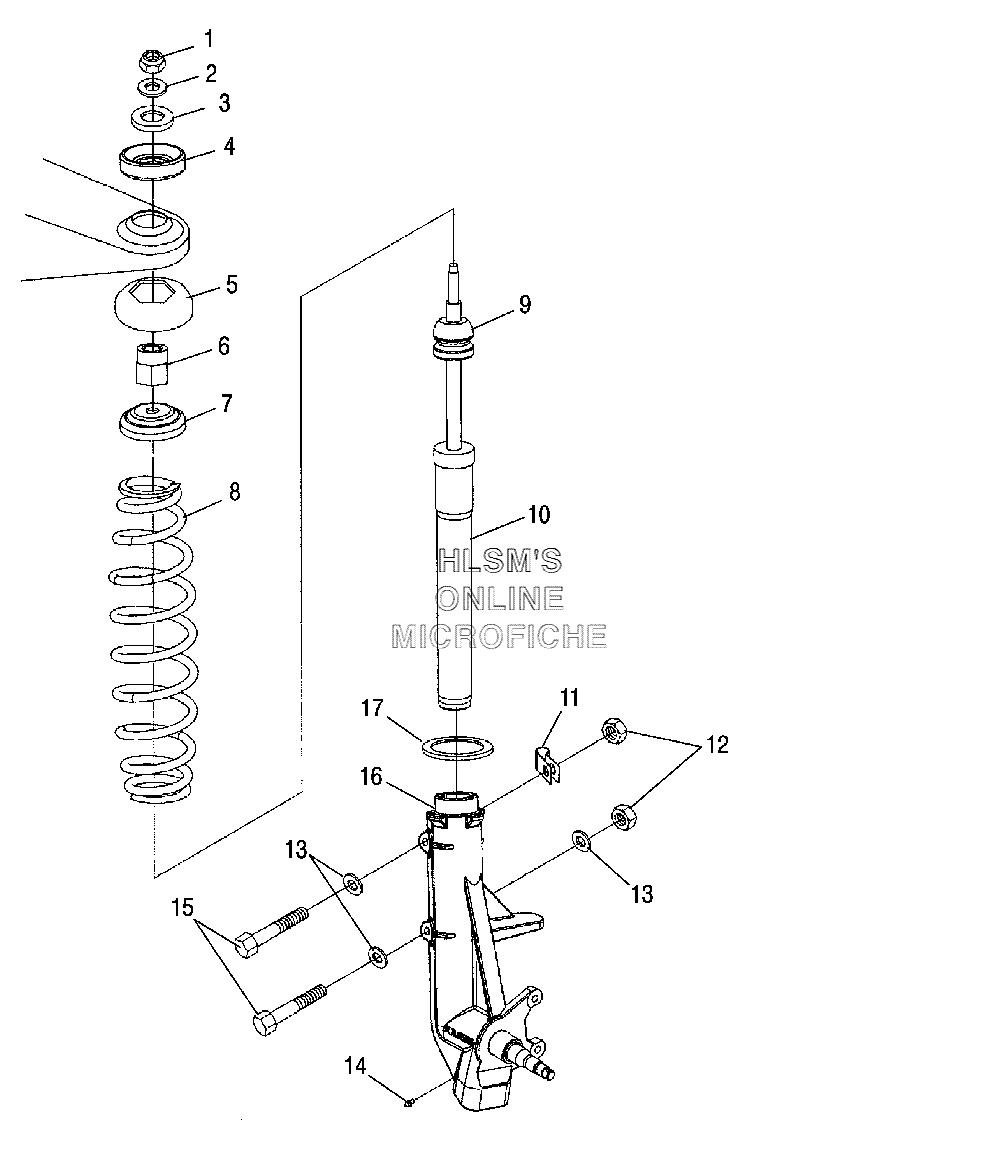

SUSPENSION - FRONT STRUT для Polaris Trail Boss 330 (A06CA32AA) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT, BALL (TOP)PIVOT, BALL (TOP)
-
55432871 PIVOT, BALL (BOTTOM)PIVOT, BALL (BOTTOM)
-
65132062 SPACERSPACER
-
75243364 RETAINER-SPRINGRETAINER-SPRING
-
87041850-385 SPRING-COMP (SILVER)SPRING-COMP (SILVER)
-
95412665 BUMPER (17.8MM ID)BUMPER (17.8MM ID)
-
107041761 STRUT-FRONTSTRUT-FRONT
-
117080367 CLAMP, CABLECLAMP, CABLE
-
127542324 NUT, NYLOKNUT, NYLOK
-
137558402 WASHER, FLATWASHER, FLAT
-
147080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
157515339 BOLTBOLT
-
165134133 SUPPORT-STRUT/SPINDLE (LEFT)SUPPORT-STRUT/SPINDLE (LEFT)
-
165134134 SUPPORT-STRUT/SPINDLE (RIGHT)SUPPORT-STRUT/SPINDLE (RIGHT)
-
175211115 WASHERWASHER
