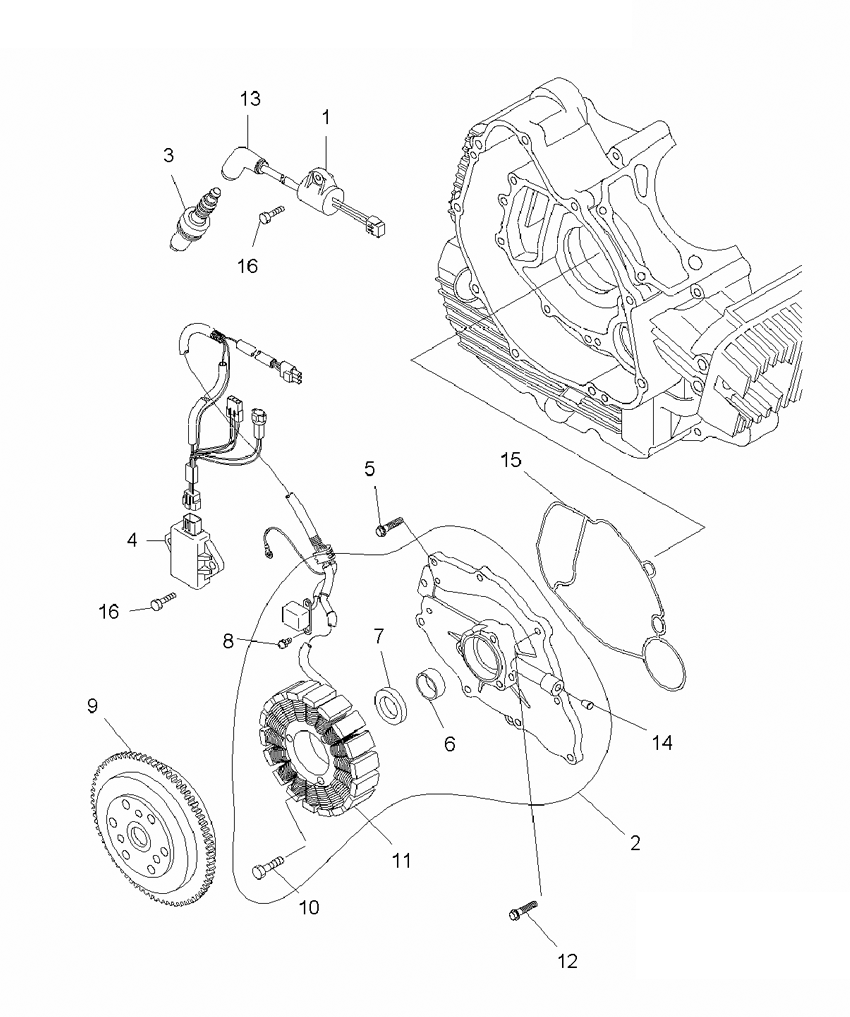

IGNITION SYSTEM для Polaris HAWKEYE 2X4 (LB27AA) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
13089860 ASM-IGNITION COIL [INCL. 13]ASM-IGNITION COIL [INCL. 13]
-
13089910 COIL, IGNITIONCOIL, IGNITION
-
23089852 ASM-PLATE [INCL. 6-8,10,11,14]ASM-PLATE [INCL. 6-8,10,11,14]
-
23089854 PLATE-COMPLETE [INCL. 6-8,10,14]PLATE-COMPLETE [INCL. 6-8,10,14]
-
33021759 SPARK PLUG-CR8EB, NGKSPARK PLUG-CR8EB, NGK
-
43089978 CDICDI
-
53087150 BOLT-FLANGEBOLT-FLANGE
-
63089855 BEARING-METALBEARING-METAL
-
73084973 SEAL, OILSEAL, OIL
-
83084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
93089974 FLYWHEEL-W/RING GEARFLYWHEEL-W/RING GEAR
-
103089989 BOLTBOLT
-
113089853 STATOR-COMPLETESTATOR-COMPLETE
-
123089801 BOLT-FLANGEBOLT-FLANGE
-
133089861 CAP-SPARK PLUGCAP-SPARK PLUG
-
143089992 PLUGPLUG
-
153089858 O-RINGO-RING
-
167512024 SCREWSCREW
