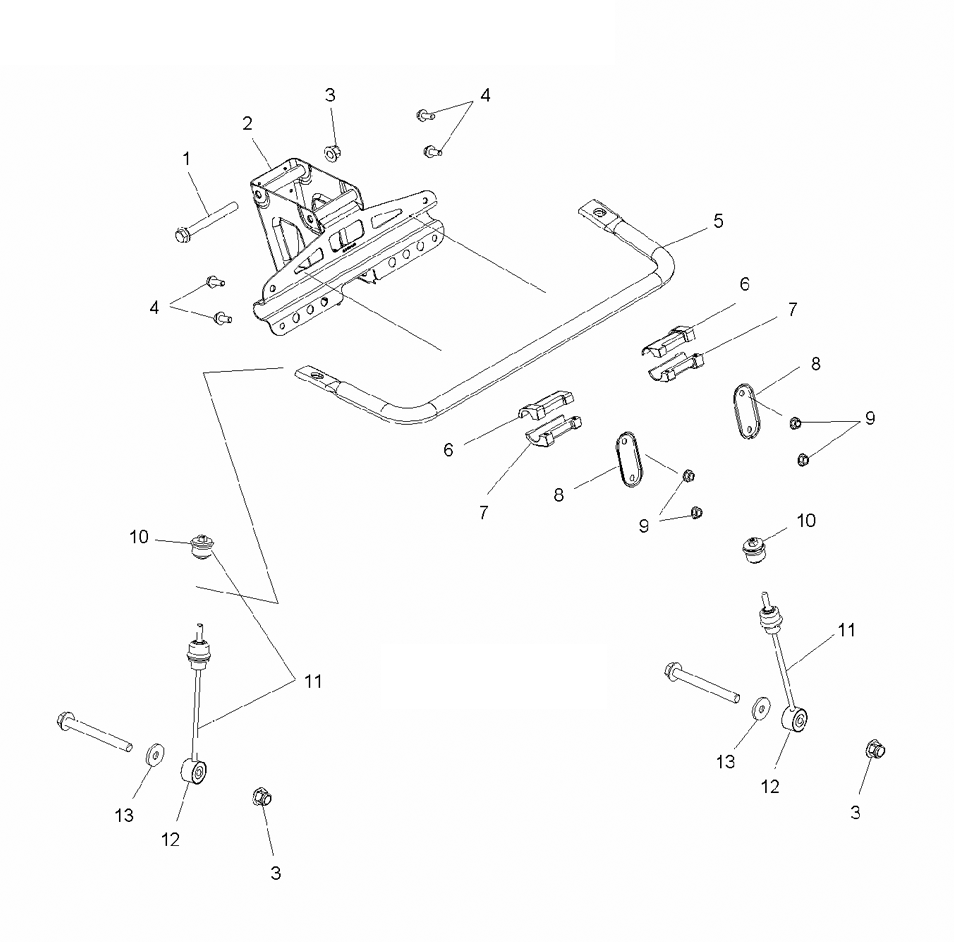

SUSPENSION - TORSION BAR для Polaris HAWKEYE 2X4 (LB27AA) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
17518526 BOLT-M10X1.5X115, HX HD FLGBOLT-M10X1.5X115, HX HD FLG
-
21015187-067 WELD-MOUNT, STABILIZER, BLACKWELD-MOUNT, STABILIZER, BLACK
-
37547313 NUT-M10X1.5, HXFLG, NYLON INSNUT-M10X1.5, HXFLG, NYLON INS
-
47518702 BOLT-M8X1.25X20, HXHDFLGBOLT-M8X1.25X20, HXHDFLG
-
55335197-067 BAR-STABLZR, 3/4''OD, FLATEND, BLACKBAR-STABLZR, 3/4''OD, FLATEND, BLACK
-
65436343 BUSHING-STABILIZERBUSHING-STABILIZER
-
75436344 BUSHING-TORSION BARBUSHING-TORSION BAR
-
85249464 PLATE-RETAINERPLATE-RETAINER
-
97547317 NUT-M8X1.25, HXFLG, NYLON INSNUT-M8X1.25, HXFLG, NYLON INS
-
105413295 BUSHING-LNKG TORBAR, DURO80, ITWBUSHING-LNKG TORBAR, DURO80, ITW
-
115135941 LINKAGE-BAR, TORSION, 210MM, ITWLINKAGE-BAR, TORSION, 210MM, ITW
-
137555852 WASHER, FLATWASHER, FLAT
