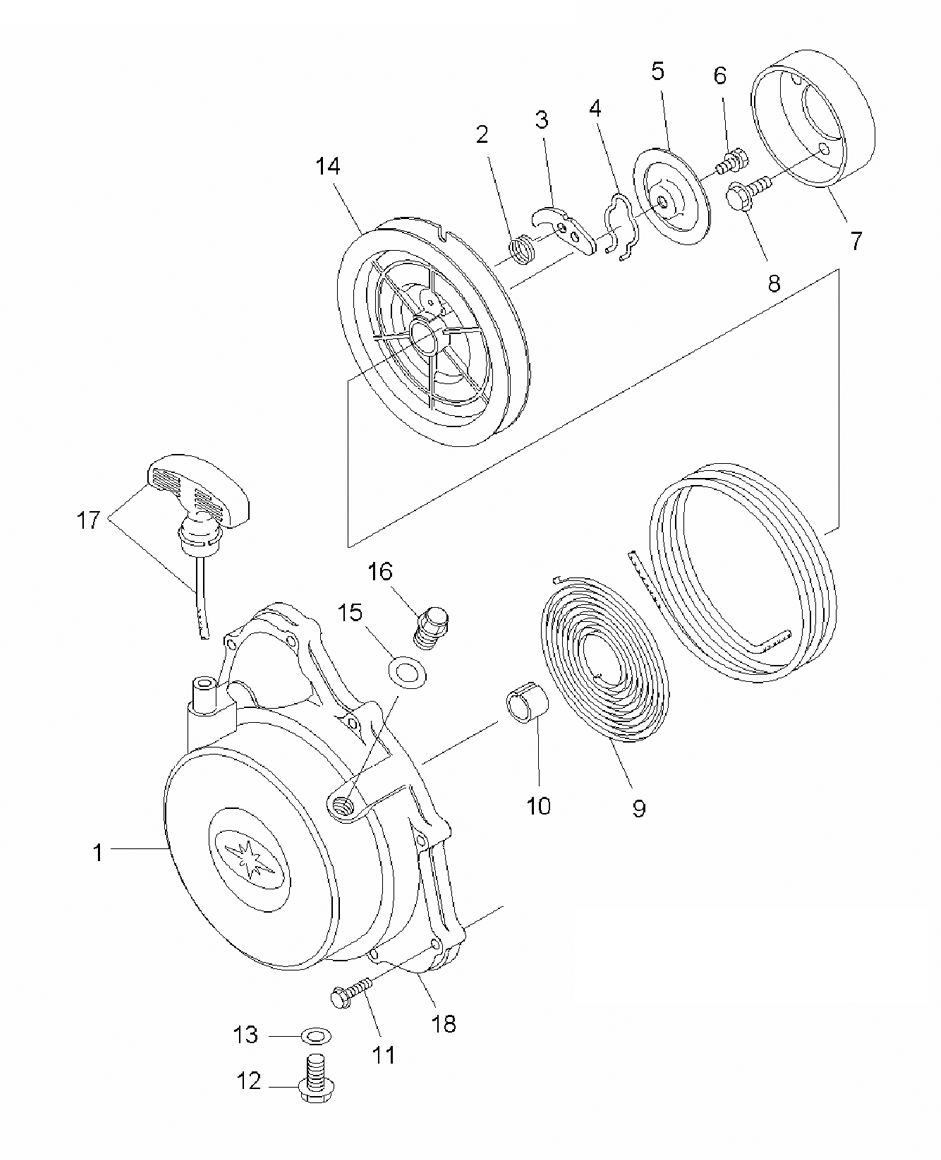

STARTER - RECOIL для Polaris HAWKEYE 2X4 (LB27AA) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
13089840 ASM-RECOIL STARTER [INCL. 2-7,9,10,17,18]ASM-RECOIL STARTER [INCL. 2-7,9,10,17,18]
-
23083463 SPRING, RETURNSPRING, RETURN
-
33083378 RATCHETRATCHET
-
43083379 SPRING, FRICTIONSPRING, FRICTION
-
53089842 PLATE-FRICTIONPLATE-FRICTION
-
63089843 BOLT AND WASHERBOLT AND WASHER
-
73089844 PULLEY-STARTERPULLEY-STARTER
-
83089846 BOLT-FLANGEBOLT-FLANGE
-
93083185 SPRING, SPIRALSPRING, SPIRAL
-
103084750 BUSHINGBUSHING
-
113088064 BOLT, FLANGEBOLT, FLANGE
-
123089845 BOLT-FLANGEBOLT-FLANGE
-
137555998 WASHER, FLATWASHER, FLAT
-
143084822 ASM., REELASM., REEL
-
153082956 GASKETGASKET
-
163086749 PLUGPLUG
-
173085083 ROPE ASM [INCL. ROPE AND HANDLE]ROPE ASM [INCL. ROPE AND HANDLE]
-
183089841 CASE-STARTER COMPLETECASE-STARTER COMPLETE
