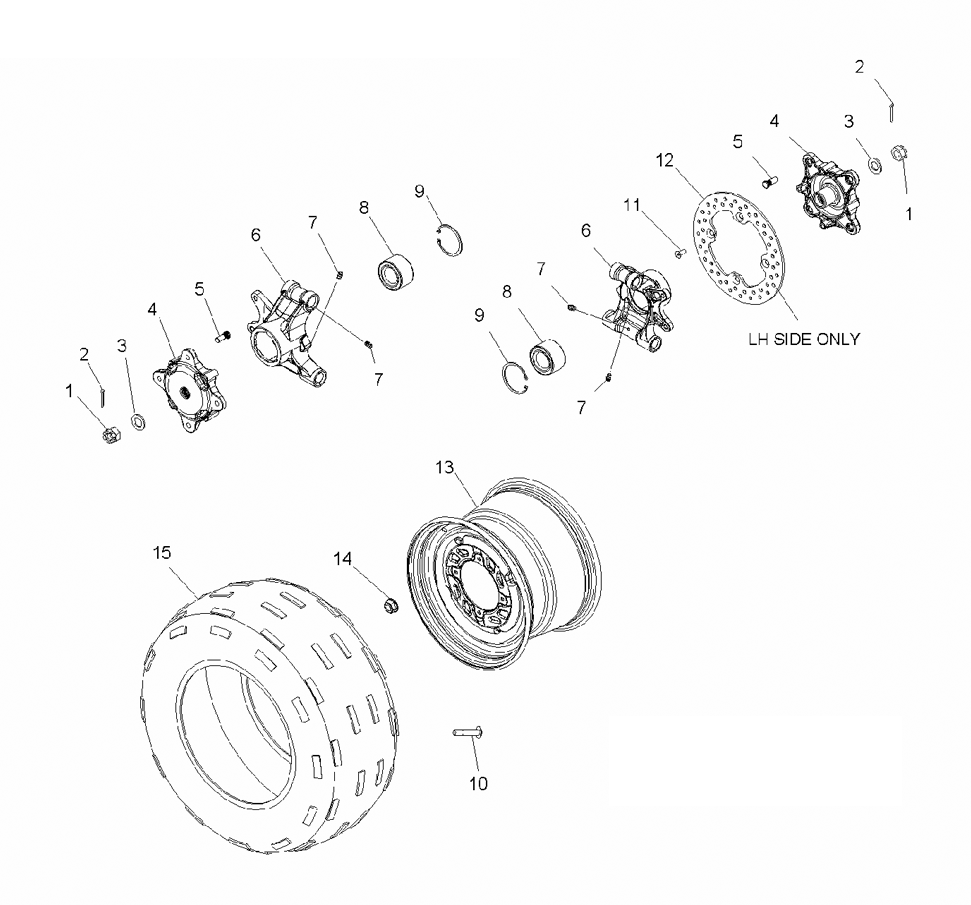

WHEEL - REAR для Polaris HAWKEYE 2X4 (LB27AA) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
17547337 NUT-M18X1.5, CASTLE, ZINC/YELLOWNUT-M18X1.5, CASTLE, ZINC/YELLOW
-
27661404 PIN, COTTERPIN, COTTER
-
37555796 WASHER, CONEWASHER, CONE
-
45135546 HUB-REAR, MACH LANHUB-REAR, MACH LAN
-
57515513 STUDSTUD
-
65135671 CARRIER-BEARING, LEFT HAND, RR (MACH)CARRIER-BEARING, LEFT HAND, RR (MACH)
-
77080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
83514634 BEARING-WHEEL, 35X64X37MMBEARING-WHEEL, 35X64X37MM
-
97710507 RING, RET., 2.500 INTERNALRING, RET., 2.500 INTERNAL
-
101525017 VALVE, RIMVALVE, RIM
-
117518451 BOLT-M8X1025X20, HSCOK, CSNK, PCHBOLT-M8X1025X20, HSCOK, CSNK, PCH
-
125248213 DISC-BRAKE, REARDISC-BRAKE, REAR
-
131520713-486 WELD-RIM, REAR, 12X8, NEW RIM SLVWELD-RIM, REAR, 12X8, NEW RIM SLV
-
147547237 NUT-FLANGE, TWO PIECE, 3/8-24NUT-FLANGE, TWO PIECE, 3/8-24
-
155413077 TIRE-REAR, 22X10-12, NHSTIRE-REAR, 22X10-12, NHS
