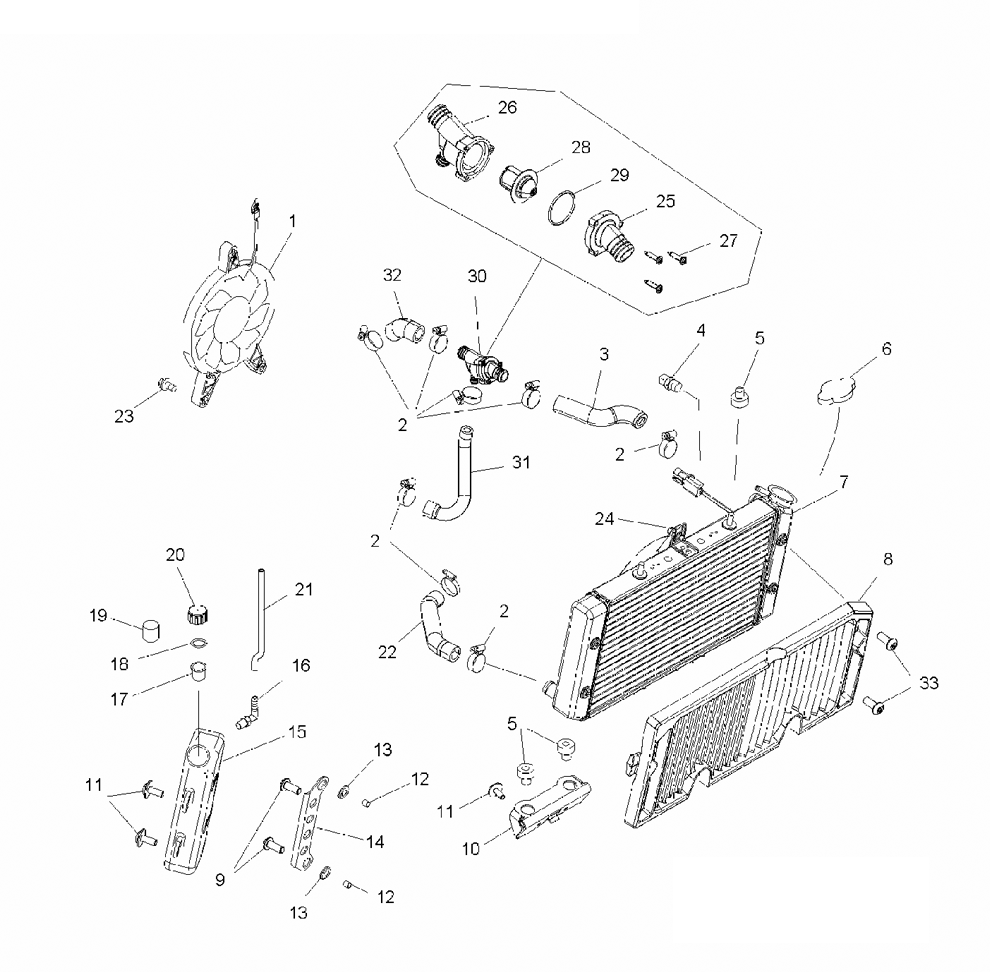

COOLING SYSTEM для Polaris OUTLAW 450 S (GJ45AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
12520719 ASM-FAN AND MOTORASM-FAN AND MOTOR
-
27080696 CLAMP, HOSE, 1.25, WORM DRIVECLAMP, HOSE, 1.25, WORM DRIVE
-
35413184 HOSE-RADIATOR, INLETHOSE-RADIATOR, INLET
-
44011771 SENSOR-THERMAL, DUAL TEMPSENSOR-THERMAL, DUAL TEMP
-
55410584 BUSHING-MOUNT, LOWER RADIATORBUSHING-MOUNT, LOWER RADIATOR
-
61240325 CAP-PRESSURE, 20 PSICAP-PRESSURE, 20 PSI
-
71240302 RADIATORRADIATOR
-
85436136 SCREEN-RADIATORSCREEN-RADIATOR
-
97518656 BOLT-M6X1.0X15, PH/TX-OLIVE DBOLT-M6X1.0X15, PH/TX-OLIVE D
-
105250821-458 BRKT-RADIATOR MOUNT, LOWER, M BKBRKT-RADIATOR MOUNT, LOWER, M BK
-
117512084 SCREWSCREW
-
125333796 SPACERSPACER
-
135410437 GROMMETGROMMET
-
145249162 BRKT-SURGE TANKBRKT-SURGE TANK
-
155434856 TANK-SURGETANK-SURGE
-
167052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
175433774 CAP, PLUG9X(GRN), FLEX TEMPCAP, PLUG9X(GRN), FLEX TEMP
-
185810279 GASKETGASKET
-
195812988 FOAM-CAP, SURGE TANKFOAM-CAP, SURGE TANK
-
205430743 CAP, OVERFLOWCAP, OVERFLOW
-
218450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
225413182 HOSE-RADIATOR, OUTLETHOSE-RADIATOR, OUTLET
-
237517975 BOLT-M6 HEX HDBOLT-M6 HEX HD
-
247547197 CLIP-''U'', M6.0X1.0CLIP-''U'', M6.0X1.0
-
277518590 SCR-TORX HD, M4.2X19, 0600129SCR-TORX HD, M4.2X19, 0600129
-
287052414 THERMOSTAT-70°C, 525 ATVTHERMOSTAT-70°C, 525 ATV
-
295413232 O-RING-32.0X2.0MMO-RING-32.0X2.0MM
-
301203449 ASM-THERMOSTAT, REMOTE, 525 ATV [INCL. 25-29]ASM-THERMOSTAT, REMOTE, 525 ATV [INCL. 25-29]
-
315413185 HOSE-BYPASSHOSE-BYPASS
-
325413183 HOSE-ENGINE OUTLETHOSE-ENGINE OUTLET
-
337518647 BOLT-M6X1.0X8, PH/TX, LX-OLIVE DBOLT-M6X1.0X8, PH/TX, LX-OLIVE D
