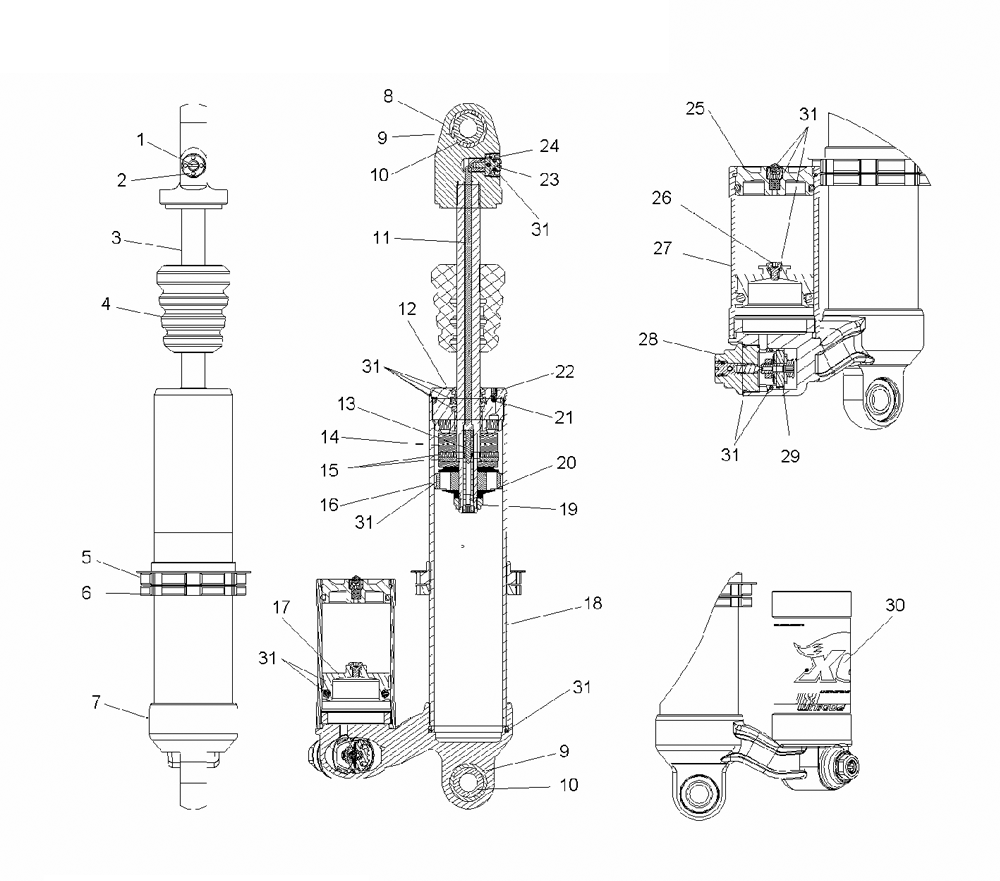

SUSPENSION - REAR SHOCK для Polaris OUTLAW 450 S (GJ45AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
7043331 SHOCK-REARSHOCK-REAR
-
11500641 KNOBKNOB
-
21500640 RETAINER-RD ADUSTRETAINER-RD ADUST
-
31500612 SHAFTSHAFT
-
41500577 BUMPER B/OBUMPER B/O
-
51500575 RING-PRELOADRING-PRELOAD
-
61500576 RING-PRELOAD, JAM NUTRING-PRELOAD, JAM NUT
-
71500745 BODY CAP-PIG BACK 206-02-096BODY CAP-PIG BACK 206-02-096
-
81500746 EYELET 213-01-118EYELET 213-01-118
-
91500523 RING, SNAP, (FOX SP)RING, SNAP, (FOX SP)
-
101500524 BEARING, SPHERICALBEARING, SPHERICAL
-
111500613 ROD-METERINGROD-METERING
-
121500578 ASM-BEARINGASM-BEARING
-
161500615 PISTON, .052PISTON, .052
-
171500743 PISTON, FLOATING 223-00-009PISTON, FLOATING 223-00-009
-
181500625 BODY-GOLD ZINCBODY-GOLD ZINC
-
191500472 NUT-LOCKNUT-LOCK
-
201500534 JET, .122X1.425 TLGJET, .122X1.425 TLG
-
211500071 BALL, (FOX)BALL, (FOX)
-
221500070 SCREWSCREW
-
231500638 BALLBALL
-
241500642 SCREW, ADJUSTSCREW, ADJUST
-
251500744 END CAP, RESERVOIR 226-00-041END CAP, RESERVOIR 226-00-041
-
261500161 SCREW/O-RING ASM.SCREW/O-RING ASM.
-
271500633 RESERVOIRRESERVOIR
-
281500617 CARTRIDGE-CD SINGLE ADJ.CARTRIDGE-CD SINGLE ADJ.
-
291500616 PISTON-CD CONC.ADJ.PISTON-CD CONC.ADJ.
-
311500742 KIT-REBUILD 803-00-128KIT-REBUILD 803-00-128
