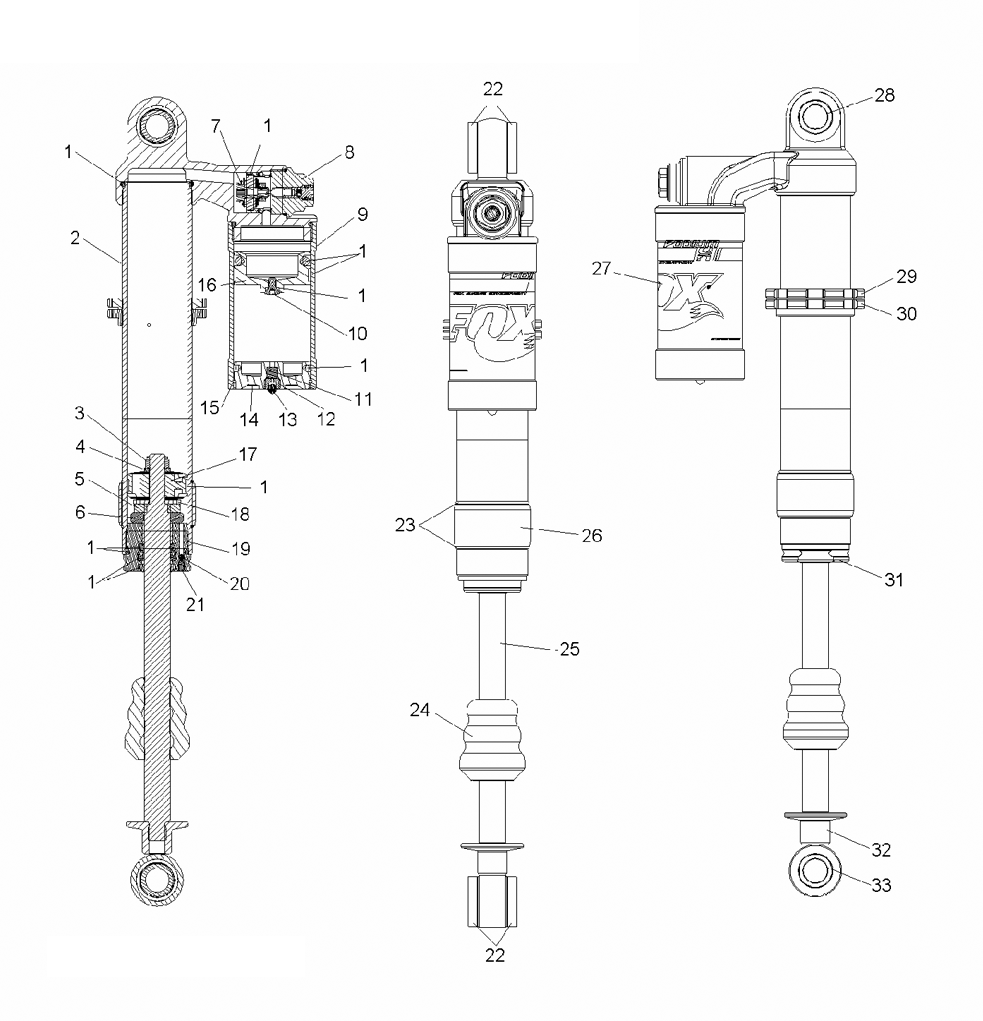

SUSPENSION - FRONT FOX SHOCK для Polaris OUTLAW 450 S (GJ45AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
-7043359 SHOCK-FRONTSHOCK-FRONT
-
11500742 KIT-REBUILD 803-00-128KIT-REBUILD 803-00-128
-
21500793 BODY 204-23-040BODY 204-23-040
-
31500016 NUT, LOCKNUT, LOCK
-
41500015 PLATE, BACKUPPLATE, BACKUP
-
51500074 BUMPER, RUBBERBUMPER, RUBBER
-
61500495 PISTON, .082 BLEEDPISTON, .082 BLEED
-
71500627 PISTON-CD CONC.ADJ.PISTON-CD CONC.ADJ.
-
81500617 CARTRIDGE-CD SINGLE ADJ.CARTRIDGE-CD SINGLE ADJ.
-
91500633 RESERVOIRRESERVOIR
-
101500161 SCREW/O-RING ASM.SCREW/O-RING ASM.
-
111500724 PELLET 010-00-000PELLET 010-00-000
-
121500723 SCREW-SET 010-00-017SCREW-SET 010-00-017
-
131500722 BALL 010-01-007BALL 010-01-007
-
141500744 END CAP, RESERVOIR 226-00-041END CAP, RESERVOIR 226-00-041
-
151500236 RING, RETAININGRING, RETAINING
-
161500743 PISTON, FLOATING 223-00-009PISTON, FLOATING 223-00-009
-
171500624 PISTON .098PISTON .098
-
181500017 PLATE, TOP OUTPLATE, TOP OUT
-
191500629 ASM-BEARINGASM-BEARING
-
201500071 BALL, (FOX)BALL, (FOX)
-
211500070 SCREWSCREW
-
221500103 BSG-EYELETBSG-EYELET
-
231500607 WIRE RINGWIRE RING
-
241500628 BUMPER, B/OBUMPER, B/O
-
251500794 SHAFT 229-07-025SHAFT 229-07-025
-
261500585 GUIDE-SPRINGGUIDE-SPRING
-
271500790 DECAL, FOXDECAL, FOX
-
281500497 SLEEVE, .57X.81X1.15SLEEVE, .57X.81X1.15
-
291500792 RING-PRELOAD, JAM NUTRING-PRELOAD, JAM NUT
-
301500791 RING-PRELOADRING-PRELOAD
-
311500750 BEARING HOUSING 203-04-003BEARING HOUSING 203-04-003
-
321500013 EYELETEYELET
-
331500747 SLEEVE 213-01-101SLEEVE 213-01-101
