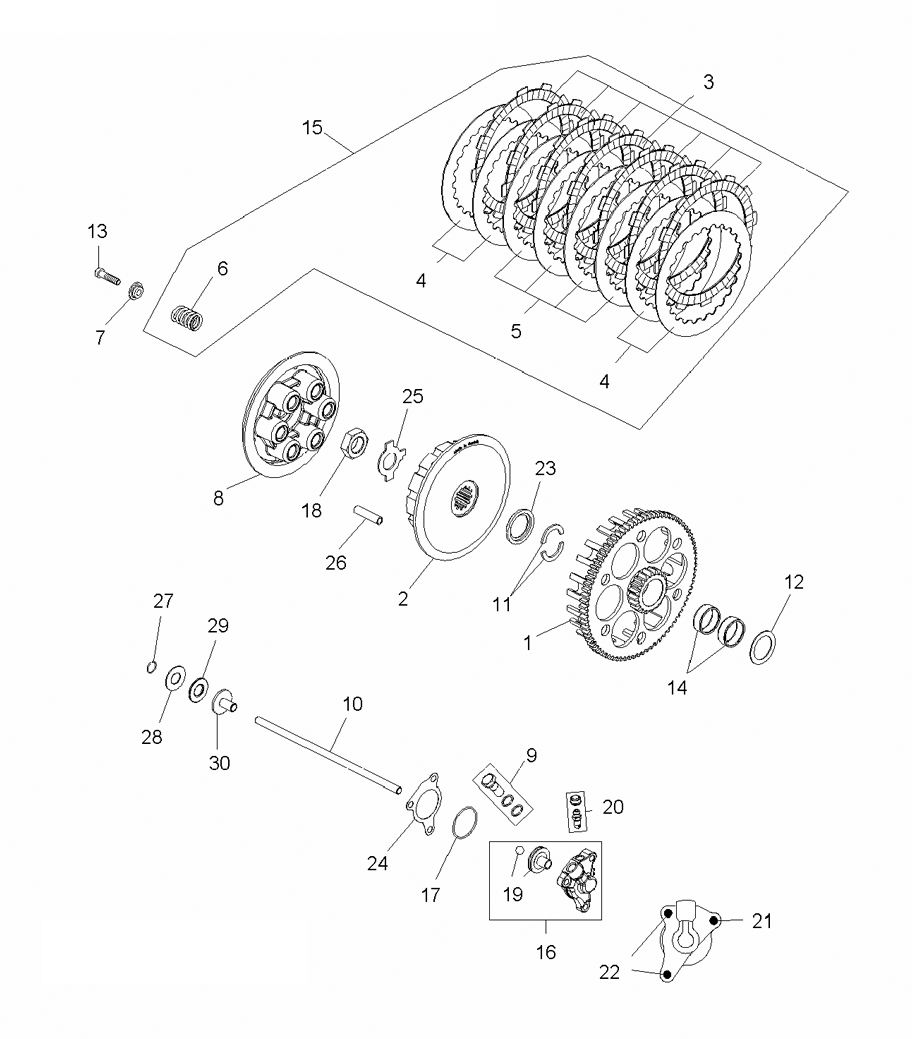

GEARCASE - CLUTCH для Polaris OUTLAW 450 S (GJ45AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
15135839 BASKET-CLUTCH, MACH, 78T GEARBASKET-CLUTCH, MACH, 78T GEAR
-
25135838 HUB-CLUTCH, INNER, 525 ATVHUB-CLUTCH, INNER, 525 ATV
-
33234460 DISK-CLUTCH, FRICTION 2.0MMDISK-CLUTCH, FRICTION 2.0MM
-
43234458 DISK-CLUTCH, METAL 1.0MMDISK-CLUTCH, METAL 1.0MM
-
53234459 DISK-CLUTCH, METAL 1.4MMDISK-CLUTCH, METAL 1.4MM
-
67043302 SPRING-CLUTCH, 2.5X43MM 525 ATVSPRING-CLUTCH, 2.5X43MM 525 ATV
-
77043301 RETAINER-SPRING 6.2X12X18X5.2RETAINER-SPRING 6.2X12X18X5.2
-
85135840 PLATE-PRESSURE W/OIL BORINGPLATE-PRESSURE W/OIL BORING
-
92203411 KIT-HYDCLUTCH BANJOBOLT 525 ATVKIT-HYDCLUTCH BANJOBOLT 525 ATV
-
103234461 PUSHROD-CLUTCH 201MM 525 ATVPUSHROD-CLUTCH 201MM 525 ATV
-
117710598 WASHER-HALFWASHER-HALF
-
127556410 WASHER-SUPPORT 25X25X1MMWASHER-SUPPORT 25X25X1MM
-
137518737 SCR-M6X25 SOCHD DIN6912SCR-M6X25 SOCHD DIN6912
-
143514580 BEARING-NEEDLE, 25X29X10MMBEARING-NEEDLE, 25X29X10MM
-
152203495 KIT-CLUTCH PLATES, SPRINGSKIT-CLUTCH PLATES, SPRINGS
-
162203413 KIT-HYDCLUTCH SLAVE CYL 525 ATVKIT-HYDCLUTCH SLAVE CYL 525 ATV
-
175413253 O-RING, 30.0X1.5MM NBR 70O-RING, 30.0X1.5MM NBR 70
-
187547379 NUT-HEX M18X1.5 DIN0936NUT-HEX M18X1.5 DIN0936
-
192203412 KIT-HYDCLUTCH PISTON 525 ATVKIT-HYDCLUTCH PISTON 525 ATV
-
207518794 SCR-HYDRAULIC BLEED, W/CAPSCR-HYDRAULIC BLEED, W/CAP
-
217518612 BOLT-M6X1.0X35, HXFLG/SH-OLV DBOLT-M6X1.0X35, HXFLG/SH-OLV D
-
227518723 SCR-M6X20 HX/FL 8MM HEADSCR-M6X20 HX/FL 8MM HEAD
-
237556409 WASHER-STEPPEDWASHER-STEPPED
-
245813171 GASKET-HYD SLAVE CYL, CLUTCHGASKET-HYD SLAVE CYL, CLUTCH
-
257547380 WASHER-LOCKTAB, CLUTCHWASHER-LOCKTAB, CLUTCH
-
263234457 SLEEVE-DRIVEN, INNER CLUTCH HUBSLEEVE-DRIVEN, INNER CLUTCH HUB
-
277710613 RING-SNAP, DIN7993-RW12RING-SNAP, DIN7993-RW12
-
287556444 WASHER-THRUST, 12X26X1MM, AS1226WASHER-THRUST, 12X26X1MM, AS1226
-
293514602 BEARING-THRUST, NEEDLE, AXK1226BEARING-THRUST, NEEDLE, AXK1226
-
301203521 CAP-CLUTCH ROD END, 125-380CAP-CLUTCH ROD END, 125-380
