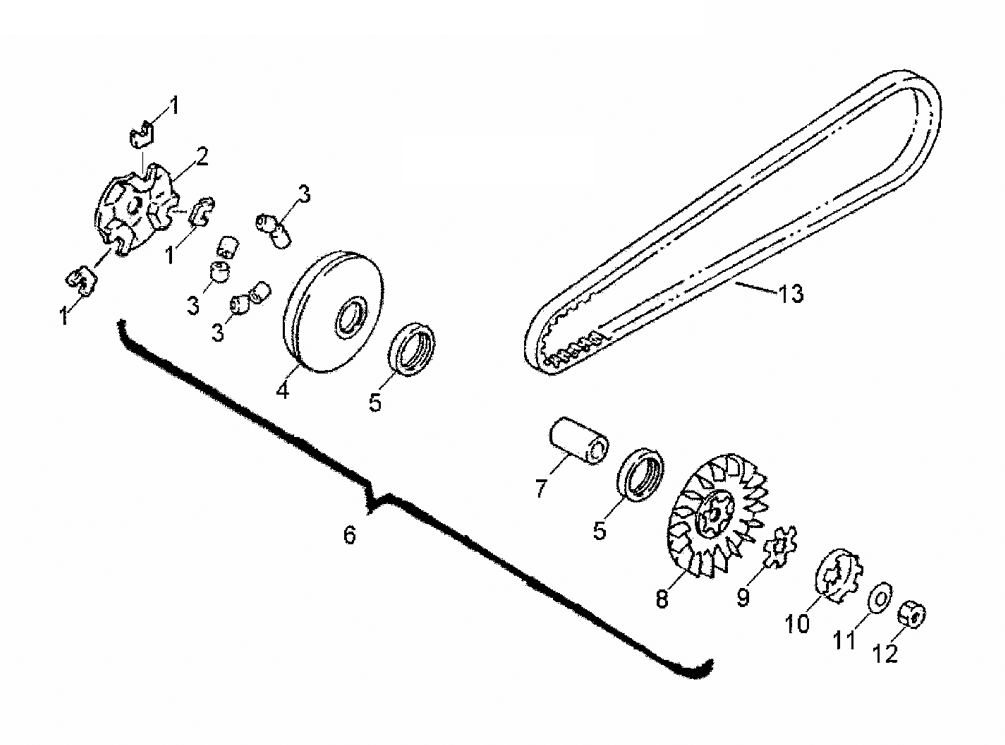

CLUTCH - PRIMARY для Polaris OUTLAW 50 (KA05AB) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
10453602 BUSHING-SLIDERBUSHING-SLIDER
-
20453603 PLATE-CAMPLATE-CAM
-
30453901 ROLLER-CLUTCH, PRED 50ROLLER-CLUTCH, PRED 50
-
40453605 WHEEL-SLOT, DRIVE CLUTCHWHEEL-SLOT, DRIVE CLUTCH
-
50453606 SEAL-OILSEAL-OIL
-
60453902 ASM-DRIVE CLUTCH, PRED 50 [INCL. 1-9]ASM-DRIVE CLUTCH, PRED 50 [INCL. 1-9]
-
70453607 BUSHING-DRIVE CLUTCHBUSHING-DRIVE CLUTCH
-
80453608 SHEAVE-MOVEABLESHEAVE-MOVEABLE
-
90453609 WASHER-CLAWWASHER-CLAW
-
100450245 CLUTCH-ONE WAY 22140-112-000CLUTCH-ONE WAY 22140-112-000
-
110453809 WASHER-SPRINGWASHER-SPRING
-
120450249 NUT-FLANGENUT-FLANGE
-
130453455 BELT-DRIVENBELT-DRIVEN
