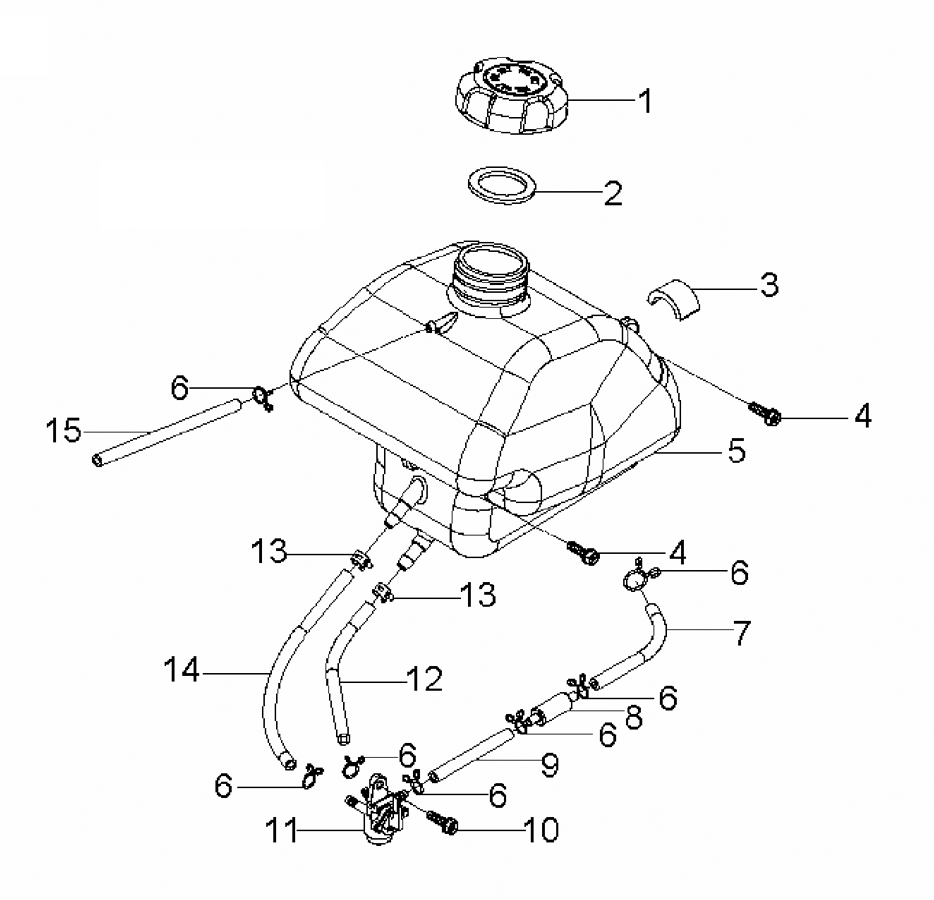

FUEL TANK W/HOSES для Polaris OUTLAW 50 (KA05AB) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
10453691 CAP-FUEL, OUTLAW [INCL. 2]CAP-FUEL, OUTLAW [INCL. 2]
-
20453692 GASKET-FUEL CAP, OUTLAWGASKET-FUEL CAP, OUTLAW
-
30450632 MAT, RUBBER, FUEL TANKMAT, RUBBER, FUEL TANK
-
40451035 BOLT, HEXBOLT, HEX
-
50453870 ASM-FUEL TANK, PRED 50ASM-FUEL TANK, PRED 50
-
60450054 CLIPCLIP
-
70454026-110 HOSE-FUEL, NON-PERM, 110MMHOSE-FUEL, NON-PERM, 110MM
-
80453695 FILTER-FUEL 65 MICRONFILTER-FUEL 65 MICRON
-
90454026-070 HOSE-FUEL, NON-PERM, 070MMHOSE-FUEL, NON-PERM, 070MM
-
100450701 BOLT-HEX WASHERBOLT-HEX WASHER
-
110450366 MANUAL FUEL CUP, ASM.MANUAL FUEL CUP, ASM.
-
120454119 HOSEHOSE
-
130450361 CLIPCLIP
-
140454120 HOSEHOSE
-
150454046 HOSE-VENT LINE, NEUTRONHOSE-VENT LINE, NEUTRON
