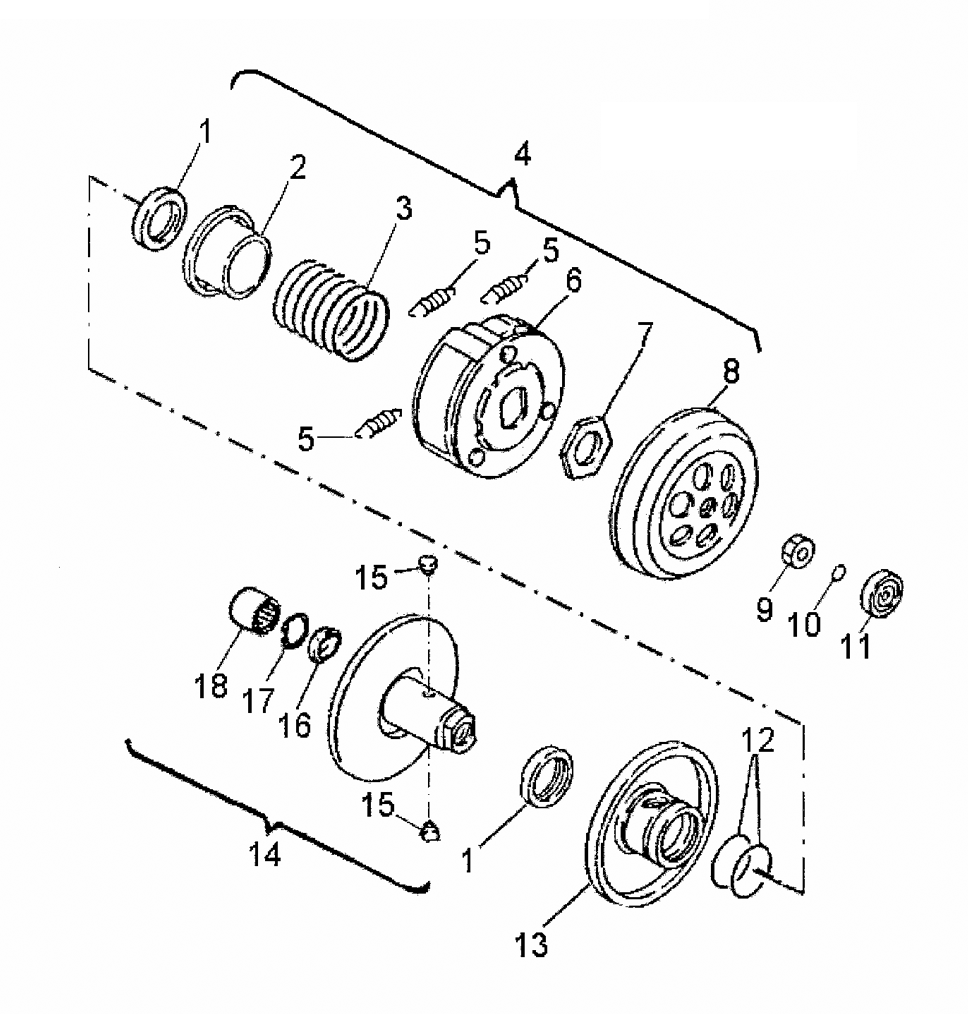

CLUTCH - SECONDARY для Polaris OUTLAW 50 (KA05AB) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
10450211 SEAL-OILSEAL-OIL
-
20453589 SEAL-COLLARSEAL-COLLAR
-
30453841 SPRING-COMPRESSION, CLUTCHSPRING-COMPRESSION, CLUTCH
-
40453842 ASM-CLUTCH, DRIVEN, PREDATOR 50 [INCL. 1-8]ASM-CLUTCH, DRIVEN, PREDATOR 50 [INCL. 1-8]
-
50453843 SPRING-WEIGHT, CLUTCH, PRED 50SPRING-WEIGHT, CLUTCH, PRED 50
-
60453592 CARRIER-CLUTCHCARRIER-CLUTCH
-
70453593 NUT-CLUTCH, DRIVENUT-CLUTCH, DRIVE
-
80453594 COVER-CLUTCH, DRIVECOVER-CLUTCH, DRIVE
-
90450224 NUT-HEXNUT-HEX
-
100450226 O-RINGO-RING
-
110450225 BEARINGBEARING
-
120453595 O'RING-OILO'RING-OIL
-
130453596 SHEAVE-MOVEABLESHEAVE-MOVEABLE
-
140453597 ASM-SHEAVE, DRIVEN [INCL. 15-18]ASM-SHEAVE, DRIVEN [INCL. 15-18]
-
150453598 PIN-GUIDE, DRIVE CLUTCHPIN-GUIDE, DRIVE CLUTCH
-
160453599 BEARING-DRIVE CLUTCHBEARING-DRIVE CLUTCH
-
170453600 CIRCLIPCIRCLIP
-
180453601 BEARING-NEEDLEBEARING-NEEDLE
