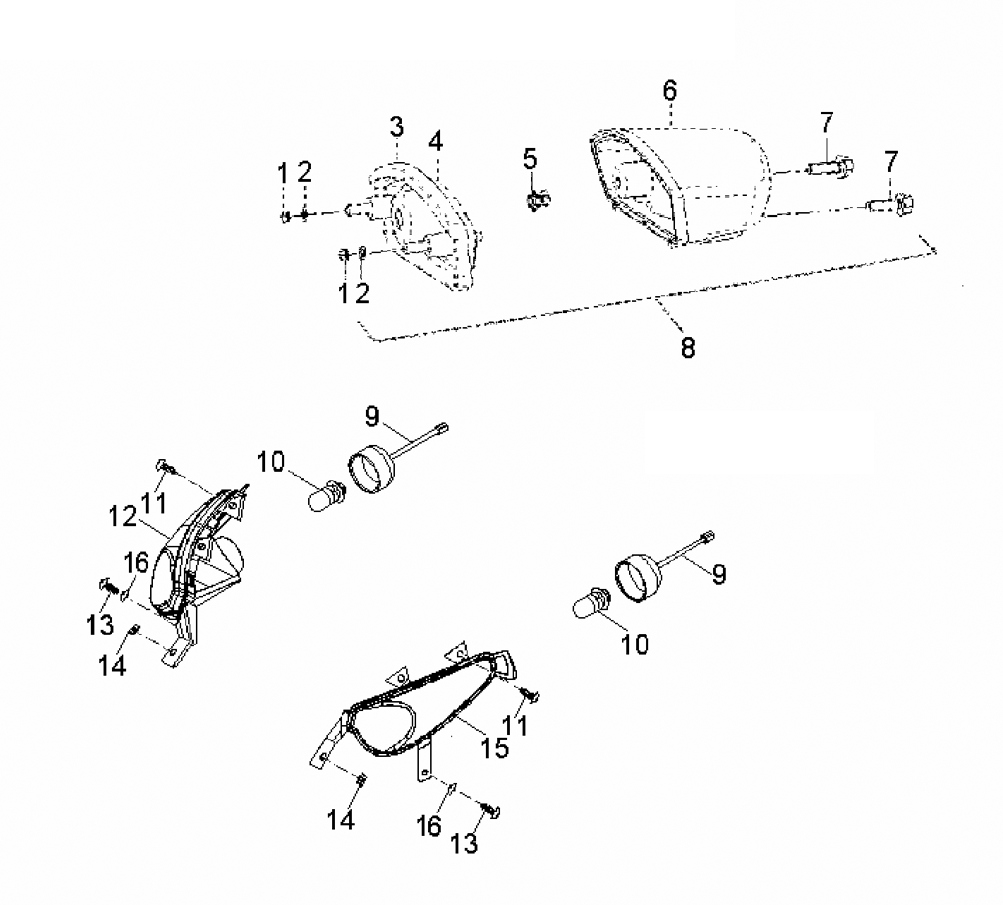

HEADLIGHT - TAIL LIGHT для Polaris OUTLAW 50 (KA05AB) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
10450880 NUT-FLG W/SERRNUT-FLG W/SERR
-
20450041 WASHER-PLAINWASHER-PLAIN
-
30451799 GASKET-TAIL LIGHTGASKET-TAIL LIGHT
-
40453483 SOCKET-TAILLIGHTSOCKET-TAILLIGHT
-
50452830 BULB-TAIL LIGHTBULB-TAIL LIGHT
-
60452995 LENS-TAIL LIGHTLENS-TAIL LIGHT
-
70451801 TAPPING SCREW-PHILLIPS, PANTAPPING SCREW-PHILLIPS, PAN
-
80452829 ASM-TAILLIGHT [INCL. 3-7]ASM-TAILLIGHT [INCL. 3-7]
-
90453892 SOCKET-HEADLIGHT, PRED 50SOCKET-HEADLIGHT, PRED 50
-
100453891 BULB-HEADLIGHT, PRED 50BULB-HEADLIGHT, PRED 50
-
110451803 SCREW-TAPPINGSCREW-TAPPING
-
120453890 LENS-HEADLIGHT, PRED 50, RIGHT HANDLENS-HEADLIGHT, PRED 50, RIGHT HAND
-
130451802 SCREW-TAPPING, 4MMSCREW-TAPPING, 4MM
-
140450752 U-NUTU-NUT
-
150453889 LENS-HEADLIGHT, PRED 50, LEFT HANDLENS-HEADLIGHT, PRED 50, LEFT HAND
-
160450710 WASHER-PLAINWASHER-PLAIN
