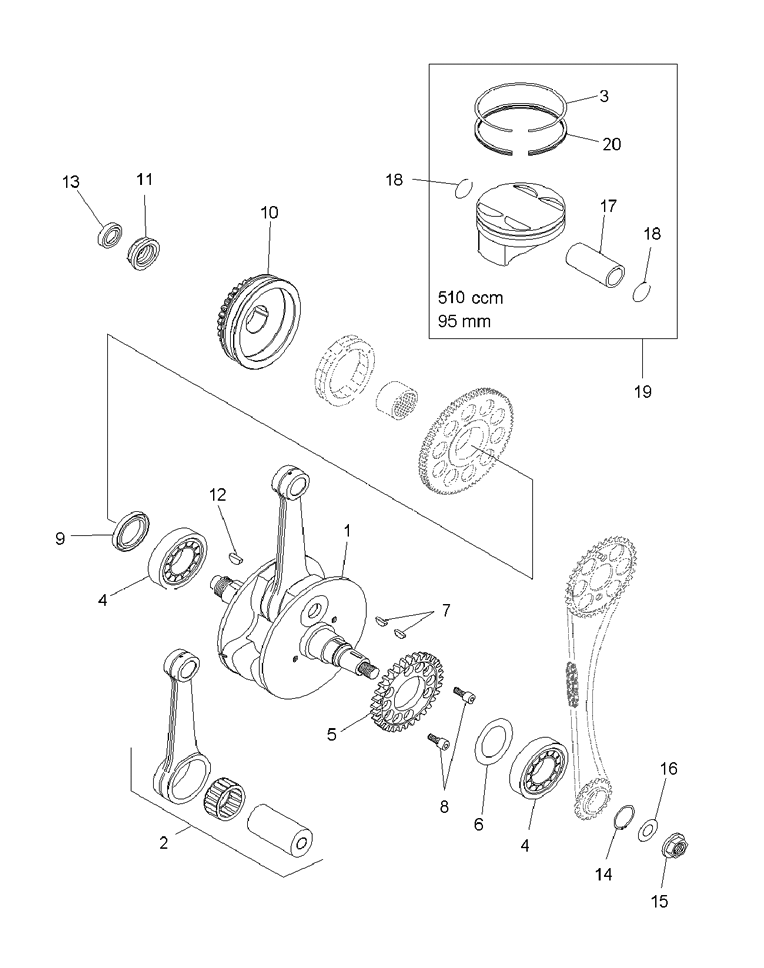

CRANKSHAFT W/ PISTON для Polaris OUTLAW 525 IRS (GP52AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
11203516 ASM-CRANKSHAFT,525ATVASM-CRANKSHAFT,525ATV
-
22203406 KIT-CONN ROD,525ATVKIT-CONN ROD,525ATV
-
33021874 RING-PISTON COMP 95/87.2X1.25RING-PISTON COMP 95/87.2X1.25
-
43514569 BEARING-CYLROLL NJ206 ET2XCS46BEARING-CYLROLL NJ206 ET2XCS46
-
56230359 GEAR-DRIVE BALANCE SHAFTGEAR-DRIVE BALANCE SHAFT
-
67556392 WASHER-THRUST 30.5X45X0.10MMWASHER-THRUST 30.5X45X0.10MM
-
67556393 WASHER-THRUST 30.5X45X0.15MMWASHER-THRUST 30.5X45X0.15MM
-
67556394 WASHER-THRUST 30.5X45X0.30MMWASHER-THRUST 30.5X45X0.30MM
-
77710593 KEY-WOODRUFF DIN6888 3X5X13MMKEY-WOODRUFF DIN6888 3X5X13MM
-
87518721 SCR-M6X16 SOCHD DIN7984 8.8SCR-M6X16 SOCHD DIN7984 8.8
-
95413245 SEAL-SHAFT,30X47X7MMSEAL-SHAFT,30X47X7MM
-
106230361 GEAR-PRIMARY 31T 525ATVGEAR-PRIMARY 31T 525ATV
-
117547378 NUT-HEX M20X1.5 PR.GR. LEFT HAND-THRDNUT-HEX M20X1.5 PR.GR. LEFT HAND-THRD
-
127710595 KEY-WOODRUFF HARDENED 5X6.5MMKEY-WOODRUFF HARDENED 5X6.5MM
-
135413244 SEAL-SHAFT,14X24X6MMSEAL-SHAFT,14X24X6MM
-
147710597 RING-SNAP DIN0471 25X1.2MMRING-SNAP DIN0471 25X1.2MM
-
157547381 NUT-M12X1 HX/FLNUT-M12X1 HX/FL
-
167556413 WASHER-SPRING DIN0137-B12WASHER-SPRING DIN0137-B12
-
173021872 PIN-PISTON,20X15.8/12X50MMPIN-PISTON,20X15.8/12X50MM
-
183021875 CIRCLIP-PISTON 20X1.5MMCIRCLIP-PISTON 20X1.5MM
-
192203407 KIT-PISTON 95MM SORT I (PISTON SORT MUST MATCH CYLINDER SORT)KIT-PISTON 95MM SORT I (PISTON SORT MUST MATCH CYLINDER SORT)
-
192203408 KIT-PISTON 95MM SORT II (PISTON SORT MUST MATCH CYLINDER SORT)KIT-PISTON 95MM SORT II (PISTON SORT MUST MATCH CYLINDER SORT)
-
203021873 RING-PISTON 95MM OIL CONTROLRING-PISTON 95MM OIL CONTROL
